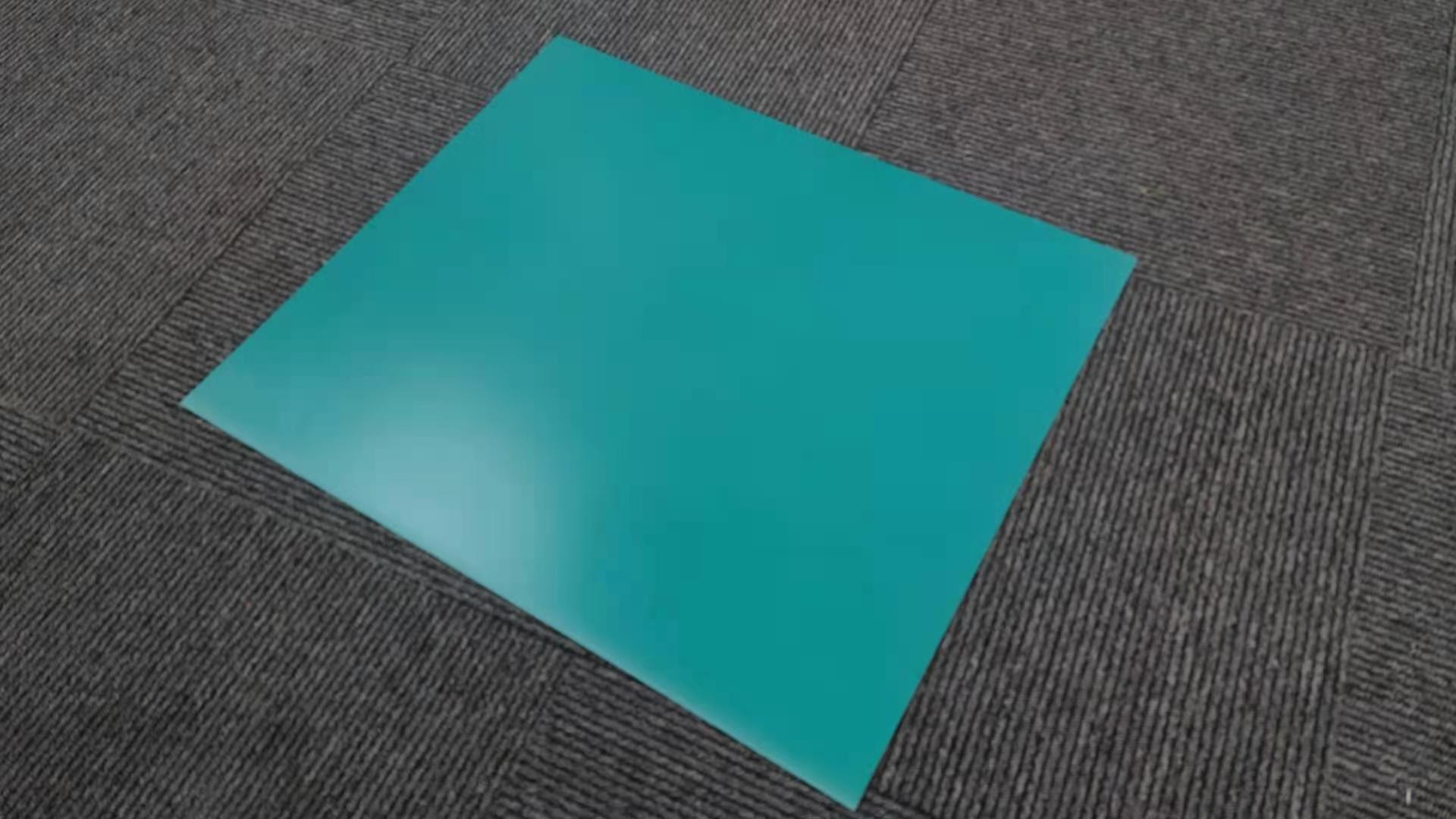

Conventional Aluminum Plate EcooGraphix Positive PS Printing Plate
EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
1) Uniform surface coating and high photosensitive speed.
2) High resolution and higher press run.
3) Precise half-tone dot reproduction.
4) Faster Exposure and good stability.
|Plate Type||Positive PS Plate/ Conventional Analog Plate|
|Application||Commercial and newspaper printing|
|Substrate||Electro chemically Grained and Anodized lithographic Aluminum|
|Aluminum alloy||Standard 1050 Alloy|
|Gauge||0.15, 0.20, 0.25, 0.30, 0.40 (mm)|
|Maximum short grain width||Maximum width 1280 mm|
|Length of Run||Unbaked: 50000 to 80,000 impressions
Baked: Over 100000 impressions
|Power of light||3000 - 5000 W|
|Exposure energy||80 - 180 mJ/cm²|
|Resolution||2 - 98% LPI 200|
|Photosensitive Wave Length||320 - 405nm|
|Processor||All the kind Brands or Manual|
|Developer||Any Positive plate developer or our own developer|
|Processing temperature||20 - 25°C|
|Developing time||20 - 30 sec|
|Storage and handling|
|Safelight||Handle under yellow safelight (UV free)|
|Shelf Life||12 months under recommended storage conditions|
|Packaging||Available in all standard formats, including bulk packaging options such as APL packaging|
|Storage and handling||
Stored in a cool and dry environment, away from excessive cold, heat and humidity.
4. Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20’ container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer’s brand and label.
