Product Description

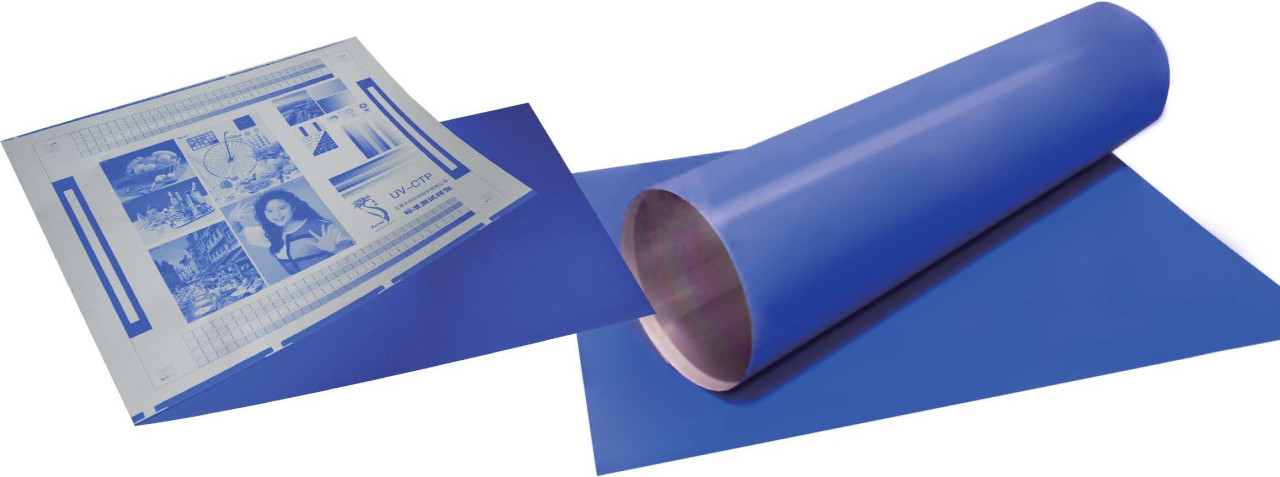

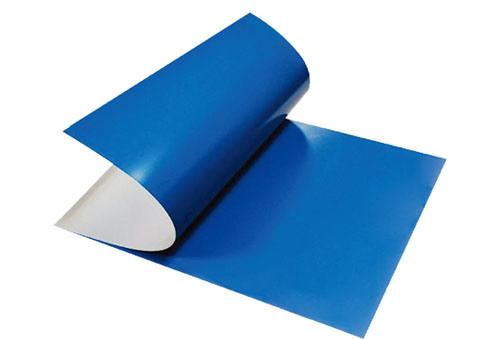

Thermal Double Layer Offset CTP Plate
Features
| General Information | |
| Plate Model | ECOO-ED |
| Plate Type | Thermal UV-CTP Plate(Double Layer) |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |

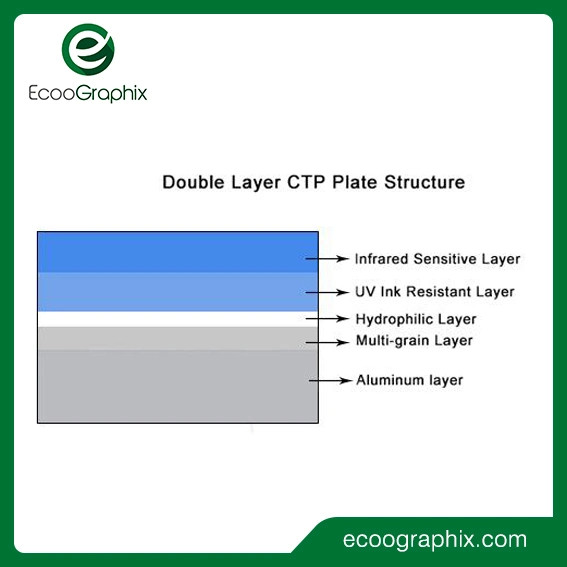

| Coating | Two-layer system, IR sensitive, positive acting |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Ordinary Ink: 100,000 to 200,000 impressions UV Ink: 50,000 to 100,000 impressions |
| Exposing | |
| CTP Plate Making Machine Plate setters | Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS Heidelberg: Top setter/Supra setter; Luscher: Xpose Plate setter Screen: PT-R, Creo: Scitex EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mj/cm² |
| Spectral Sensitivity | 800-850 nm - Peaks 830nm |
| Resolution | 1-99% at 200 LPI |
| FM capability | 20 micron stochastic |
| Image color | Blue Green to Pale Green |
| Developing | |
| Processor | All the kind Brands |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handling | |
| Safelight | Daylight handling |
| Shelf Life | 12 months under recommended storage conditions |

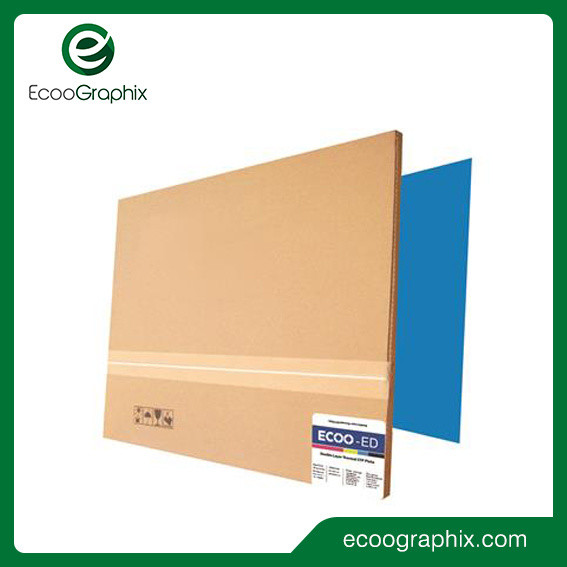

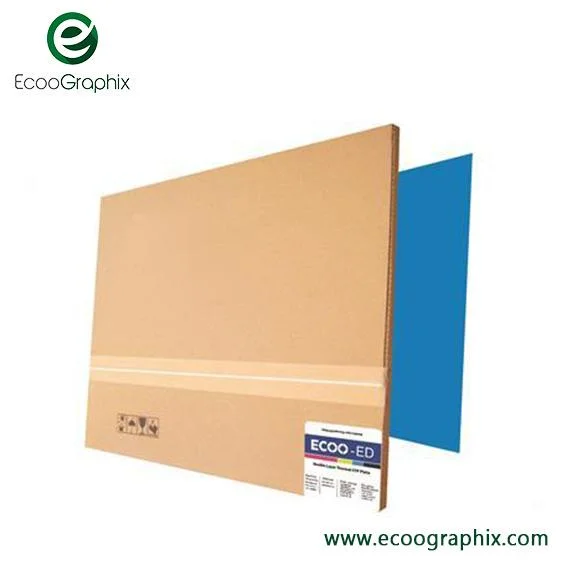

| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity. |
Workflow
Producing and Packing
More details
FAQ
Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
