Name: Low Chemical Violet CTP Printing Plates For Negative Working
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-V
Price: 34.35 USD
Availability: InStock

Low Chemical Violet CTP Printing Plates For Negative Working

1000 sqm

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item: Violet Plate

Model: ECOO-V

Application: Violet CTP Machine

Gauge: 0.15mm; 0.30mm, 0.20mm

MOQ: 1000 SQM

Width: Max. 1280mm

Highlight:

Low Chemical Violet CTP Plate

Negative Working CTP Printing Plates

CTP Printing Plates 0.15mm

Basic Infomation

Place of Origin: China

Brand Name: ecoographix

Certification: ISO, CE

Model Number: ECOO-V

Payment & Shipping Terms

Packaging Details: 50 sheets per carton with protection frame

Delivery Time: 35-60 days

Payment Terms: L/C, T/T

Supply Ability: 1000000 sqm each year

Gallery

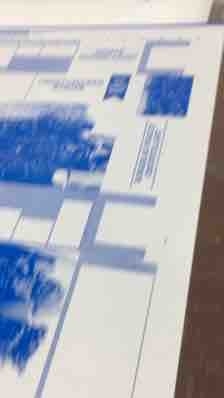

Low Chemical Violet CTP Printing Plates For Negative Working

Product Description

Technical data

Model	ECOO-V
Plate Type	Negative working, violet photopolymer digital plate
Application	Newspaper/Commercial printing
Aluminum	Electrochemically grained and anodized aluminum substrate
Gauge	0.15mm/0.20/0.25/0.30mm
Maximum width	1320mm
Spectral sensitivity	405nm
Platesetter compatibility	All the main brands in market,like Agfa/FFEI&FUJI/Krause/ECRM/Highwater/Escher-Grad/Dotline
Sensitivity	50-60 uJ/cm2
Resolution	2% to 98% @ 150 lpi under calibration
Processors	Recommended: Glunz&Jensen Raptor,Height inca/maya etc.
Developer	Huaguang PPD, FUJI LP-DWS, Agfa PL-10, IMAF NEGA 910
Processing	Preheat temp setting 90-100°C (plate surface temp.)
	For HuaGuang PPD: Developer, temperature 22-24°C /Dwell time 16-17 seconds
	For FUJI LP-DWS: Developer temperature 25-26°C /Dwell time 16-17 seconds
	For Agfa PL-10:Developer temperature 24°C /Dwell time 17 seconds
Run length	More than 150,000 impressions.
Run length	Actual run length may vary according to press/paper/ink conditions
Safelight	For manual handling and platesetting loading, darkroom conditions with G10 safelight is required
Shelf life	12 months, under recommended storage conditions
Transport and storage	Store plates flat in their packaging (un-opened), away from excessive cold, heat or high humidity at 15°C -26°C, with RH between 40 - 70%.

Plate structure

Low Chemical Violet CTP Printing Plates For Negative Working 0

Plate imaging procedures

Low Chemical Violet CTP Printing Plates For Negative Working 1
