Processless CTP Printing Plate For Book Newspaper 830nm

Processless CTP Printing Plate For Book Newspaper 830nm
Features Gallery Product Description Request A Quote
Plate Color: Grey
Thickness: 0.15-0.30mm
Plate Type: Processless Thermal CTP Plate
Spectral Sensitivity: 830nm
Application: High Grade Commercial Or Newspaper Printing
Normal Sizes: 1030x800x0.30mm;510x400x0.15mm
Packing: 50/100Pcs Per Box
Working Environment: Yellow Light Or Dark Room
Platesetter: Kodak Trendsetter, Magnus,Creo ,EcooGraphix T800series
High Light:

Newspaper Thermal CTP Plate


CTP Processless Printing Plates


Book CTP Offset Printing Plates

Basic Infomation
Place of Origin: CHINA
Certification: ISO,SGS
Model Number: Ecoo-G
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: Within 30days
Payment Terms: L/C, T/T
Supply Ability: 50,000SQM
Product Description

Negative Processless Thermal CTP Plate for Commercial Newspaper Printing

Stable Quality,Cost Effective

1. Application

EcooGraphix Ecoo-G is a new, environmental friendly,Development On Press CTP plate . It can be run directly on a printing press after imaging,without a need for chemical processing.


2. Characteristic

ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.


3. Specification

Plate Technical Specification
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130~150mJ/m²
The period of latent image stabilization ≤7days


screen method

1~99 @200Lpi AM/20u FM and mixture
The paper number of start-up <50 sheets
Safety Light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing,directly on press
Run Length 100,000 impressions,actual run length depends on printing conditions
Baking No reccomanded


Negative non-ablation photosensitive system
Compatible with the dominant devices in the market
Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
Good dot reproduction,stable performance,wide processing latitude
Long stability of latent image,can be stored at least a week after plate-making
High quality aluminum substrate,professional coating formulation
Suitable for sheet-fed offset press or high speed rotary offset press
Run length:100,000 impressions
Suitable for different types of traditional inks and fountain solutions,including alcohol’s substitutes as fountain solutions
Unsuitable to improve run length by baking plates
Transportation and Storage
Packed in seal and stored by means of preventing from light/moisture,over heat and high humidity.
Recommended conditions:18℃~24℃,40%~50% RH.

4. Technical features






Sonora XP

Sensitive wavelength(nm) 800-850 800-850
Coating color  Grey Light green
Sensitivity(mj/cm2) 150 150
Exposure in safe light White light 1 hour; yellow light 24 hours White light 1 hour; yellow light 24 hours
After image contrast Can be spotted by eyes, but auto punching machine cannot recognize it Can be spotted by eyes, auto punching machine can recognize it
Imaging device Normal thermal CTP device Normal thermal CTP device
Resolution 1-99% @ 200lpi (dependent on CTP capability) 1-99% @ 200lpi (dependent on CTP capability)
Run-length 100,000 100,000
Storage 12 month (under recommend environment) 12 month (under recommend environment)

ECOO-G has a wide range of exposure energy, the range is 140-200mj/cm2 (similar range to Sonora XP plate), and the dot gain percentage is not much different within this range.

* Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.


Recommended application to press procedures of ECOO-G:

Clean all the inks on the blanket;

Start the press machine, apply the water roller, run 30-40 seconds;

Apply the ink rollers 20-30 seconds;

Apply the paper and start print.


Remark: If operate step 2 and 3 longer, paper will be wasted less.

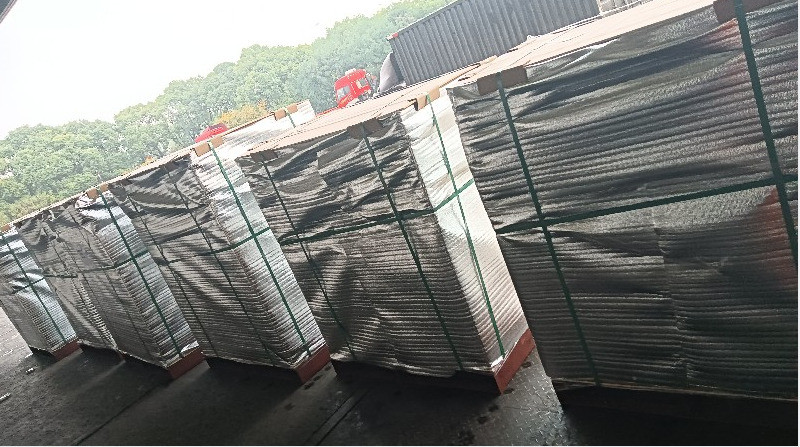

5. Plate Producing and Packing

  From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .


Processless CTP Printing Plate For Book Newspaper 830nm 0

Processless CTP Printing Plate For Book Newspaper 830nm 1

Processless CTP Printing Plate For Book Newspaper 830nm 2

Processless CTP Printing Plate For Book Newspaper 830nm 3Processless CTP Printing Plate For Book Newspaper 830nm 4Processless CTP Printing Plate For Book Newspaper 830nm 5

6. Our Partner and Customers feedback

Processless CTP Printing Plate For Book Newspaper 830nm 6
Processless CTP Printing Plate For Book Newspaper 830nm 7

7. FAQ



Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
