0.30mm 405nm Processless Printing UV CTP CTCP Plate for BasysPrint Luscher
Stable Quality,Cost Effective,Environment Friendly
1. Application
EcooGraphix Ecoo-H is a new, environmental friendly,Development On Press CTP plate . It can be run directly on a printing press after imaging,without a need for chemical processing.
2. Characteristic
ECOO-H is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.
3. Specification
Model | ECOO-H |
Plate Type | Non-ablation UV CTP-negative type |
Application | High grade commercial and newspaper printing |
Substrate | Electrolyte graining and Anodized AL substrate |
Thickness | 0.15mm / 0.30mm |
Maximum short grain width | Maximum width 1280 mm |
Photosensitive wave length | 405 nm |
Platesetter | Various dominant UV platesetters in the market |
Image color | Gray |
Low-energy imaging | 20 mj/ cm² |
The period of latent image stabilization | ≤7 days |
Recommended screen method | 1-99 @200 Lpi AM / 20u FM and mixture |
The paper number of start-up | <50 sheets |
Safety light | 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light |
Processing | Without processing, directly on press |
Run Length |
100,000 impressions Actual run length depends on printing conditions |
Shelf life | 12 months under recommended |
Transportation | Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity |
Storage | Recommended condition: 18℃~24℃, 40%-50% RH. |
Characteristics | ||
Negative non-ablation photosensitive system | ||
Compatible with the dominant devices in the market | ||
Can be printed directly on the machine without any processing steps after scanning by 405nm Conventional CTP / CTCP / UV-CTPplatesetter | ||
Good dot reproduction,stable performance,wide processing latitude | ||
Long stability of latent image,can be stored at least a week after plate-making | ||
High quality aluminum substrate,professional coating formulation | ||
Application | ||
Suitable for sheet-fed offset press or high speed rotary offset press | ||
Run length:100,000 impressions | ||
Suitable for different types of traditional inks and fountain solutions,including alcohol’s substitutes as fountain solutions | ||
Unsuitable to improve run length by baking plates | ||
Transportation and Storage | ||
Packed in seal and stored by means of preventing from light/moisture,over heat and high humidity. | ||
Recommended conditions:18℃~24℃,40%~50% RH. |
Plate
Features |
ECOO-G |
Kodak Sonora XP |
Sensitive wavelength(nm) | 800-850 | 800-850 |
Coating color | Grey | Light green |
Sensitivity(mj/cm2) | 150 | 150 |
Exposure in safe light | White light 1 hour; yellow light 24 hours | White light 1 hour; yellow light 24 hours |
After image contrast | Can be spotted by eyes, but auto punching machine cannot recognize it | Can be spotted by eyes, auto punching machine can recognize it |
Imaging device | Normal thermal CTP device | Normal thermal CTP device |
Resolution | 1-99% @ 200lpi (dependent on CTP capability) | 1-99% @ 200lpi (dependent on CTP capability) |
Run-length | 100,000 | 100,000 |
Storage | 12 month (under recommend environment) | 12 month (under recommend environment) |
ECOO-G has a wide range of exposure energy, the range is 140-200mj/cm2 (similar range to Sonora XP plate), and the dot gain percentage is not much different within this range.
* Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.
Recommended application to press procedures of ECOO-G:
Clean all the inks on the blanket;
Start the press machine, apply the water roller, run 30-40 seconds;
Apply the ink rollers 20-30 seconds;
Apply the paper and start print.
Remark: If operate step 2 and 3 longer, paper will be wasted less.

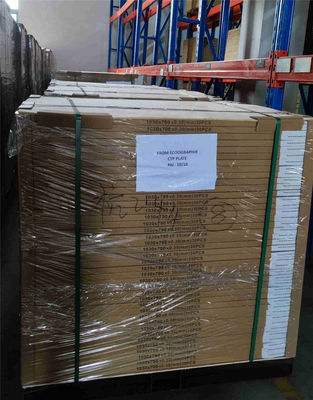

5. Plate Producing and Packing
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .
6. Our Partner and Customers feedback
7. FAQ
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
