Name: Printing Aluminum Double UV Positive CTP Plate High Sensitivity
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-CTCP-D
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: CTCP Plate

Exposure Energy: 50-65 Uj/Square Centimeter

Resolution: 1-99% At 200 Lpi & 20 UFM.

Run-Length (Unbaked): 200, 000 Impressions Unbaked

Run-Length (UV Ink Unbaked): 70, 000 Impressions With UV Ink Unbaked

Run-Length (Baked): 1, 000, 000 Impressions Baked

Aluminum: Standard 1050 Alloy

Developing Time: 20 +/- 3 Sec

Highlight:

Double UV Positive CTP Plate

High Sensitivity Positive CTP Plate

Printing Aluminum Positive CTP Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-CTCP-D

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 2,000,000 Sqm Per Year

Gallery

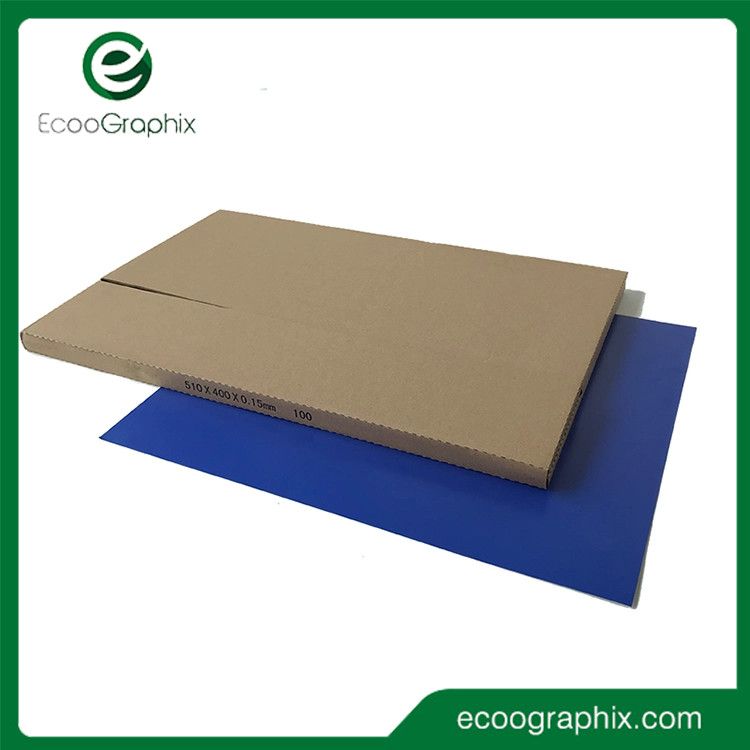

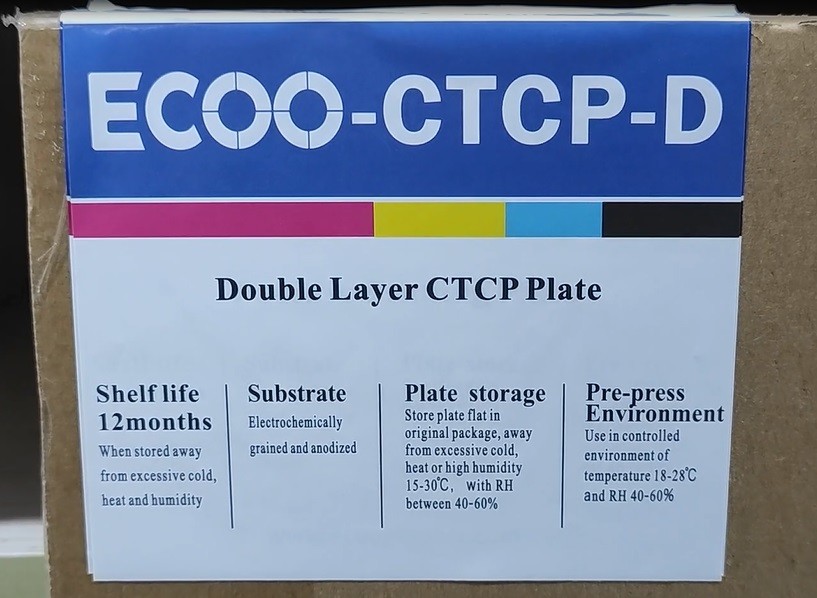

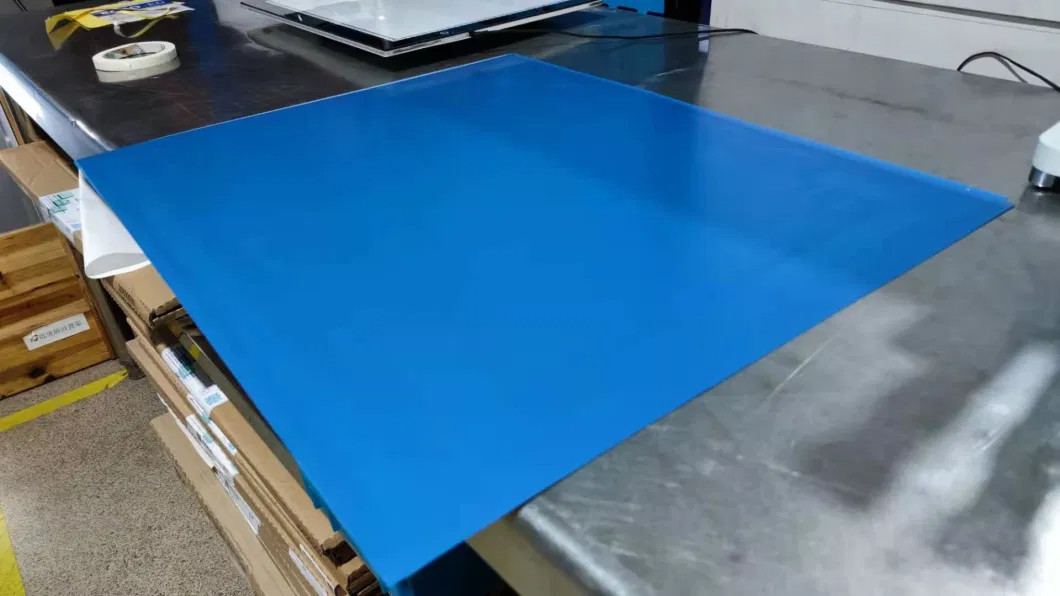

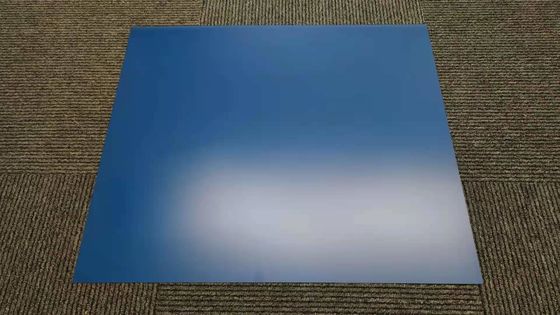

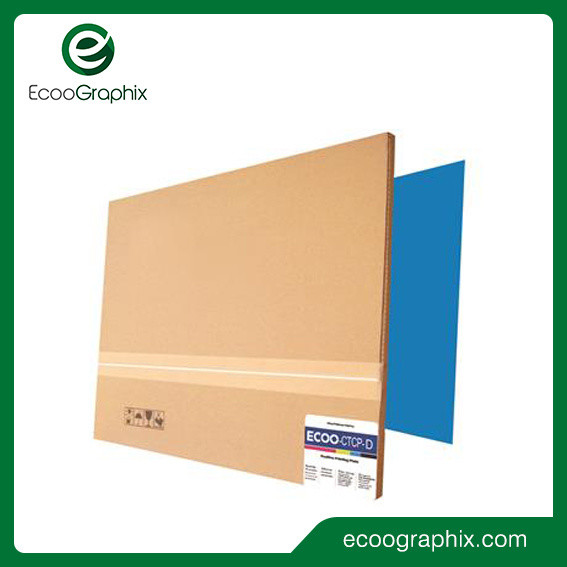

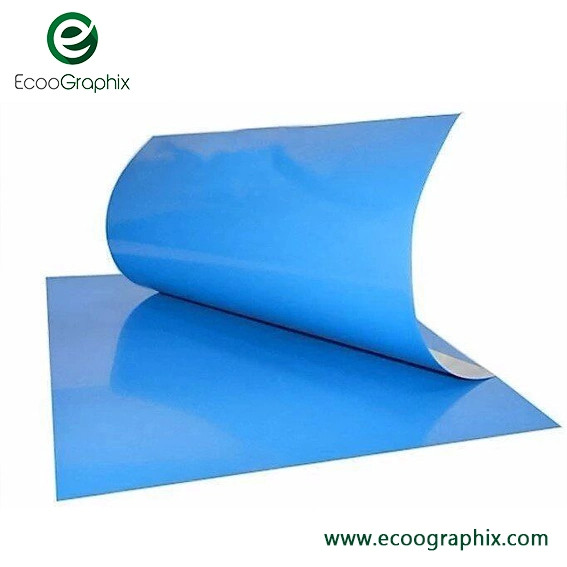

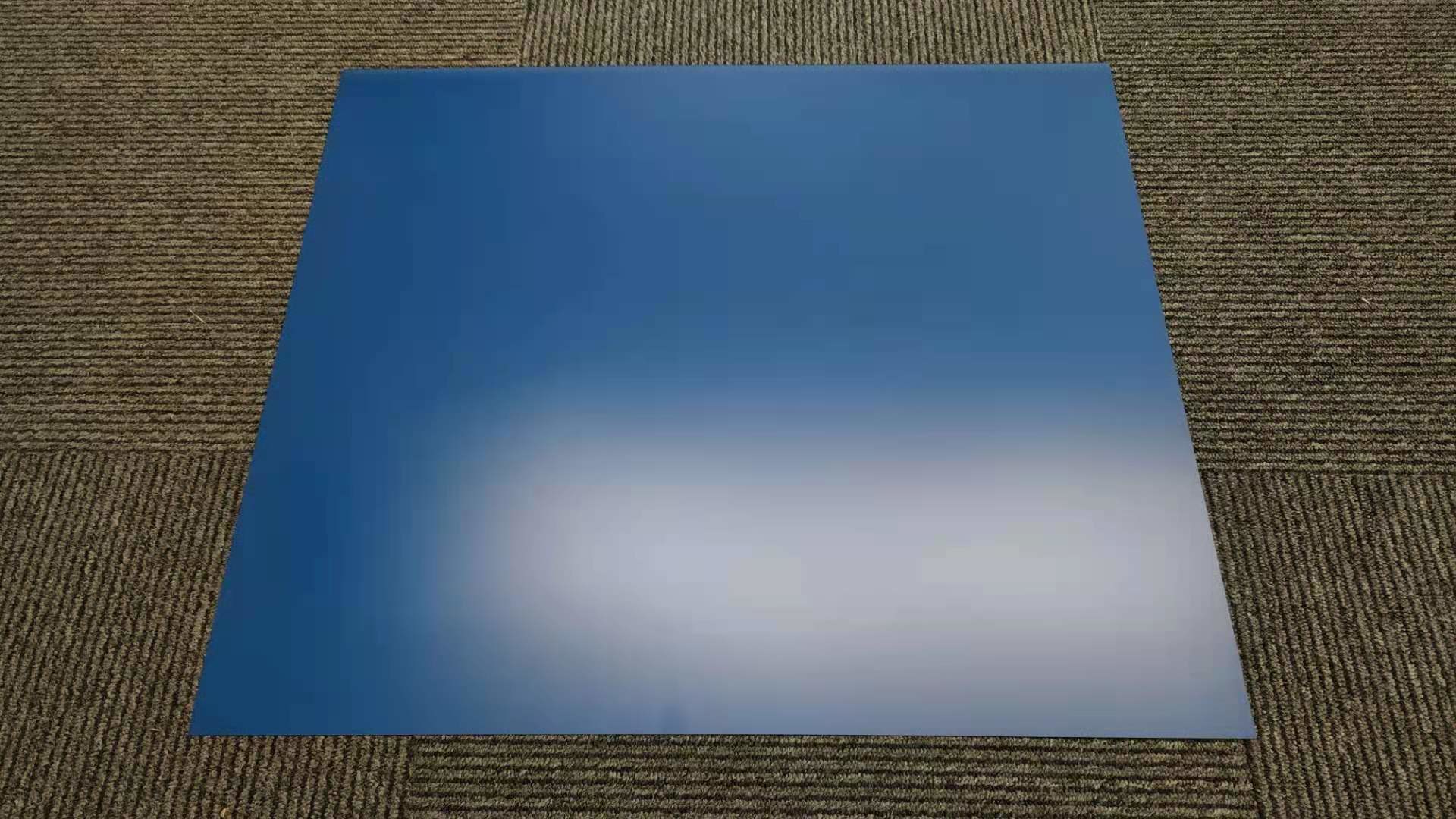

Printing Aluminum Double UV Positive CTP Plate High Sensitivity

Product Description

Printing Aluminum Plate High Sensitivity CTCP Double UV Positive CTP Plate

EcooGraphix Positive CTCP Plate(Double Layer) are made for UV-based ink. It is also compatible with ordinary ink.

It is used for long-run length high-grade offset commercial and newspaper printing.

Features
- Positive writing CTCP(conventional) plate
- Double layers system
- Made with high-grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening

Benefits

- Rapid turnaround time on press
- Robust coating and consistent reliability
- Compatible with most developers
- Premium quality of dot reproduction and long run length

Advantages
- Resist UV-ink; Workable with both normal ink and UV ink
- Mature product, good stability, and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most platesetters, processors, and solutions

Specification

Model	ECOO-CTCP-D
Plate Type	No preheat, positive working, UV sensitive plate, double-coated, no need baking for UV ink printing
Application	Newspaper printing, commercial printing, and package printing
Substrate	Electrochemically Grained and Anodized Aluminum
Gauge	0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1350 mm
Developer	Any positive plate developer or our developer
Length of Run	200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impressions baked.
Plate setters Capability	All the main brands of violet CTP in the market, have laser power of no less than 30 MW
Aluminum	Standard 1050 Alloy
Exposure energy	50-65uj/cm²(based on plate setter and developing condition)
Developing time	20 ±3 sec
Developing Temperature	28 ±2ºC
Spectral Sensitivity	405 nm
Resolution	1-99% @ 200 LPI & 20 uFM
Shelf life	12 months under recommended storage conditions
Storage and handling	Stored in a cool and dry environment, away from excessive cold, and heat.
Product highlight	High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate
