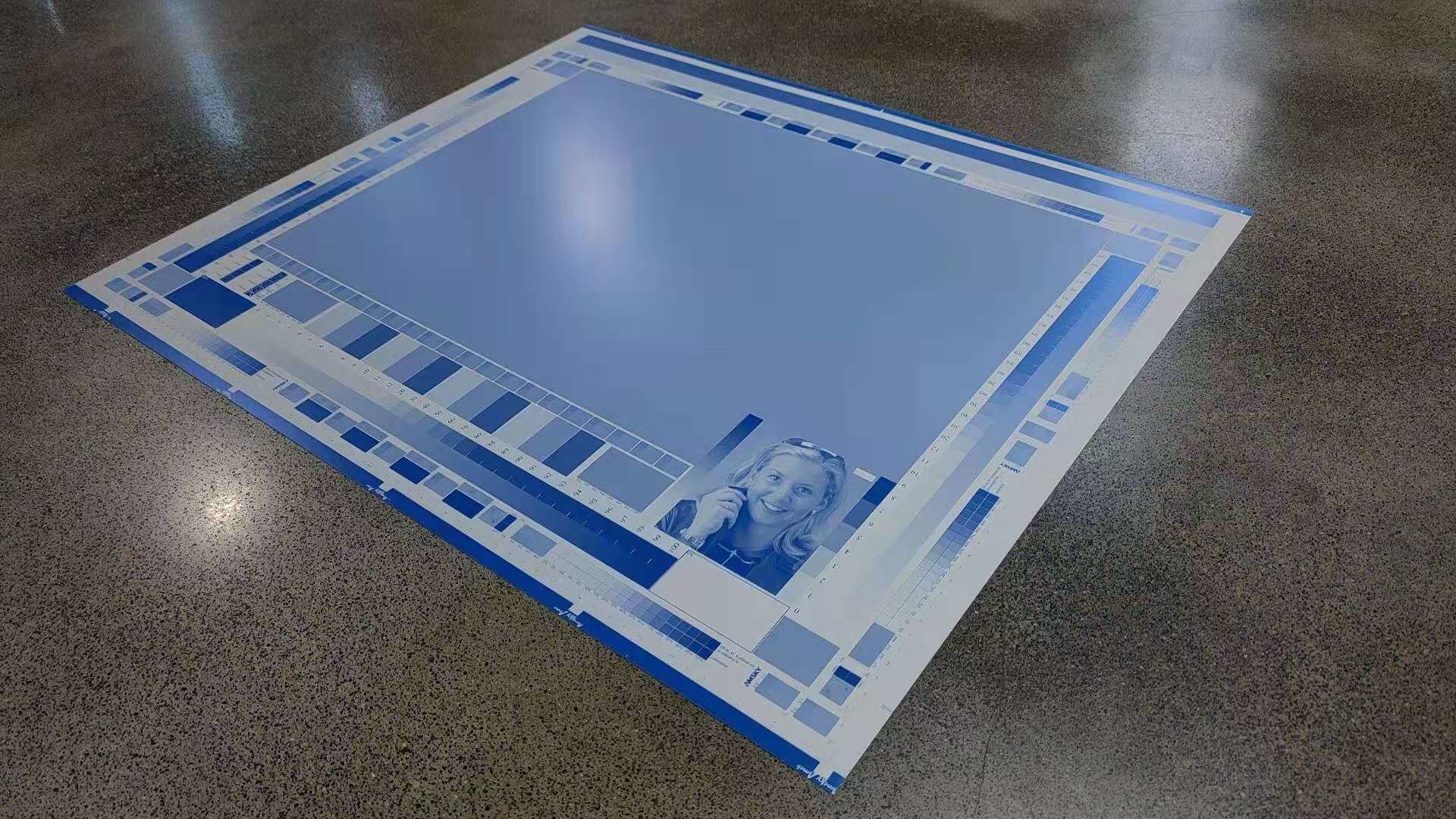

2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate

1,000 Square Meters
MOQ
Negotiable
Price
2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Thermal-negative Type
Coating Color: Grey
Sensitivity(Mj/Sqm Centimeter): 130 - 150
Run Length: 100,000 Impressions; Actual Run Length Depends On Printing Conditions
Thickness: 0.15 Mm Or 0.30 Mm
Safelight(No Direct Irradiation): Fluorescent Lamp1 Hour; Yellow Light 4 Hours
Processing: Without Processing, Directly On Press
Highlight:

2 Layer Negative Printing Plates

,

0.30mm Chemistry Free CTP Plate

,

Thermal Negative CTP Printing Plates
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 1,000,000 Sqm Per Year
Product Description



 Ecoographix Negative Printing Plate Chemistry Free CTP Plate












----- ☆ ----- ▒ ----- ★ ----- ▒  Application  ▒ ----- ★ ----- ▒ ----- ☆ -----

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate. It can be run directly on a printing press after imaging, without a need for chemical processing.






----- ☆ ----- ▒ ----- ★ ----- ▒  Characteristic  ▒ ----- ★ ----- ▒ ----- ☆ -----

ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.






----- ☆ ----- ▒ ----- ★ ----- ▒  Structure  ▒ ----- ★ ----- ▒ ----- ☆ -----

ECOO-G has 2 layers: emulsion layer and protection layer.

2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 0

The emulsion layer contains cross-link and will be exposed by 800-850nm wave-length light. Almost all thermal CTPs on the market can image the plate. There is water-soluble polymer on the protection layer. This layer is mainly used to protect the emulsion layer from damage.






----- ☆ ----- ▒ ----- ★ ----- ▒  Techinical Data  ▒ ----- ★ ----- ▒ ----- ☆ -----

Model
ECOO-G

Plate Type
Non-ablation thermal-negative type

Application
High grade commercial and newspaper printing

Substrate
Electrolyte graining and anodized AL substrate

Thickness
0.15mm/ 0.30mm

Spectrum Scope
800-850nm

Platesetter
Various dominant thermal platesetters in the market

Low-energy Imaging
130-150mj/cm²

The Period Of Latent Image Stabilization
≤ 7days

Recommended Screen Method
1-99 @200Lpi AM/20u FM and mixture

The Paper Number Of Start-up
< 50 sheets

Safety Light
1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light

Processing
Without processing, directly on press

Run Length
100,000 impressions, actual run length depends on printing conditions

Baking
No recommended
​
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and anodized AL substrate
Thickness 0.15mm/ 0.30mm
Spectrum Scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy Imaging 130-150mj/cm²
The Period Of Latent Image Stabilization ≤ 7days
Recommended Screen Method 1-99 @200Lpi AM/20u FM and mixture
The Paper Number Of Start-up < 50 sheets
Safety Light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing, directly on press
Run Length 100,000 impressions, actual run length depends on printing conditions
Baking No recommended
Characteristics
Negative non-ablation photosensitive system
Compatible with the dominant devices in the market
Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
Good dot reproduction, stable performance, wide processing latitude
Long stability of latent image, can be stored at least a week after plate-making
High quality aluminum substrate, professional coating formulation

Application
Suitable for sheet-fed offset press or high speed rotary offset press
Run length: 100,000 impressions
Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions
Unsuitable to improve run length by baking plates

Transportation And Storage
Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
Recommended conditions: 18ºC~24ºC, 40%~50% RH.

​









----- ☆ ----- ▒ ----- ★ ----- ▒  Producing And Packaging  ▒ ----- ★ ----- ▒ ----- ☆ -----


From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 1



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 2



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 3



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 4



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 5



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 6











----- ☆ ----- ▒ ----- ★ ----- ▒  Certifications  ▒ ----- ★ ----- ▒ ----- ☆ -----


2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 7



2 Layer Negative Printing Plates 0.30mm Chemistry Free CTP Plate 8











----- ☆ ----- ▒ ----- ★ ----- ▒  FAQ  ▒ ----- ★ ----- ▒ ----- ☆ -----



Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.


Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.


Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.


Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.


Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.


Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
