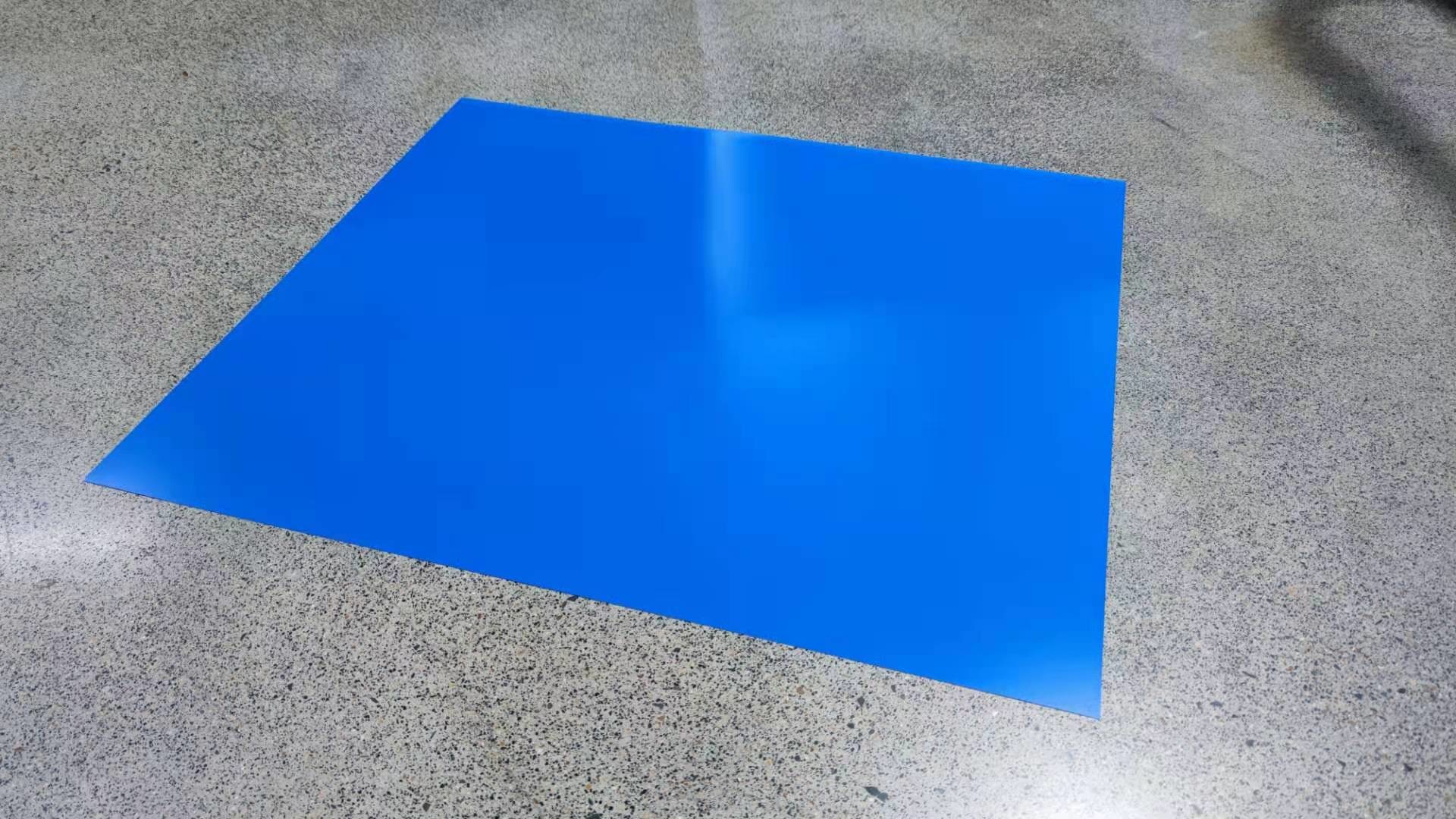

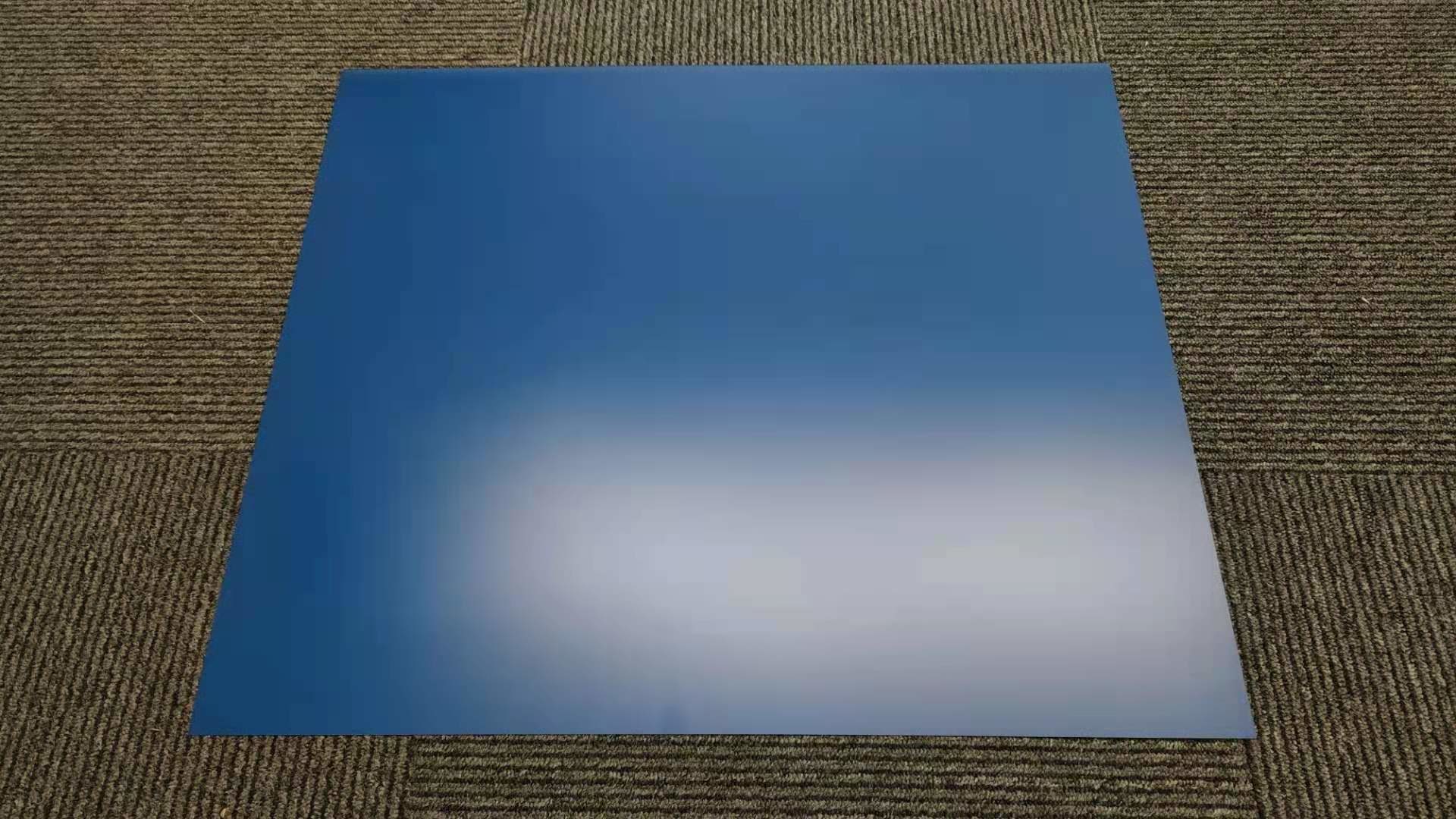

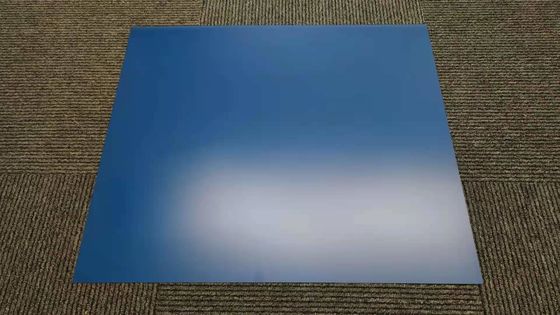

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate

1000 Square Meters
MOQ
Negotiable
Price
UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTCP Plate
Spectral Sensitivity: 400-410nm - UV Laser
Exposure Energy: 50-65uj/cm² (based On Plate Setter And Developing Condition)
Resolution: 1-99% @ 200 LPI & 20 UFM
Run-Length (Unbaked): 200, 000 Impressions Unbaked
Run-Length (UV Ink Unbaked): 70, 000 Impressions With UV Ink Unbaked
Run-Length (Baked): 1, 000, 000 Impressions Baked
Shelf Life: 12 Months Under Recommended Storage Conditions
High Light:

UV Laser Offset Printing Plate

,

Double Layer CTCP Plate

,

410nm CTP Printing Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-CTCP-D
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description


 Offset Printing Plate Positive Double Layer CTCP Plate For UV Based Ink




Application
EcooGraphix Positive CTCP Plate(Double Layer) are made for UV-based ink. It is also compatible with ordinary ink. It is used for long-run length high-grade offset commercial and newspaper printing.




Specification

Model
ECOO-CTCP-D
Plate Type
No preheat, positive working, UV sensitive plate, double-coated, no need baking for UV ink printing
Application
Newspaper printing, commercial printing, and package printing
Substrate
Electrochemically-grained and Anodized aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1350 mm
Developer
Any positive plate developer or our developer
Length of Run
200,000 impressions unbaked;

70,000 impressions with UV ink unbaked;
1,000,000 impressions baked.
Plate setters Capability
All the main brands of violet CTP in the market, have laser power of no less than 30 mw
Aluminum
Standard 1050 Alloy
Exposure energy
50-65uj/cm²(based on plate setter and developing condition)
Developing time
20 ± 3 sec
Developing Temperature
28 ± 2ºC
Spectral Sensitivity
405 nm
Resolution
1-99% @ 200 LPI & 20 uFM
Shelf life
12 months under recommended storage conditions
Storage and handling
Stored in a cool and dry environment, away from excessive cold, and heat.
Product highlight
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate






Characteristic

Features
- Positive writing CTCP(conventional) plate
- Double layers system
- Made with high-grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
Advantages

- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability, and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of the platesetters, processors, and solutions.
Benefits
- Rapid turnaround time on press
- Robust coating and consistent reliability
- Compatible with most developers
- Premium quality of dot reproduction and long run length

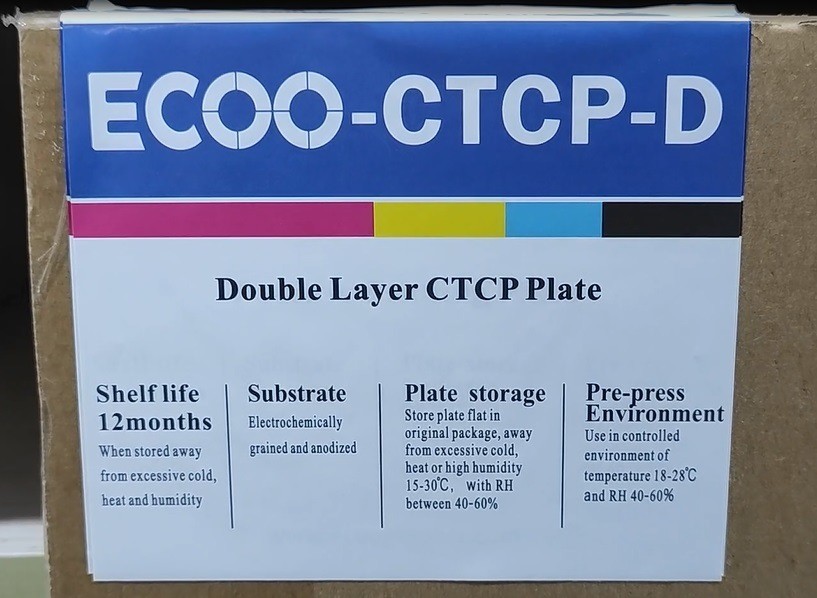

Producing And Packaging
From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 0

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 1

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 2

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 3

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 4

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 5

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 6






Certificates

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 7

UV Based Ink Offset Printing Plate Positive Double Layer CTCP Plate 8





FAQ


Q1: Can I get the sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.


Q5: How many square meters of CTP plates can feed one 20' container?
A: About 20000-25000sqm.

Q6: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.



Video ☞ https://youtu.be/5AXNTTn6Om8
