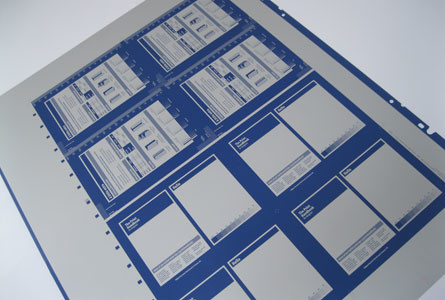

Double Layer Digital Plate Thermal Solvent Resistant CTP Plate
☞ Application
EcooGraphix Thermal Solvent Resistance CTP plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.
☞ Features
1. Extreme Long Run Length
Impressions with normal ink: up to 400,000 without baking, 1,000,000 plus impressions baked (dependent upon image resolution, press, press chemical, ink and paper conditions).
Impressions with UV ink: up to 100,000
2. High Resolution: 1-99% @ 400lpi / 10μ FM stochastic (dependent on capability of imaging device).
3. Double Layer Coating: the plate has two emulsion layers to apply to UV ink and to extend run length.
☞ Specification
Model ECOO-TSR
Plate Type Positive Thermal Digital Plate
Application Commercial, newspaper and package printing
Substrate Electro chemically grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.24, 0.30, 0.40 mm
Maximum Short Grain Width Maximum width 1,280 mm
Coating Blue
Length Of Run
Unbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate Setters All thermal CTP machine
Aluminum Standard 1,050 alloy
Exposure Energy 120 - 150 mj/cm²
Developing Time 25 - 30 sec
Spectral Sensitivity 780 - 850 nm
Resolution 1 - 99% @ 400LPI
Developer ECOO DV-T series developer
Processing Temperature 23ºC +/- 2ºC
Processing Speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage And Handing Stored in a cool and dry environment, away from excessive cold, heat and humidity
| Model |
ECOO-TSR |
| Plate Type |
Positive Thermal Digital Plate |
| Application |
Commercial, newspaper and package printing |
| Substrate |
Electro chemically grained and Anodized lithographic aluminum |
| Gauge |
0.15, 0.20, 0.24, 0.30, 0.40 mm |
| Maximum Short Grain Width |
Maximum width 1,280 mm |
| Coating |
Blue |
| Length Of Run |
Unbaked: 400,000 impressions
UV Ink: 100,000 impressions |
| Plate Setters |
All thermal CTP machine |
| Aluminum |
Standard 1,050 alloy |
| Exposure Energy |
120 - 150 mj/cm² |
| Developing Time |
25 - 30 sec |
| Spectral Sensitivity |
780 - 850 nm |
| Resolution |
1 - 99% @ 400LPI |
| Developer |
ECOO DV-T series developer |
| Processing Temperature |
23ºC +/- 2ºC |
| Processing Speed |
0.80 - 1.20 m/min |
| Safelight |
Daylight handling |
| Shelf Life |
12 months under recommended storage conditions |
| Packaging |
Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage And Handing |
Stored in a cool and dry environment, away from excessive cold, heat and humidity |
☞ Characteristic
Features
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum base
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 150,000 impressions
- UV ink up to 80,000 impressions
- Ability to print both AM and FM screening
Benefits
- Extensive adaptability, saving from waste during possible swift of consumables' supplying
- Quick turn around time on press
- Compatible with common developers
- Premium quality of dot reproduction and super long run length
☞ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
☞ FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
