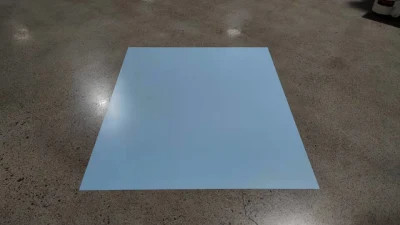

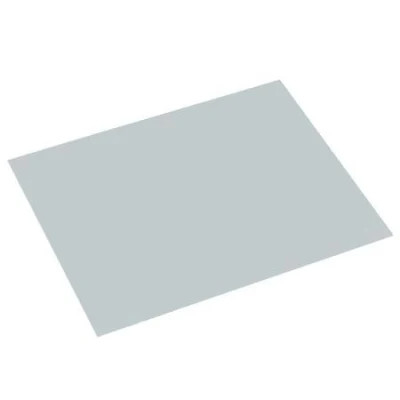

Non-ablation Thermal Negative CTP Offset Printing Plate
Characteristics
| Model | ECOO-G |
| Plate Type | Thermal-negative type |
| Application | High-grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.15mm/ 0.30mm |
| Maximum short grain width | Maximum width 1280 mm |
| Spectrum scope | 800-850 nm |
| Photosensitive wavelength | 830 nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Coating color | Grey |
| Low-energy imaging | 130-150 MJ/cm² |
| The period of latent image stabilization | ≤ 7 days |
| Recommended screen method | 1-99% @200 LPI AM or 20μm FM or mixture |
| The paper number of start-up | < 50 sheets |
| Safety light | 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended. |
| Processing | Without processing, directly on the press |
| Run Length | 100,000 impressions; Actual run length depends on printing conditions |
| Shelf life | 12 months under recommended condition |
| Transportation | Packed in seal and stored using prevention from light, moisture, overheating, and high humidity |
| Storage | Recommended condition: 18ºC-24ºC, 40%-50% RH. |
Applied Parameters in Imaging Device
| CTP model Data |
Kodak trendsetters |
LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 15-17W | 300-320mw | 19.5-21.5W | 80-90 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that needs set up | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom |
♦ Application

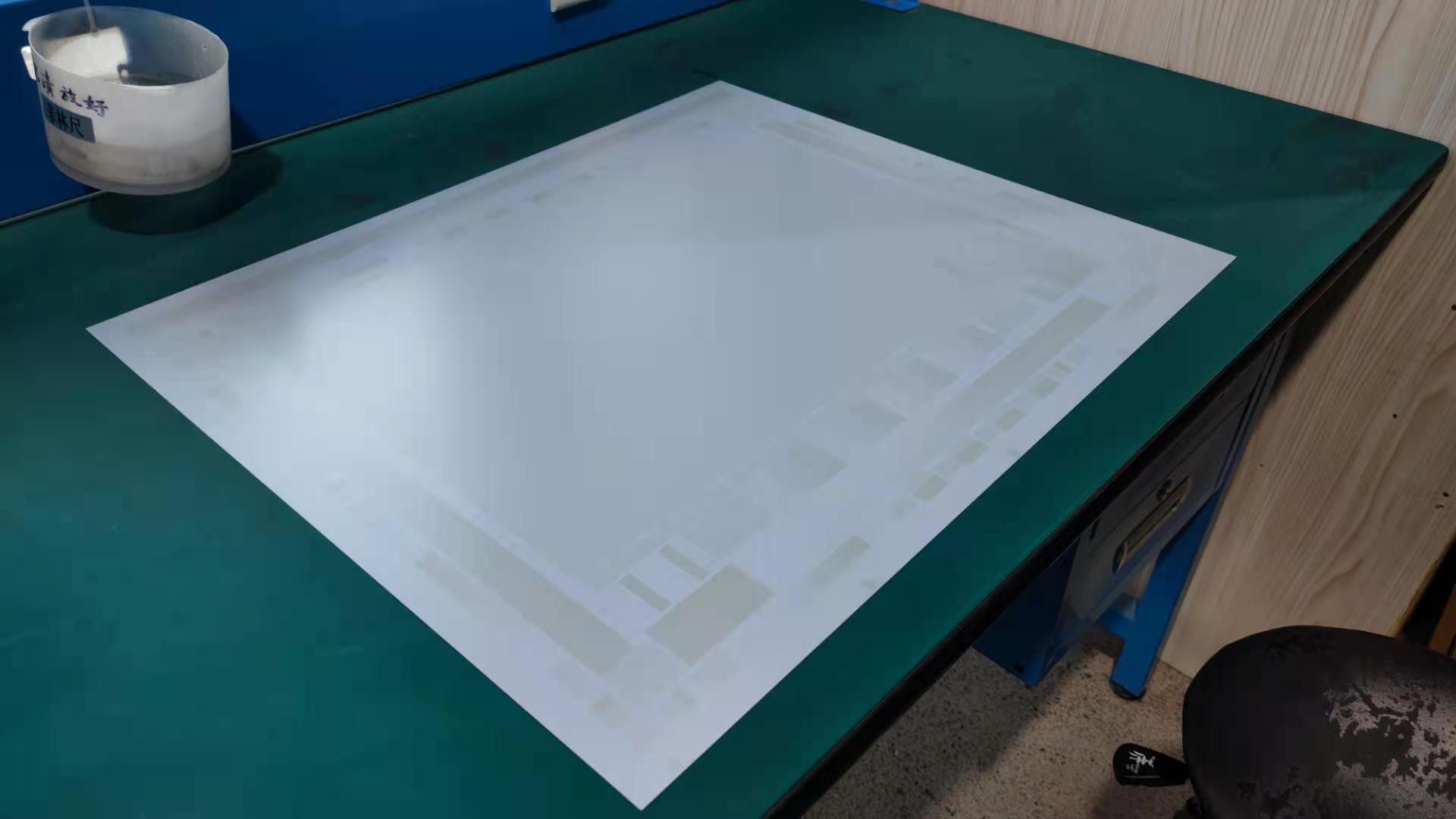

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate.
It can be run directly on a printing press after imaging, without a need for chemical processing.
Recommended application to press procedures of ECOO-G:
1] Clean all the inks on the blanket;
2] Start the press machine, apply the water roller, and run for 30-40 seconds;
3] Apply the ink rollers 20-30 seconds;
4] Apply the paper and start print.
Remark: If steps 2 and 3 are longer, the paper will be wasted less.
