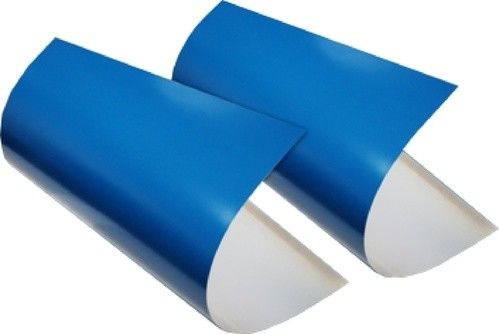

Offset Printing Thermal Positive CTP Plate For Commercial Printing

1000 Square Meters
MOQ
Negotiable
Price
Offset Printing Thermal Positive CTP Plate For Commercial Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Thermal CTP Plate
Length Of Run(Unbaked): 80000 To 100, 000 Impressions
Length Of Run(Baked): Over 100, 000 Impressions
Exposure Energy: 90 - 120 Mj/Square Centimeter
Resolution: 1-99% @300LPI
Coating: Single-Layer System, IR Sensitive, Positive Acting
Processing Speed: 0.80-1.20 M/Min
Developing Time: 25-30 Sec
High Light:

Thermal Positive CTP Plate

,

Offset Printing CTP Plate

,

Commercial Printing CTP Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-ES
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 Thermal Positive CTP Plate Offset Printing Plate For High Commercial Printing











 1. Characteristic




High quality aluminum, composite grain and high press runs.

Capable of bright room operation.

High resolution and precise half tone dot reproduction.

High development tolerance level and convenient operation.









 2. Specification



Model

ECOO-ES


Plate Type

Thermal CTP Plate


Application

High grade commercial and newspaper printing


Substrate

Electro chemically grained and Anodized lithographic aluminum


Gauage

0.15, 0.20, 0.25, 0.30, 0.40(mm)


Maximum short grain width

Maximum width 1280 mm


Coating

Single-layer system, IR sensitive, Positive acting


Length of Run
Unbaked: 80000 to 100,000 impressions;
Baked: Over 100,000 impressions



Plate setters

All thermal CTP machine


Aluminum

Standard 1050 alloy


Exposure energy

90 - 120 mj/cm²


Developing time

5 - 30 sec


Spectral Sensitivity

800 - 850 nm - Peaks 830nm


Resolution

1 - 99% @ 300LPI


Image Color

Blue


Developer

Kodak Gold Star or our own developer


Processing temperature

23ºC +/- 2ºC


Processing Speed

0.80 - 1.20 m/min


Safelight

Daylight handling


Shelf life

12 months under recommended storage conditions


Packaging

Available in all standard formats, including bulk packaging options such as APL packaging


Storage and handing

Stored in a cool and dry environment, away from excessive cold, heat and humidity

Model ECOO-ES
Plate Type Thermal CTP Plate
Application High grade commercial and newspaper printing
Substrate Electro chemically grained and Anodized lithographic aluminum
Gauage 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Single-layer system, IR sensitive, Positive acting
Length of Run Unbaked: 80000 to 100,000 impressions;
Baked: Over 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 90 - 120 mj/cm²
Developing time 25 - 30 sec
Spectral Sensitivity 800 - 850 nm - Peaks 830nm
Resolution 1 - 99% @ 300LPI
Image Color Blue
Developer Kodak Gold Star or our own developer
Processing temperature 23ºC +/-  2ºC
Processing Speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging

Available in all standard formats, including bulk packaging options

such as APL packaging

Storage and handing

Stored in a cool and dry environment, away from excessive cold,

heat and humidity

​​







 3. Application




EcooGraphix Thermal CTP Plate(Single Layer) is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length.








 4. Customer's Feedback




Offset Printing Thermal Positive CTP Plate For Commercial Printing 0









 5. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Offset Printing Thermal Positive CTP Plate For Commercial Printing 1



Offset Printing Thermal Positive CTP Plate For Commercial Printing 2



Offset Printing Thermal Positive CTP Plate For Commercial Printing 3



Offset Printing Thermal Positive CTP Plate For Commercial Printing 4



Offset Printing Thermal Positive CTP Plate For Commercial Printing 5









 7. Certificates




Offset Printing Thermal Positive CTP Plate For Commercial Printing 6



Offset Printing Thermal Positive CTP Plate For Commercial Printing 7









 8. FAQ





 Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.




 Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.




 Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.




 Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.




 Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20000-25000sqm.




 Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
