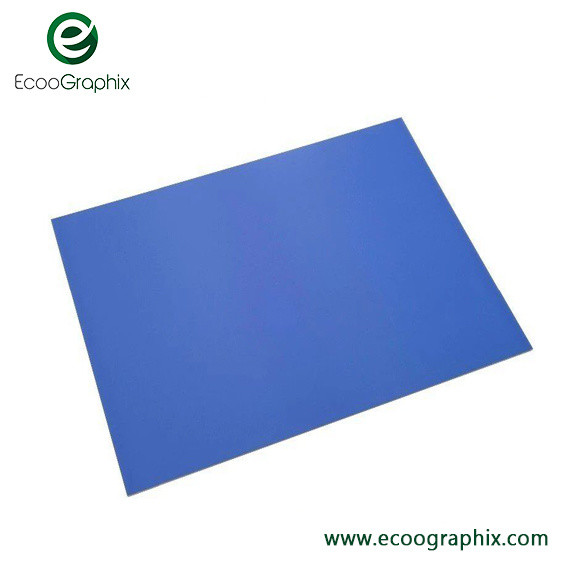

IR Sensitive Double Layer Thermal CTP Printing Plate Aluminum Plate
1. Characteristic
- Positive writing thermal plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 200,000 impressions
- UV Ink up to 100,000 impressions
- Ability to print both AM and FM screening
2. Specification
Model
ECOO-ED
Plate type
Thermal CTP Plate, Double Layer
Application
High grade commercial and newspaper printing
Substrate
Electro chemically grained and Anodized lithographic aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1280 mm
Coating
Two-layer system, IR sensitive, Positive acting
Length of run
Ordinary Ink: 100,000 to 200,000 impressions;
UV Ink: 50,000 to 100,000 impressions
Plate setters
All thermal CTP machine
Aluminum
Standard 1050 Alloy
Exposure energy
110-130 mj/cm²
Developing time
25-30 sec
Spectral sensitivity
800-850 nm - Peaks 830nm
Resolution
1-99% @200LPI
Image color
Blue
Developer
Kodak Gold Star or our own developer
Processing temperature
23ºC +/- 2ºC
Processing speed
0.80-1.20 m/min
Safelight
Daylight handling
Shelf life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat and humidity
| Model | ECOO-ED |
| Plate type | Thermal CTP Plate, Double Layer |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Two-layer system, IR sensitive, positive acting |
| Length of run | Ordinary Ink: 100,000 to 200,000 impressions UV Ink: 50,000 to 100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 110-130 mj/cm² |
| Developing time | 25-30 sec |
| Spectral sensitivity | 800-850 nm - Peaks 830nm |
| Resolution | 1-99% @200LPI |
| Image color | Blue |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23ºC +/- 2ºC |
| Processing speed | 0.80-1.20 m/min |
| Safelight | Daylight handling |
| Shelf life | 12 months under recommended storage conditions |
| Packaging |
Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handing |
Stored in a cool and dry environment, away from excessive cold, heat and humidity |
3. Application
EcooGraphix Double Layer Thermal CTP Plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.
4. Customer's Feedback
5. Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
6. Certificates
7. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20000-25000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
