UV Ink Workable Thermal Positive CTP Plate Double Layer

1000 Square Meters
MOQ
Negotiable
Price
UV Ink Workable Thermal Positive CTP Plate Double Layer
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Printing Pate
Resolution: 1-99% @200LPI
Maximum Short Grain Width: Maximum Width 1280 Mm
Length Of Run(Ordinary Ink): 100,000 To 200,000 Impressions
Length Of Run(UV Ink): 50,000 To 100,000 Impressions
Exposure Energy: 110-130 Mj/square Centimeter
Coating: Two-layer System, IR Sensitive, Positive Acting
Processing Speed: 0.80-1.20 M/min
Highlight:

Thermal Positive CTP Plate

,

Double Layer CTP Plate

,

UV Ink Workable CTP Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 UV Ink Workable Double layer Thermal Positive CTP Plate
















 1. Application





EcooGraphix Double Layer Thermal CTP Plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.















 2. Specification





Model

ECOO-ED


Plate type

Thermal CTP Plate, Double Layer


Application

High grade commercial and newspaper printing


Substrate

Electro chemically grained and Anodized lithographic aluminum


Gauge

0.15, 0.20, 0.25, 0.30, 0.40(mm)


Maximum short grain width

Maximum width 1,280 mm


Coating

Two-layer system, IR sensitive, Positive acting


Length of run
Ordinary Ink: 100,000 to 200,000 impressions;
UV Ink: 50,000 to 100,000 impressions


Plate setters

All thermal CTP machine


Aluminum

Standard 1,050 Alloy


Exposure energy

110 - 130 mj/cm²


Developing time

25 - 30 sec


Spectral sensitivity

800 - 850 nm - Peaks 830nm


Resolution

1 - 99% @ 200LPI



color Blue


Developer

Kodak Gold Star or our own developer


Processing temperature

23ºC +/- 2ºC


Processing speed

0.80 - 1.20 m/min


Safelight

Daylight handling


Shelf life

12 months under recommended storage conditions


Packaging

Available in all standard formats, including bulk packaging options such as APL packaging


Storage and handing

Stored in a cool and dry environment, away from excessive cold, heat and humidity

Model ECOO-ED
Plate type Thermal CTP Plate, Double Layer
Application High grade commercial and newspaper printing
Substrate Electro chemically grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1,280 mm
Coating Two-layer system, IR sensitive, Positive acting
Length of run Ordinary Ink: 100,000 to 200,000 impressions;
UV Ink: 50,000 to 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1,050 Alloy
Exposure energy 110 - 130 mj/cm²
Developing time 25 - 30 sec
Spectral sensitivity 800 - 850 nm - Peaks 830nm
Resolution 1 - 99% @ 200LPI
Image color Blue
Developer Kodak Gold Star or our own developer
Processing temperature 23ºC +/- 2ºC
Processing speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity










 3. Characteristic




- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum from Europe

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 200,000 impressions

- UV ink up to 100,000 impressions

- Ability to print both AM and FM screening














 4. Customer's Feedback





UV Ink Workable Thermal Positive CTP Plate Double Layer 0

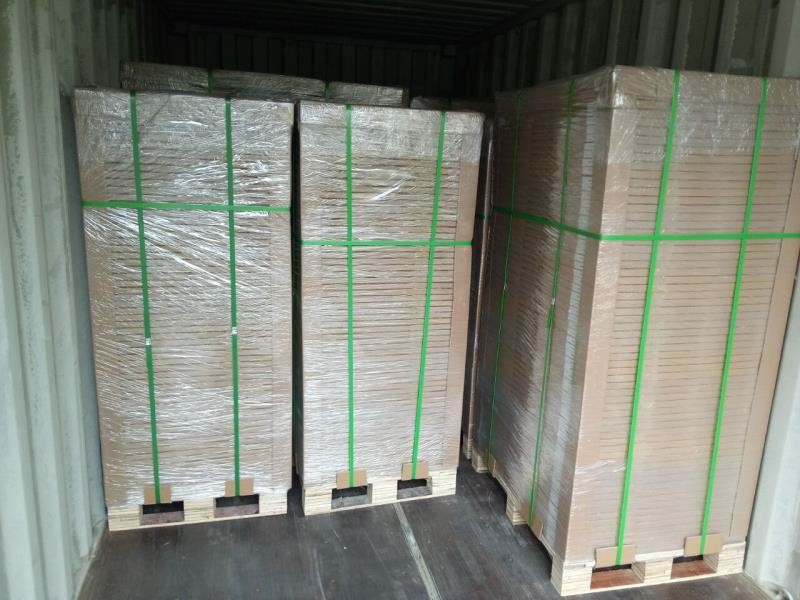

 5​. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



UV Ink Workable Thermal Positive CTP Plate Double Layer 1



UV Ink Workable Thermal Positive CTP Plate Double Layer 2



UV Ink Workable Thermal Positive CTP Plate Double Layer 3



UV Ink Workable Thermal Positive CTP Plate Double Layer 4



UV Ink Workable Thermal Positive CTP Plate Double Layer 5



UV Ink Workable Thermal Positive CTP Plate Double Layer 6



UV Ink Workable Thermal Positive CTP Plate Double Layer 7



UV Ink Workable Thermal Positive CTP Plate Double Layer 8
















 6. Certificates





UV Ink Workable Thermal Positive CTP Plate Double Layer 9



UV Ink Workable Thermal Positive CTP Plate Double Layer 10
















 7. FAQ





Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.






Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.






Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.






Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.






Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.






Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
