Negative Digital Low Chemical Violet CTP Plate for Offset Newspaper Printing
Environmental Friendly,Cost Effective,High Sensitivity
About our company
EcooGraphix is a leading and professional Supplier for Prepress Solution , Printing Materials and Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,Offset Printing inks , printing blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.
1.Application

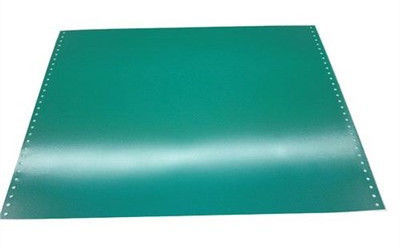

Ecoo-V is an environmental friendly Low Chemical Violet Photopolymer CTP plate for Newspaper printing. Compared with normal Violet CTP plate, Ecoo-V keeps original photosensitive features and printing compatibility and have following advantages:
2.Characteristic
Features
1. Simplifying the processing, only 3 steps including preheating, developing, and drying.
2. Reducing chemical consumption, saving water.
3. Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer. It makes print quality more stable.
3.Specification
| Plate Type | ECOO-V |
| Features | Negative-working, low-chemical violet plate, also can work as normal violet plate |
| Application | Newspaper |
| Substrate | Electrochemically grained and anodized aluminum substrate |
| Gauge | 0.20/0.25/0.30/0.40mm |
| Plate-setter | Existing mainstream violet plate-setter |
| Processor | Existing conventional violet processers and low-chemical violet processers |
| Developer | FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum |
|
Processing |
Preheat temp setting 90-100℃(plate surface temp) For FUJI LP-DWS: Developer temperature 25-26℃/Dwell time 16-17 seconds For Agfa PL-10: Developer temperature 24℃/Dwell time 17 seconds |
| Spectral sensitivity | 405nm |
| Laser energy | 50-60 μj/cm² |
| Resolution | 150lpi (2-98%), under 1800dpi, 25μm line can be produced |
| Chemicals | PVG finisher |
| Preheat | 95-121℃ |
| Developing temperature | 24±2℃ |
| Developing time | 20-30s |
| Run length | Unbaked 200,000 impressions; Baked 500,000 impressions |
| Shelf life | 12months under recommended storage conditions |
| Storage | Temperature: 18-26℃ Relative humidity: 30-70% RH |
|
Advantages |
Environment-friendly------help enterprises to develop Stable developing performance, compatible with various kinds of developers Reduce equipment investment and maintenance cost |
Violet CTP Plate structure
Violet CTP Plate making Process

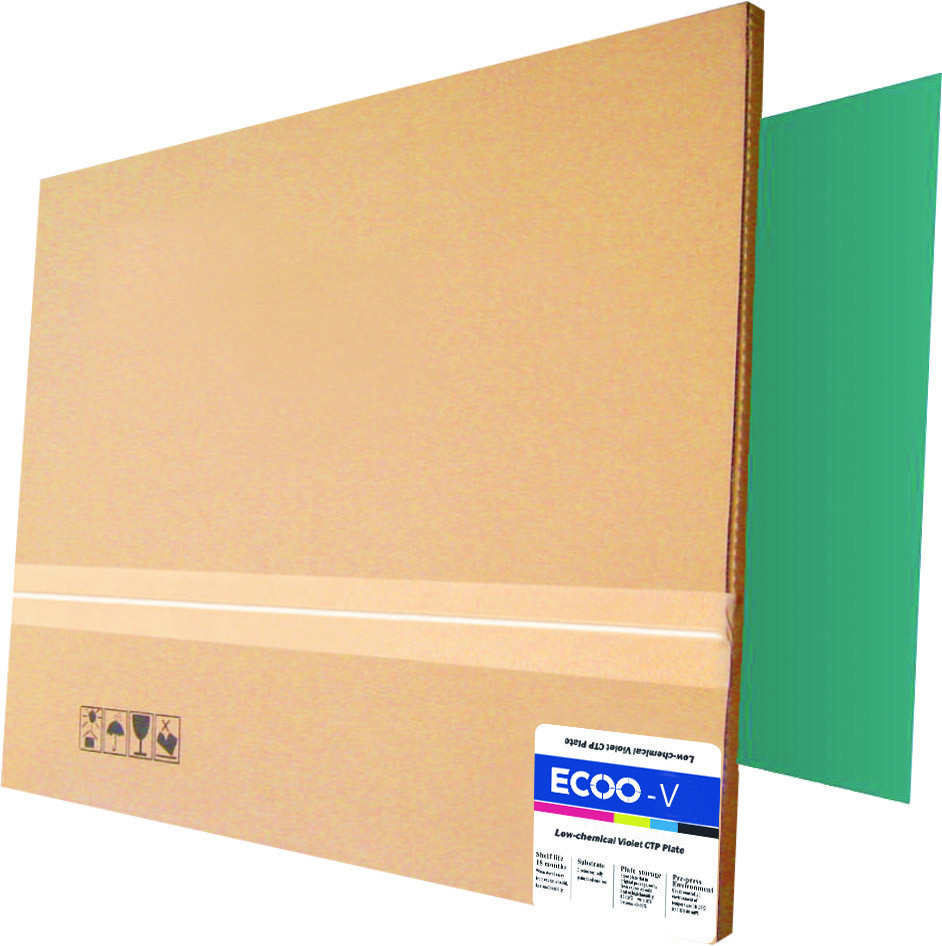

4.Plate Producing and Packing
From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .
5.Our Partner and Customers
6. FAQ
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
