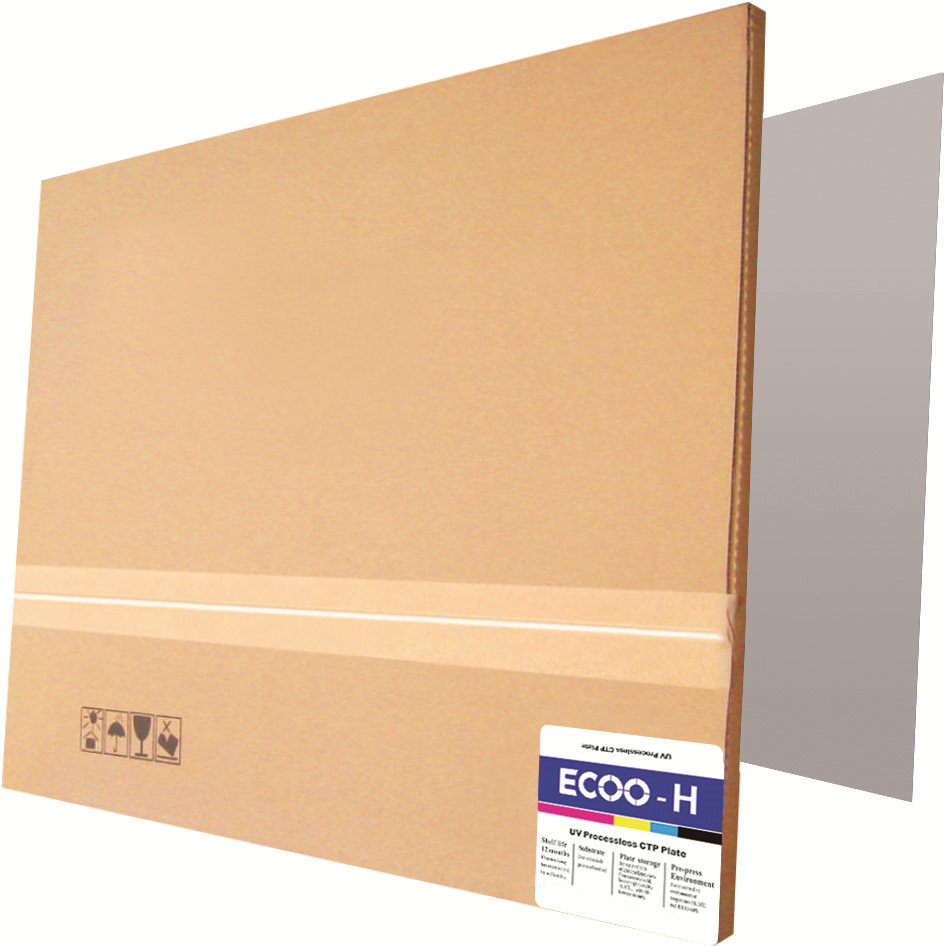

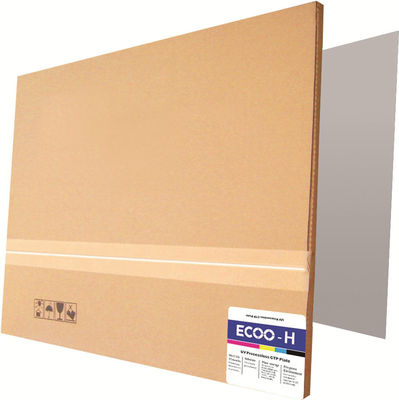

830nm Grey Aluminum 0.15mm CTP Offset Printing Plates

1SQM
MOQ
Negotiable
Price
830nm Grey Aluminum 0.15mm CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Color: Grey
Thickness: 0.15,0.30mm
Plate Type: Processless Thermal CTP Plate
Spectral Sensitivity: 830nm
Application: High Grade Commercial Or Newspaper Printing
Normal Sizes: 745x605x0.30mm;510x400x0.15mm
Packing: 50/100Pcs Per Box
Working Environment: Yellow Light Or Dark Room
High Light:

0.15mm CTP Offset Printing Plates

,

Aluminum CTP Offset Printing Plates

,

830nm CTP Offset Printing Plates

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO,SGS
Model Number: Ecoo-H
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: Within 30days
Payment Terms: L/C, T/T
Supply Ability: 50,000SQM
Product Description

Processless Offset Printing Aluminum 0.15mm UV CTP CTCP Plate Without Chemical

Stable Quality,Cost Effective,Environment Friendly


1. Application

EcooGraphix Ecoo-G is a new, environmental friendly,Development On Press CTP plate . It can be run directly on a printing press after imaging,without a need for chemical processing.



2. Characteristic

ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easy dissolved into the fountain solution.



3. Specification

Model ECOO-H
Plate Type Non-ablation UV CTP-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 405 nm
Platesetter Various dominant UV platesetters in the market
Image color Gray
Low-energy imaging 20 mj/ cm²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99 @200 Lpi AM / 20u FM and mixture
The paper number of start-up <50 sheets
Safety light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing, directly on press
Run Length

100,000 impressions

Actual run length depends on printing conditions

Shelf life 12 months under recommended
Transportation Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity
Storage Recommended condition: 18℃~24℃, 40%-50% RH.

Characteristics
Negative non-ablation photosensitive system
Compatible with the dominant devices in the market
Can be printed directly on the machine without any processing steps after scanning by 405nm Conventional CTP / CTCP / UV-CTPplatesetter
Good dot reproduction,stable performance,wide processing latitude
Long stability of latent image,can be stored at least a week after plate-making
High quality aluminum substrate,professional coating formulation
Application
Suitable for sheet-fed offset press or high speed rotary offset press
Run length:100,000 impressions
Suitable for different types of traditional inks and fountain solutions,including alcohol’s substitutes as fountain solutions
Unsuitable to improve run length by baking plates
Transportation and Storage
Packed in seal and stored by means of preventing from light/moisture,over heat and high humidity.
Recommended conditions:18℃~24℃,40%~50% RH.

4. Technical features

Plate



Features

ECOO-G

Kodak

Sonora XP

Sensitive wavelength(nm) 800-850 800-850
Coating color  Grey Light green
Sensitivity(mj/cm2) 150 150
Exposure in safe light White light 1 hour; yellow light 24 hours White light 1 hour; yellow light 24 hours
After image contrast Can be spotted by eyes, but auto punching machine cannot recognize it Can be spotted by eyes, auto punching machine can recognize it
Imaging device Normal thermal CTP device Normal thermal CTP device
Resolution 1-99% @ 200lpi (dependent on CTP capability) 1-99% @ 200lpi (dependent on CTP capability)
Run-length 100,000 100,000
Storage 12 month (under recommend environment) 12 month (under recommend environment)


ECOO-G has a wide range of exposure energy, the range is 140-200mj/cm2 (similar range to Sonora XP plate), and the dot gain percentage is not much different within this range.

* Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.



Recommended application to press procedures of ECOO-G:

Clean all the inks on the blanket;

Start the press machine, apply the water roller, run 30-40 seconds;

Apply the ink rollers 20-30 seconds;

Apply the paper and start print.



Remark: If operate step 2 and 3 longer, paper will be wasted less.

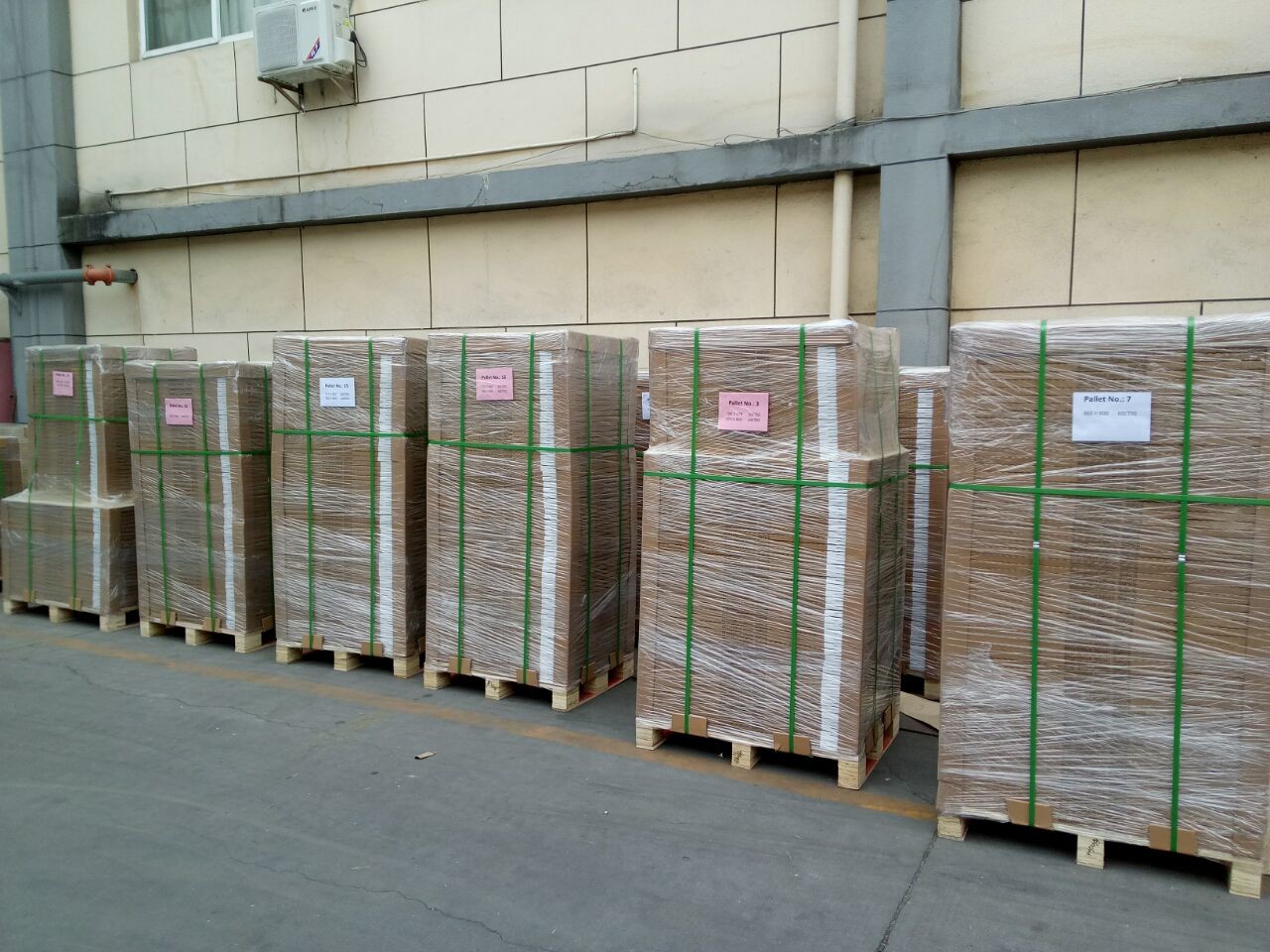

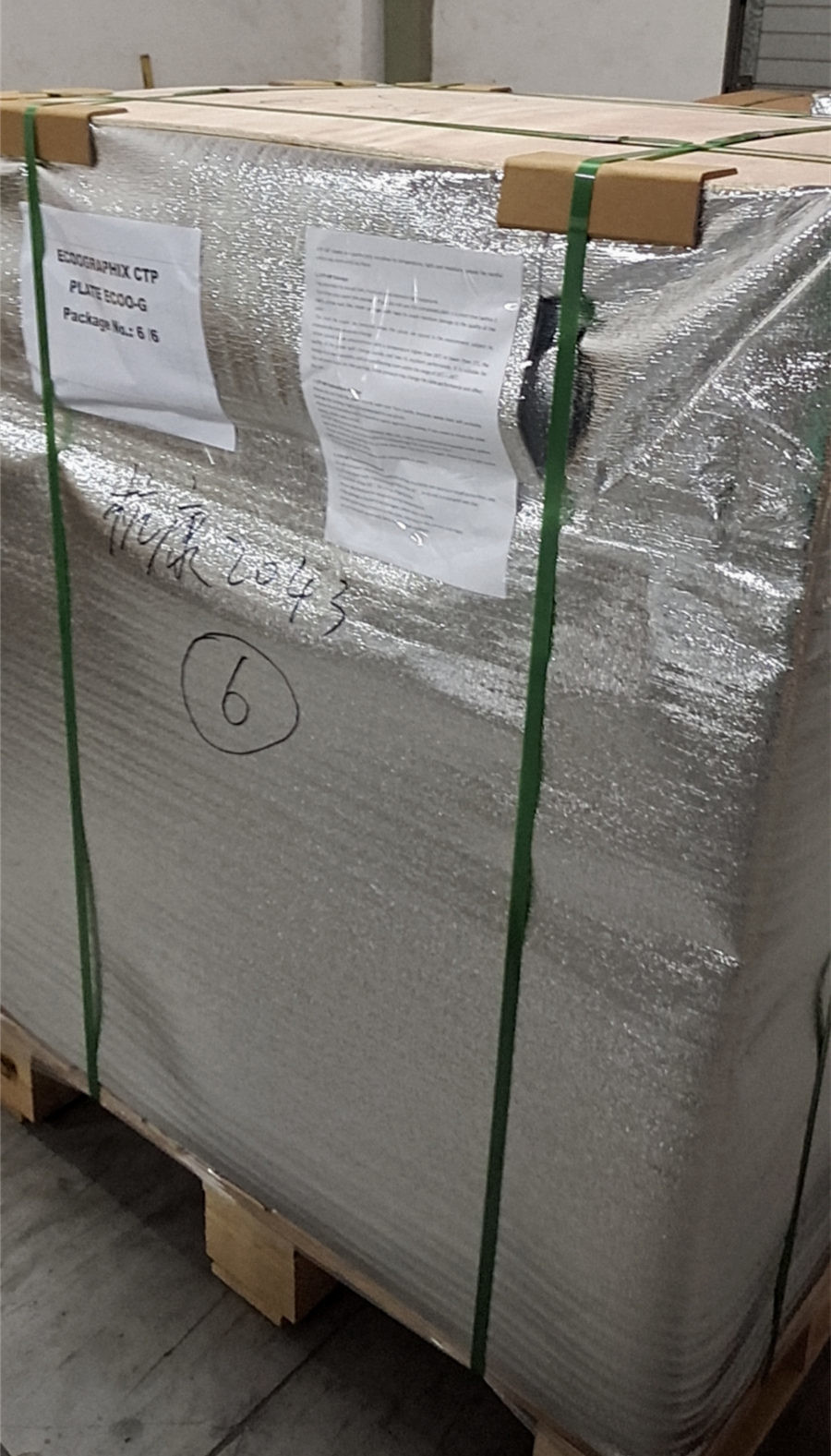

5. Plate Producing and Packing

  From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .





830nm Grey Aluminum 0.15mm CTP Offset Printing Plates 0



6. Our Partner and Customers feedback

830nm Grey Aluminum 0.15mm CTP Offset Printing Plates 1


7. FAQ





Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
