0.20mm Positive Thermal CTP CTCP Offset Printing Plate

1SQM
MOQ
Negotiable
Price
0.20mm Positive Thermal CTP CTCP Offset Printing Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Normal Sizes: 650x550x0.20mm
Spectral Sensitivity: 830nm
Thickness: 0.20mm/0.25mm/0.27mm
Plate Type: Positive Thermal CTP Printing Plate
Plate Color: Blue
Application: Offset Advertising Or Newspaper Printing
Packing: 50pcs/box
Expiry Dates: About One Year
High Light:

Thermal CTP Offset Printing Plates

,

Positive CTP Offset Printing Plates

,

0.40mm CTP Printing Plates

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO,SGS
Model Number: Ecoo-EX
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: Within 30days
Payment Terms: L/C, T/T
Supply Ability: 500,000SQM
Product Description

0.20mm Positive Thermal CTP CTCP Offset Printing Plate

High sensitivity,stable performance


1. Application

ECOO-EX New Thermal Positive CTP plate is specifically applied to a variety of commercial printing and newspaper printing,Large Size  Books,Posters or Brochures, which has properties of clear dot and gradation, quick ink- water balance, long run- length and adaptability and etc. Whether traditional or alcohol dampening, the plate outputs clean, clear and accurate color print.





2. Characteristic

1) High quality aluminum, composite grain and high press runs.

2) Capable of bright room operation.

3) High resolution and precise half tone dot reproduction.

4) High development tolerance level and convenient operation.





3. Specification


Model ECOO-EX
Plate No preheat required, positive working, thermal digital plate
Application Commercial, newspaper and packaging print applications
Gauge 0.15mm-0.40mm
Substrate Electrochemically grained and anodized lithographic aluminum
Coating Color Blue
Spectral Sensitivity 780 nm- 850 nm
Exposure Energy Required 110-130 mJ/cm2 (depend on imager type, configuration and resolution)
Resolution 1%- 99% @ 200 lpi or 10 micron stochastic (depend on capability of imaging device)
Developer

ECOO DV-T series developers

Dynamic supplement 80-120ml/㎡,Static supplement 100-120ml/h

Develop Temperature 24±1℃
Develop Time 25±5s
Run Length 150,000 impressions unbaked; 1,000,000 impressions baked; baking recommended when use of UV ink
Safelight Daylight handling
Shelf Life 18 months, with sealed package. Stored in a cool and dry environment, away from sunlight
Cost-effective A product with high productivity that extends laser life of image setter




Recommended Image Data



CTP model

Data

Kodak

trendsetters

LOTTEM 400(TH1.7) MAGNUS 400 Screen 8600S
Laser power 13-15W 270-280mw 17-19W 70-80 %
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that need set up

Focus/

Zoom

Focus/

Zoom

Focus/

Zoom

Focus/

Zoom



* Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.

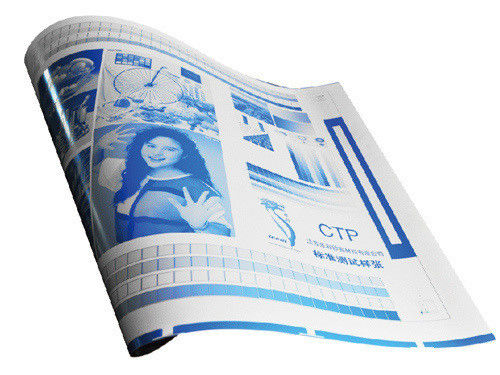

0.20mm Positive Thermal CTP CTCP Offset Printing Plate 0



4. Plate Producing and Packing

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

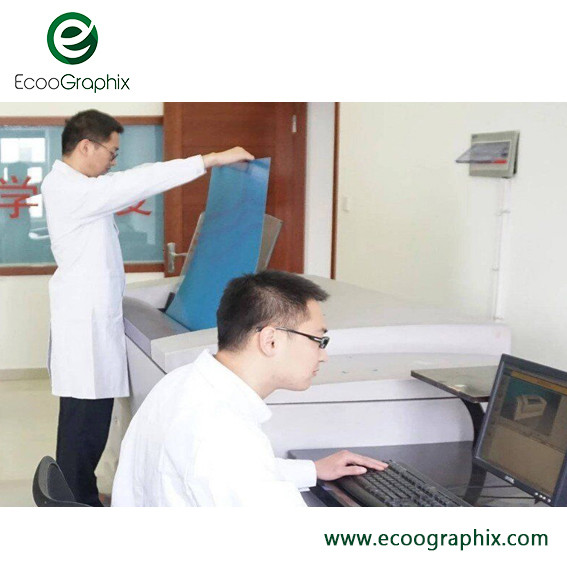

0.20mm Positive Thermal CTP CTCP Offset Printing Plate 1











5.Our Partner and Customers

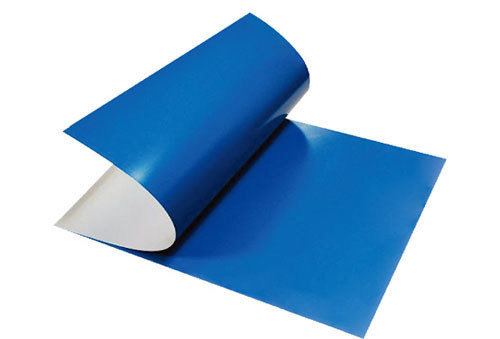

0.20mm Positive Thermal CTP CTCP Offset Printing Plate 2






6. About our company



EcooGraphix is a leading and professional Supplier for Prepress Solution ,  Printing Materials and  Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.


Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.

You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.




Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: What is the Minimum Order Quantity?

A: About 3000-5000 SQM
