1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls

1 set
MOQ
Negotiable
Price
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Format: 1400 Mm
Max. Speed: 300 M/min
Max Rewinding Dia.: 300 Mm
Max. Unwinding Dia.: 1200 Mm
Warranty: 1 Year
Application: Fax Roll, Cash Register Roll, ATM Roll, ECG Roll, POS Roll, Till Roll, MG Kraft Paper Roll
Highlight:

300mm Rewinding Diameter Slitting Rewinding Machine

,

1200mm Unwinding Diameter Paper Roll Slitter Rewinder

,

90-degree Vertical Lay-on Roller Thermal Paper Slitting Rewinding Machine
Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: ECOO 1400C
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 35 DAYS
Payment Terms: L/C,T/T
Supply Ability: 300 SET PER YEAR
Product Description

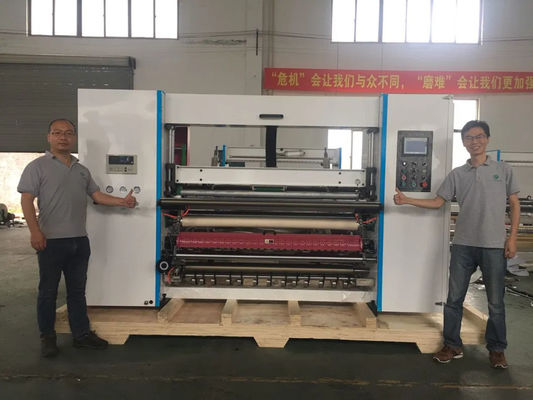

1400mm Thermal Paper Slitting Rewinding Machine
High-performance slitting and rewinding machine designed for fax rolls, cash register rolls, ATM rolls, ECG rolls, POS rolls, till rolls, and MG kraft paper rolls.
Technical Specifications
Parameter Value
Max. Rewinding Diameter 300mm
Min. Slitting Width 30mm
Max. Unwinding Diameter 1200mm
Max. Unwinding Width 1400mm
Max. Speed 300m/min
Unwinding Shaft 3" (76mm) air-expanding shaft
Rewinding Shaft 0.5", 1" (size customizable)
Total Power 5Kw
Voltage 380V/50Hz
Key Features
  • China's first 1400mm width thermal roll slitting machine
  • 55% higher small roll output compared to 900mm width machines
  • Shaftless hydraulic jumbo roll loading system
  • Photoelectric sensor or photocell for precise web guiding
  • 90-degree vertical lay-on roller for optimal performance
  • Banana roller prevents overlapping issues
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 0
Machine Components
Unwinding Section: Shaftless unwind stand with hydraulic jumbo roll loading, fully automatic tension controller, 20kg/m² electromagnetic brake from Taiwan, photoelectric sensor or photocell for web guiding, and direction adjustable balancing roller.
Slitting Section: Upper circular knives fixed by screws and lower circular knives fixed by aluminum spacer for precision cutting, rotary encoder for automatic slit length metering.
Rewinding Section: Automatic tucker for tail tucking, 90° vertical lay-on roller with up/down movement capability, banana roller to prevent overlapping.
Control System: Siemens PLC with touch screen HMI, Yaskawa AC drive for Siemens master motor, Schneider low voltage electrical components.
Waste Removal: Edge waste blower through expulsion tube.
Optional Accessories
  • Safety guard
  • 4-corner emergency switches
  • Transmission belt
  • Blower and shredder
  • Safety fence
1400mm Thermal Paper Slitting Rewinding Machine with 300mm Rewinding Diameter and 1200mm Unwinding Diameter for Fax and POS Rolls 1
