Hydraulic Shaftless Thermal Paper Slitter Rewinder

USD 30000 FOB Shanghai
Hydraulic Shaftless Thermal Paper Slitter Rewinder
Features Gallery Product Description Request A Quote
Name: Thermal Paper Slitter Rewinder
Max. Unwinding Width: 1400 Mm
Max. Unwinding Diameter: 1200 Mm
Max. Rewinding Diameter: 310 Mm
Max. Machine Speed: 210 M/min
Min. Slitting Width: 25 Mm
High Light:

hydraulic thermal paper slitter rewinder


shaftless paper slitting and rewinding machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE, SGS
Model Number: T-1400C
Payment & Shipping Terms
Packaging Details: standard package, dimension 3100*2100*1900mm
Delivery Time: 30-40 days
Payment Terms: L/C, T/T
Supply Ability: 600 set per year
Product Description

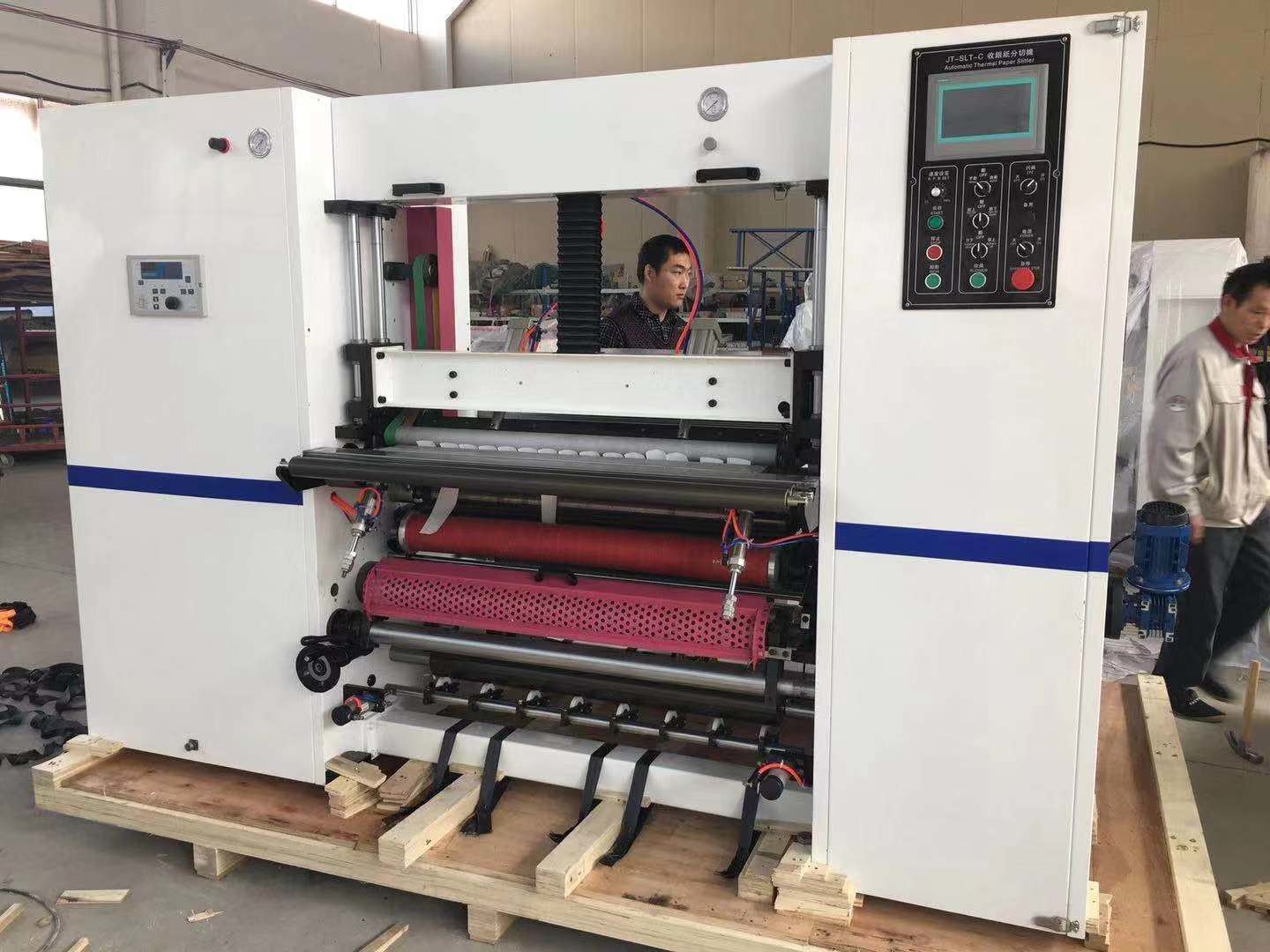

ECOO T-1400C Shaftless Thermal Paper Slitter Rewinder


Main Technical data


Model Type Ecoo-1400C
Max. Unwinding Width 1400mm
Max. Unwinding Diameter 1200mm
Max. Rewinding Diameter 310mm
Min. Slitting Width 25mm
Max. Machine Speed 210 m/min
Main Power 3.7Kw
Total Power 6kw
Unwinding Shaft Hydraulic Shaftless Unwinder to fix 3'' 6'' core
Rewinding Shaft 0.5'', 1'' or as your request
Weight 4000 kgs
Overall Dimension 3100*2100*1900mm



Hydraulic Shaftless Thermal Paper Slitter Rewinder 0
Application Material

All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trademarks, films and so on.

Unwinding Section

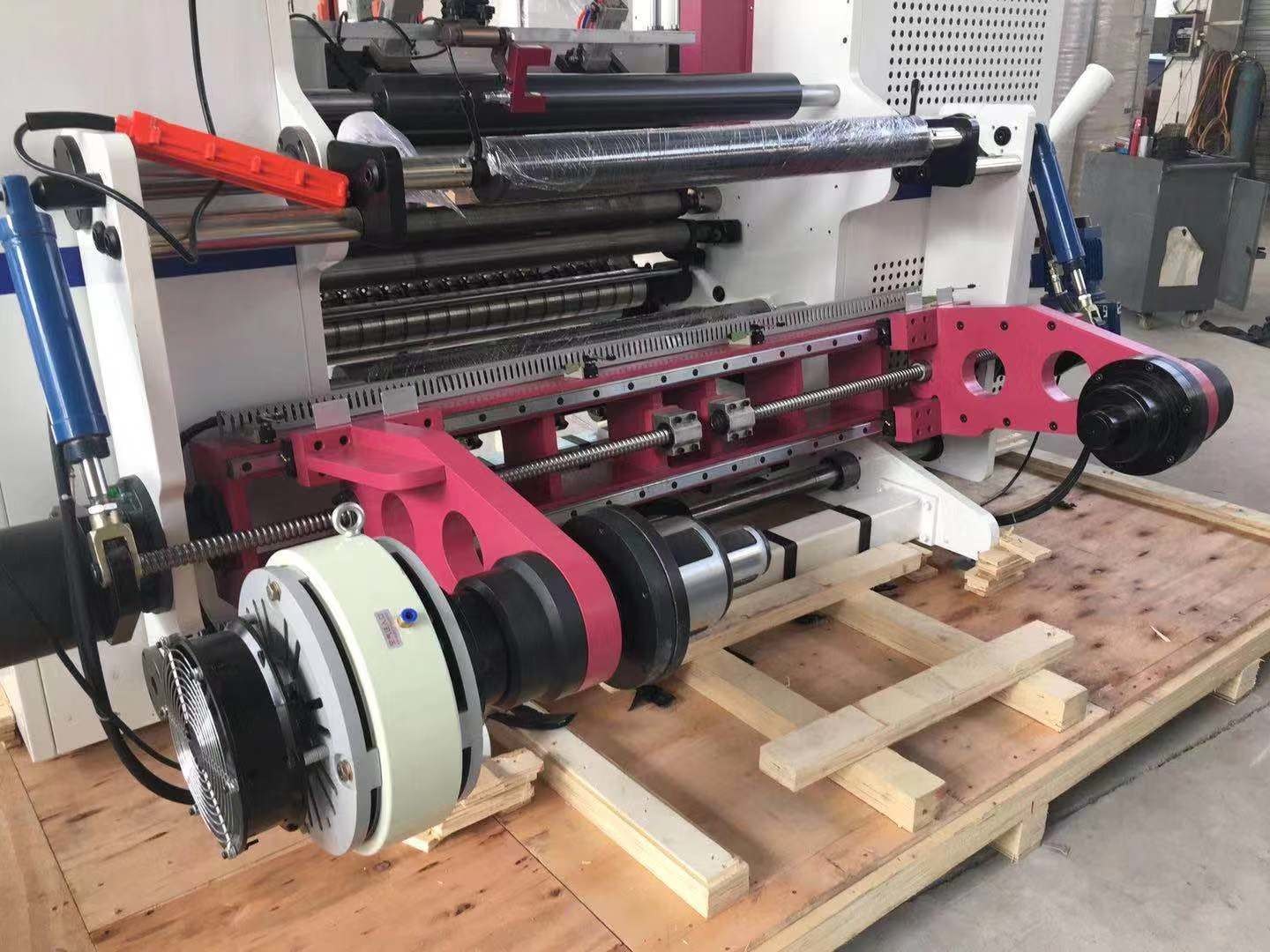

Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision

Slitting Section

Disc cutter

Cutter with adjustable and movable blade base.

Meter counter

Banana Roller which can avoid overlapping problem completely.

Rewinding Section

0.5",1" or as your request

Surface Rewinding technology, it adopts vertical method to press the rewinding roll

Electromagnetic Clutch from Taiwan

Surface Rewinding technology

Automatic cutting & gluing unit

Controlling Section

Siemens PLC & HMI from Germany

All the parameters are displayed on the monitor

Low voltage electrical appliances all from Schneider

Trimmed Waste

It adopts air blower to blow waste material off, the air blower power is 0.75kw.

Air blower pipe is more wear-resisting.


Safety guard for the slitting device.

Emergency Switches on the 4 corners of machine.
