Inverter Motors Self Adhesive Label Slitter Rewinder

Machine suits to the slitting of various ultra-large type coiled material, such as plastic film (PVC, OPP, PET, CPP), paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, non-woven fabrics, and other coiled materials slitting and rewinding.

Machine adopts Innovance PLC control system and HMI control, all the parameters are shown on the screen.

You only setup roll diameter, material thickness and original tension etc, the machine can work automatically.

It adopts 3 sets of Siemens Motor and 3pcs of YASKAWA Inverter. Main motor is 7.5KW which used for speed of material feeding and blade shaft. And 2pcs of Rewinder Motor, each is 11KW which controlled by PLC.

Machine adopts hydraulic loading system, it have hydraulic stand full fill oil, use the cylinder control the loading and unloading, this part controlled by separate motor.

Machine adopts rectify a deviation system, it controlled by separate correction motor, machine have four guide rail in unwinding stand four corn. It can be rectify a deviation for materials. The motor thrust around 3 tons, it is no problem with your materials.

Unwinder adopts Balance Roller which used to adjust the Material Tightness, if material is wrinkled when feeding, then you can adjust the balance roller to keep it balance!

All transmission shafts are dynamic/static balance treated.

It adopts automatic meter counter. When reached the preset length, machine stop and alarm automatically.

It adopts emergency switch.

Machine parts and wall through CNC processing, the wall more strong than before, it's thickness 50mm. And the painting adopts baking paint.

 - 3"(76mm) air expanding rewinding shaft
 - Hydraulic automatic lift-up loading system
 - Ultrasonic correction to get the very high precision
 - Electromagnetic Brake from Taiwan
 - Fully automatic tension controller
 - Balance Roller which used to adjust the Material         Tightness

 - Choices of Razor cutter or Disc cutter
 - Disc Cutter Assembly adopt the cam self-locking
 - Cutter with adjustable and moveable blade base
 - Meter counter
 - NIP Roller which controller by main motor

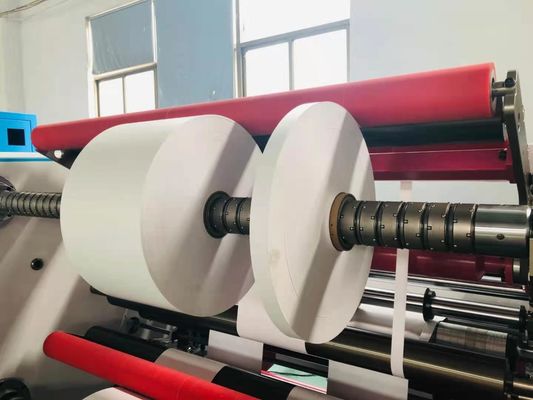

 - 3" air expanding rewinding shafts
 - Center Rewinding technology
 - Pressure Arm
 - Electromagnetic Clutch from Taiwan

 - Inovance PLC & HMI
 - All the parameters are displayed on the monitor
 - Low voltage electrical appliances all from Schneider

 - Edge Waste Blower with Expulsion Tube

 - 6'' and 12" Unwinding shafts
 - Shaftless type Unwinding Stand
 - Friction Differential Shaft for rewinding
 - Ultrasonic type Edge Position Control(EPC)
 - Safety guard for the slitting device
 - Emergency Switches on the 4 corner of machine


Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
