Thermal Negative Processless CTP Plate 0.30mm 100K Impressions

1000SQM
MOQ
Negotiable
Price
Thermal Negative Processless CTP Plate 0.30mm 100K Impressions
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Thermal Negative Processless Plate
Application: High Grade Commercial And Newspaper Printing
Thickness: 0.15mm / 0.30mm
Spectrum Scope: 800-850nm
Plate Type: Thermal-negative Type
Processing: Without Processing, Directly On Press
The Paper Number Of Start-up: <50 Sheets
Run Length: 100,000 Impressions
Shelf Life: 12 Months Under Recommended Condition
Highlight:

Thermal CTP plate 0.30mm thickness

,

Processless CTP plate 100K impressions

,

Negative CTP printing plate thermal
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE; ISO
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 500,000sqm per year
Product Description
EcooGraphix CTP Offset Printing Thermal Negative Processless Plate ECOO-G
Thermal Negative Processless CTP Plate 0.30mm 100K Impressions 0
Product Description

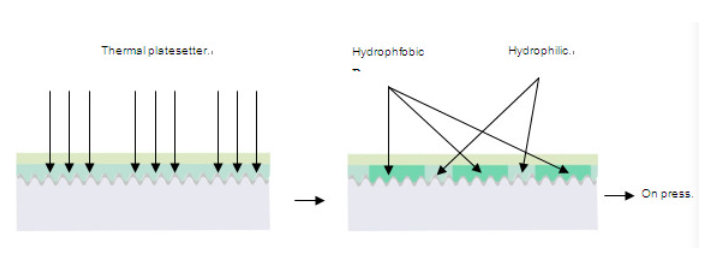

Introduction of plates
  • Double layer plate: emulsion layer on aluminum with protection layer above
  • Negative photopolymerization/cross-link emulsion layer for 800-850nm wavelength exposure
  • Compatible with all thermal CTPs on market (set exposure parameter to "negative")
  • Water-soluble polymer protection layer maintains high sensitivity
  • Important: Keep plate away from water, steam, or sweat materials
Thermal Negative Processless CTP Plate 0.30mm 100K Impressions 1
Recommended application to press procedures
  • Clean all inks on the blanket
  • Start press machine, apply water roller, run 30-40 seconds
  • Apply ink rollers 20-30 seconds
  • Apply paper and start print
Note: Longer operation of steps 2 and 3 will reduce paper waste
Thermal Negative Processless CTP Plate 0.30mm 100K Impressions 2
Specification
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/m²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended
Processing Without processing, directly on press
Run Length 100,000 impressions (actual depends on printing conditions)
Baking No recommended
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 830 nm
Coating color Grey
Shelf life 12 months under recommended condition
Transportation Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity
Storage Recommended condition: 18ºC-24ºC, 40%-50% RH
Comparison With Kodak Sonora XP
Model ECOO-G Kodak Sonora XP
Sensitive wavelength(nm) 800-850 800-850
Coating color Light gray Light green
Sensitivity (mj/cm2) 150 150
Exposure in safe light White light 1 hour; yellow light 24 hours White light 1 hour; yellow light 24 hours
After image contrast Can be spotted by eyes, but auto punching machine cannot recognize it Can be spotted by eyes, but auto punching machine cannot recognize it
Imaging device Normal thermal CTP device 1-99% @ 200lpi Normal thermal CTP device 1-99% @ 200lpi
Resolution 1-99% @ 200lpi (dependent on CTP capability) 1-99% @ 200lpi (dependent on CTP capability)
Run-length 100,000 impressions 100,000 impressions
Storage 12 month (under recommend environment) 12 month (under recommend environment)
Applied parameters in Imaging device
Data Kodak trendsetters LOTTEM 400(TH1.7) MAGNUS 400 Screen 8600S
Laser power 15-17W 300-320mw 19.5-21.5W 80-90%
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that Need set up Focus/Zoom Focus/Zoom Focus/Zoom Focus/Zoom
FAQ
Q1: Can I get the sample?
We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
It usually takes about 3 days to prepare the sample.
Q4: How many Square Meters CTP plates can feed one 20' container?
About 20000-25000SQM
Q5: Can I take my own brand and label on the packing?
Yes, we can provide the OEM with the customer's brand and label.
