Double-Layer Positive Aluminum Thermal CTP Plate for Long-Run Offset Printing

1000 Square Meters
MOQ
Negotiable
Price
Double-Layer Positive Aluminum Thermal CTP Plate for Long-Run Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminum
Type: CTP Plate
Style: Positive
Transport Package: Export Standard Packaging
Specification: Gauge: 0.15mm; 0.30mm
Long Impression: 400,000Unbaked； 1,000,000Baked
Exposure Energy: 120 - 150 Mj/Cm2
Resolution: 1% - 99% @400 Lpi
Coating: Blue
Highlight:

Double-Layer CTP printing plate

,

Positive thermal CTP plate 0.30mm

,

Offset printing CTP plate with warranty
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C,T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description

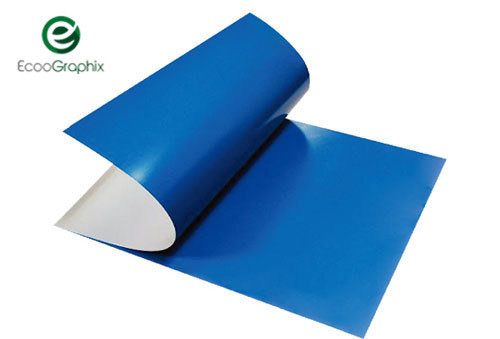

ECOO-ED Double-Layer Positive Thermal CTP Plate – Engineered for Long-Run Excellence


1. Application
The ECOO-ED double-layer thermal CTP plate is designed for high-volume offset printing without the need for baking. Its innovative dual-layer construction combines high sensitivity with superior chemical resistance, ensuring exceptional print quality and uninterrupted production even on the most demanding jobs. Compatible with AM and FM screening, it delivers stunning results for both commercial and packaging printing.

2. Specifications

General Information
Plate Model ECOO-ED
Plate Type Positive Thermal CTP Plate(Double Layer)
Application High-grade commercial and newspaper printing
Substrate Electrochemically Grained and Anodized Lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs Ordinary Ink: 100,000 to 200,000 impressions
UV Ink: 50,000 to 100,000 impressions
Exposing
CTP Plate-Making Machine
Plate setters		 Kodak: Trendsetter/Lotem/Magnus; Fuji: Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen: PT-R, Creo: Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm - Peaks 830nm
Resolution 1-99% at 200 LPI
Image color Blue
FM capability 20 micron stochastic
Image color Blue-green to Pale Green
Developing
Processor All kinds of Brands.
Developer Kodak Gold Star or our developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions

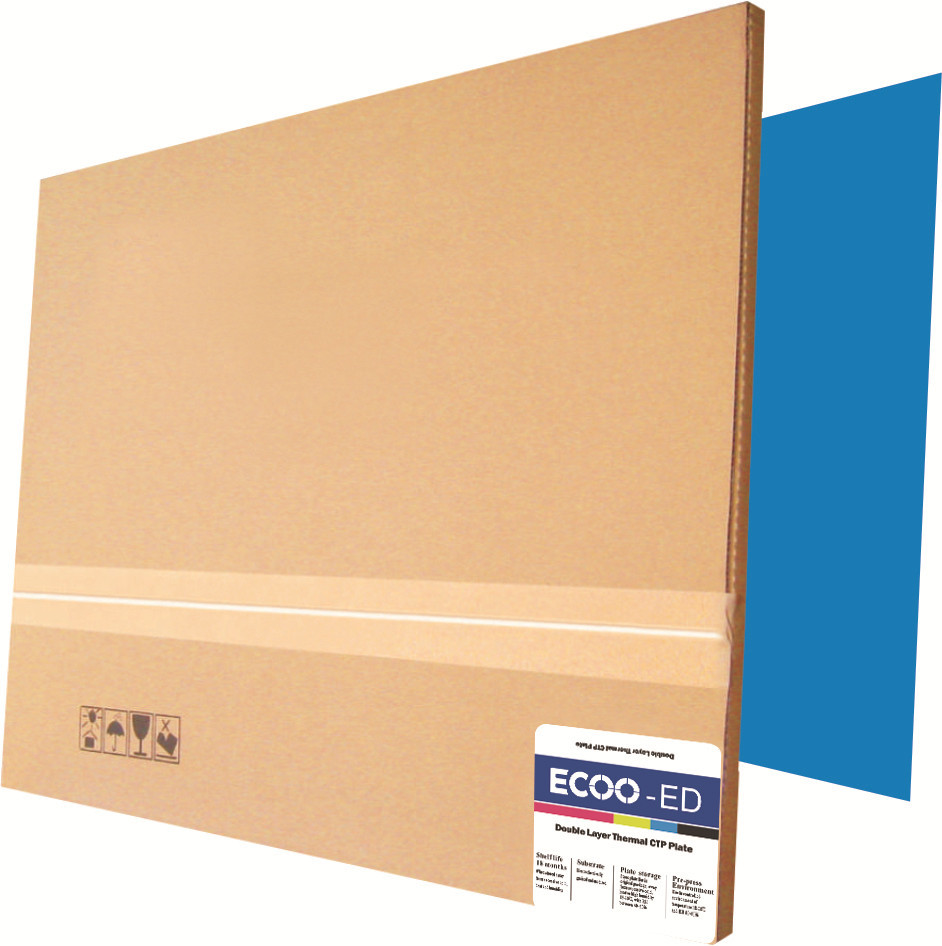

Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat, and humidity.

Why Choose ECOO-ED?

  • Unmatched Run Length: Achieve up to 100,000 impressions with conventional ink and 50,000 impressions with UV ink.

  • Proven Stability: Reliable, mature technology with wide processing tolerance.

  • Seamless Compatibility: Works flawlessly with all major plate setters, processors, and chemical solutions.

  • Superior Ink Resistance: Coating specially formulated for both conventional and UV inks.

  • Dual Screening Ready: Perfect for AM and FM applications.

Technical Highlights

  • Positive-writing thermal technology for precise image transfer

  • Patented double-layer system with chemical-resistant coating

  • Premium European aluminum substrate ensures consistent quality

  • Non-ablative coating preserves image integrity

  • Optimized for all major plate setter brands

Next-Level Printing Reliability
The ECOO-ED is the ultimate solution for printers seeking long-run efficiency, consistent quality, and durability. Upgrade your production and experience uncompromising performance with every plate.
