Flexible Digutal CTP Printing Plates For Carton Packaging And Labels

1 box
MOQ
Negotiable
Price
Flexible Digutal CTP Printing Plates For Carton Packaging And Labels
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Holds The Finest Detail Without The Need To Back Mask
Product Name: Flexible Digutal CTP Printing Plates
Applications: Suitable For Labels, Tags, Flexible Packaging, Sacks, Folding Carton, Films And So On.
Thickness: 1.14/1.70/2.28mm
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Digital Flexo Plates
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Delivery Time: 10-20 days
Payment Terms: L/C, T/T
Product Description



Digital Flexo Plate - Computer To Plate Directly


Digital Flexographic Plates deliver higher quality prints and increased productivity with excellent resolution and imaging capabilities for a wide range of substrates and applications. Ink transfer is enhanced to provide extremely smooth solids and crisp, clean runs.



Flexible Digutal CTP Printing Plates For Carton Packaging And Labels 0





Production Description:




Features:
1. Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used.
2. High resilience and good resistance towards mechanical impacts deliver excellent durability.
3. Increased productivity and data transfer without loss of quality due to digital workflow.
4. Excellent ink transfer using water and alcohol-based inks.
5. Cost effective and more environmentally friendly in processing, as no film is required.

Applications:
Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on.



Flexible Digutal CTP Printing Plates For Carton Packaging And Labels 1





Specification:




Technical Data:

Thickness
(mm / inch)
Hardness
(Shore Å)
Total Range
(%)
Screen Ruling
(LPI)
Minimum Isolated Line
(mm)
Minimum Isolated Dot
(mm)
1.14/0.045 75 1 - 98% 175 0.1 0.15
1.70/0.067 67 1 - 98% 175 0.1 0.15
1.70/0.067 55 2 - 95% 150 0.1 0.15



Recommended Processing Conditions:

Thickness
(mm/ inch)
Back exposure
(seconds)
Main exposure
(mins)
Wash out
(mm/mins)
Dry
(hours)
Post exposure
(mins)
Detack
(mins)
1.14/0.045 40-60 10-15 160-180 1.5-2 5 4
1.70/0.067 50-70 10-15 140-180 1.5-2 5 4
1.70/0.067 60-100 10-15 130-170 2-2.5 5 4



Flexible Digutal CTP Printing Plates For Carton Packaging And Labels 2



Flexible Digutal CTP Printing Plates For Carton Packaging And Labels 3





More Details:

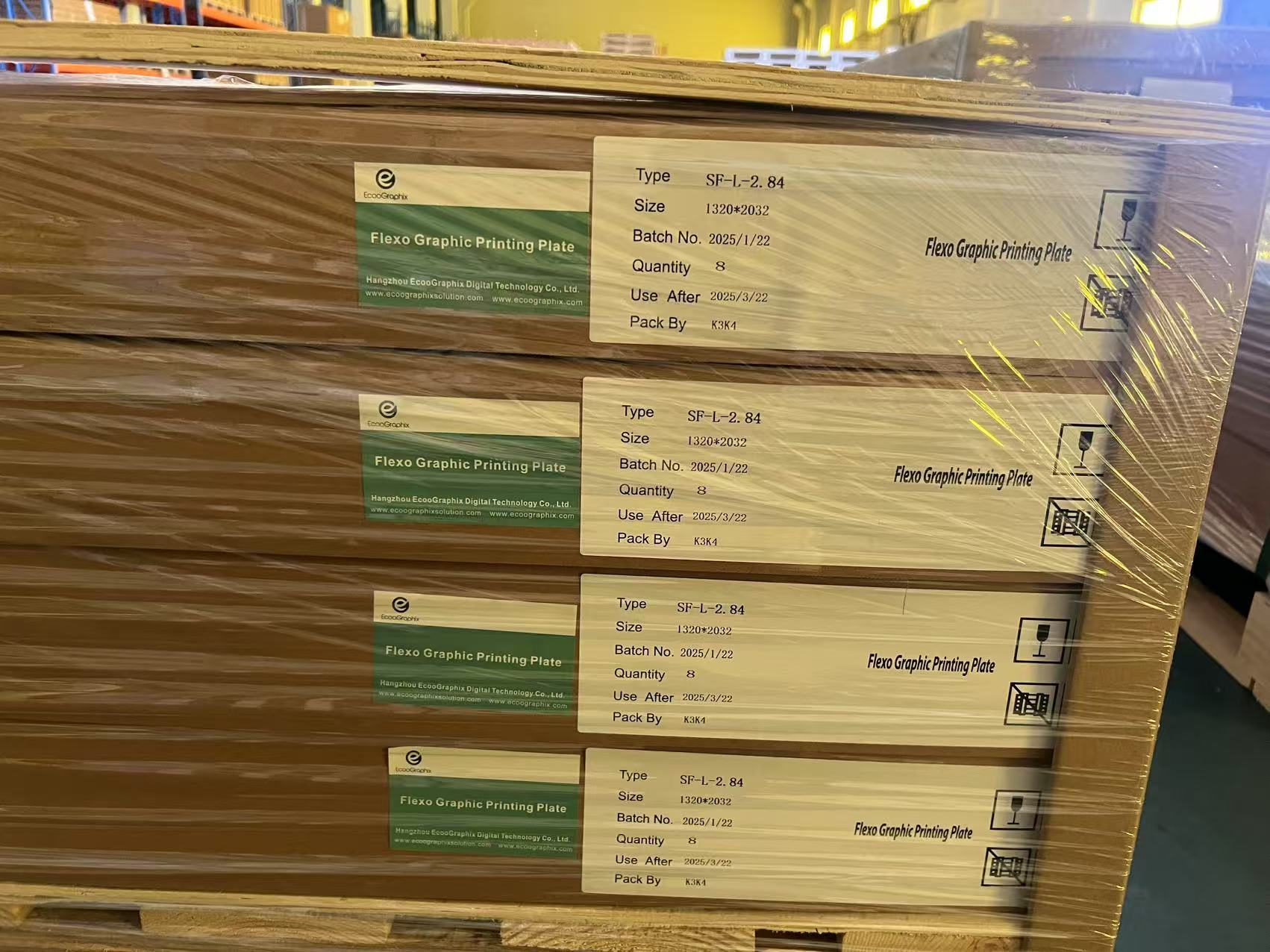

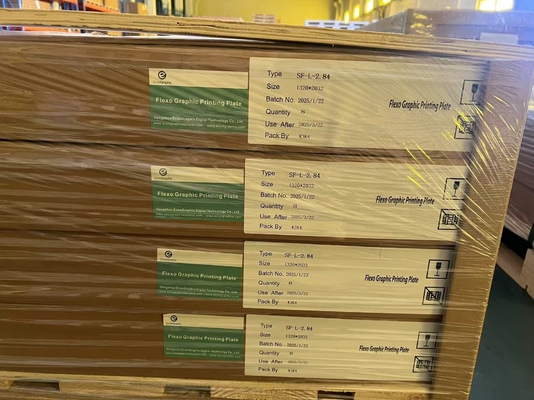

Delivery and Package
Any kinds of transpotation are workable for us. Usually the departure port is Shanghai port or Ningbo port. The flexo plate is packed in carton and place in harizon. Pakced in pallet to avaoid any damaging or hurt.
