Two Color Perfector Offset Printing Machine For Bills Or Exercise Books

                               Two Color Perfector Offset Printing Machine for Bills or Exercise Books

Instructions:

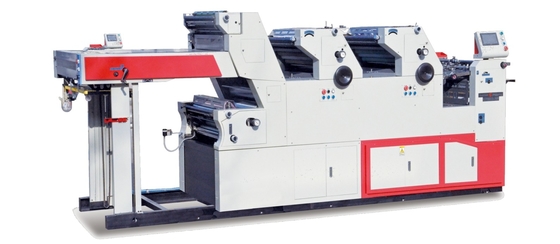

CF262D is the brand new Two-Color A1 Size Double Side Book Offset Printing Press made in China. Our factory has over 20years'experience of producing the single or two colors offset printing machine with hundreds of installations all over the world. The press gains customers' recoganition by reliable quality and competitive price.

Features:

1 High speed paper separation mechanism
2 Mechanical double sheet inspection
3 Alloy steel gear
4 Precision tapered roller bearings for printing cylinders adopts
5 Grippers closed at cam's high point, open type impressing transfer cylinders
6 Plate positioning system
7 Remote plate cylinder axial and circumferential adjustment
8 Reserved assembly space for diagonal plateadjusting
9 Visual human-machine interface operatingsystem
10 Automatic safety and fault detection system
10 Pneumatic control for ink rollers and dampening rollers, and impressing
11 Anti-static device
12 Alcohol dampening system and solution-ink control system
13 Ultrasonic double-sheets controller
14 Side gauge fine-tuning
15 Mobile sheeting supporting



MAIN CONFIGURATION:









1) the PLC for this machine is Panasonic from japan, it is of long life time. As you know, the program like the heart for a person, it is very important.so this part we use the famous brand panasonic, and we could supply all- life guarantee.
And the program is made by company,it is easy to use and change.

2) Automatic oil supply system, you don`t need to oil the machine by hand, you just set it in the touch screen, for example, you could set when the machine run 2000 runs, then it will oil to the gear and spare parts automaticly.

3)The motor is wannan, and we supply the all-life change service. No matter how many years you use our machine, if
there is problem, then we could repair and change for you freely.

4) The feeder guide is from hamada machine, and it is much heavier and stronger, even machine working, it will not easy to moving around, it could keep the printing of high precision.
