Small Format 4-Color Book Offset Printer
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Offset Printing Machine
Max. Sheet Size(mm): 660 X 480; 740 X 540
Min. Sheet Size(mm): 273 X 393; 273 X 393
Paper Thickness(mm): 0.06-0.6
Max. Image Area(mm): 650 X 468; 730 X 528
Plate Size(mm): 675 X 560; 755 X 677
Blanket Size(mm): 740 X 680 X 1.9; 740 X 760 X 1.9
High Light:

3 Plies Paper Straw Making Machine

,

Dia 20mm Paper Straw Making Machine

,

Paper Straw Making Machine 60m/Min

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO JY 644 / JY 744
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 Small Format 4-Color Book Offset Printer








=====================================================================================================

▄█ ▄█ ▄█ ▄█ ▄█   Introduction   █▄ █▄ █▄ █▄ █▄





It is equipped with CC-LINK technological bus module from Mitsubishi. Double-diameter impression cylinder and transfer drum can reduce the times of sheet take-over between print units. The plate cylinder can be adjusted in the circumferential direction, lateral direction and diagonal direction.








=====================================================================================================


▄█ ▄█ ▄█ ▄█ ▄█   Specification   █▄ █▄ █▄ █▄ █▄

Model Unit
ECOO JY 644; ECOO JY 744


Max. Sheet size(mm)
660 x 480; 740 x 540


Min. Sheet size(mm)
273 x 393; 273 x 393

Paper thickness(mm)
0.06 - 0.6; 0.06 - 0.6


Max. Image area(mm)
650 x 468; 730 x 528

Plate size(mm)
675 x 560; 755 x 677


Blanket size(mm)
740 x 680 x 1.9; 740 x 760 x 1.9

Max. Feeder pile height(mm)
940; 940


Max. Delivery pile height(mm)
780; 780

Motor power(kw)
23; 23


Machine size(mm)
7380 × 2470 × 1950; 7380 × 2550 × 1950

Weight(kg)
18700; 19700

Small Format 4-Color Book Offset Printer 0



A2 Offset Printing Machine
Model ECOO JY 644 ECOO JY 744
Max. Sheet size(mm) 660 x 480 740 x 540
Min. Sheet size(mm) 273 x 393 273 x 393
Paper thickness(mm) 0.06 - 0.6 0.06 - 0.6
Max. Image area(mm) 650 x 468 730 x 528
Plate size(mm) 675 x 560 755 x 677
Blanket size(mm) 740 x 680 x 1.9 740 x 760 x 1.9
Max. Feeder pile height(mm) 940 940
Max. Delivery pile height(mm) 780 780
Motor power(kw) 23 23
Machine size(mm) 7380 * 2470 * 1950 7380 * 2550 * 1950
Weight(kg) 18700 19700




=====================================================================================================


▄█ ▄█ ▄█ ▄█ ▄█   Configurations   █▄ █▄ █▄ █▄ █▄

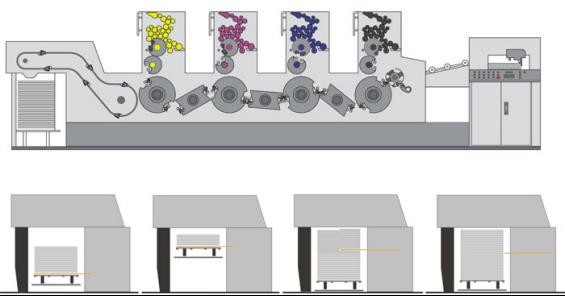

 Double diameter impression and paper transfer cylinder

Semi-automatic plate loading(unloading and loading of four plates for 2 minutes and 40 seconds)

 Computer automatic pressure regulation(paper pressure preset)

Computer ink control

 CIP3 interface

Radial axial oblique electric plate drawing

 Parallel double cylinder pneumatic clutch pressure

Vacuum suction paper conveyor ultrasonic double sheet detection

 Ink outlet roller motor direct drive

Electronic powder spraying

 Industrial bus(CC-Link) electrical system

High-precision photoelectric punching machine

 Stainless steel thermal spraying treatment on the surface of impression and plate cylinder

English version of operation procedure and interface

 Export-oriented packaging







=====================================================================================================



▄█ ▄█ ▄█ ▄█ ▄█   Details   █▄ █▄ █▄ █▄ █▄



Small Format 4-Color Book Offset Printer 5 Small Format 4-Color Book Offset Printer 6

Feeder:

- Conjugated cam. Forwarding mechanism controlled by linear guide rail makes machine speed faster and more stable.
- Rotary valve with patent can clean paper dust automatically and reduce the fault.

Printing Units:

- Both of frame and base are integral casting.
- High frequency quenching of gears guarantee transmission accuracy.
- Helical gears, high overlap coefficient and low noise.
Small Format 4-Color Book Offset Printer 7 Small Format 4-Color Book Offset Printer 8
Cylinders:

- The surface on the impression cylinders and plate cylinders are sprayed stainless steel so as to prolong press life better.
- Dynamic balance design can reduce vibration during printing.

Console:

- The press memory or job memory card(disk) can save the current job. Changes and settings made to the current job are transferred to the press. While in printing mode, you can enter the presetting values for next job into the press
memory or stored to a disk.
- CIP3/CIP4

Small Format 4-Color Book Offset Printer 9 Small Format 4-Color Book Offset Printer 10

Pneumatic Clamp Bar, Change Plate Without Tools:

- Tension of clamp bar is controlled by imported hoses and disc springs, so that it is more flexible for operation.
- Corners of cylinders are controlled by high precision encoder. Plates will be installed and dismounted by program automatically. Thus it can meet the long version and short version edition of the printing business needs.
- The tail of clamp bar is separated, so that it can help paper more smooth.

Ink Amount Control Console:

- Every ink key in every unit can be set by console.
- Ink amount can be displayed in digital and can be saved.
Small Format 4-Color Book Offset Printer 11 Small Format 4-Color Book Offset Printer 12 Small Format 4-Color Book Offset Printer 13

Accurate Grippers:


- After checkered high strength steel pads had been quenched, their life will be longer and replacement will be more conveniently.
- Wear-resistant soft pads ensure stability of paper handover and precision of paper transmission.
- High precision needle roller bearings and opening bearings improve stability of gripper system.

Automatic Device For Adjusting Paper Thickness:

- It is equipped with gear driven. Distance between cylinders can e given some feedback to screen by potentiometer automatically.
- Permanent magnetic generator driven can ensure stability of printing pressure, because of large torsion and strong self-lock.
- It is easier and more convenient to input paper thickness on the screen directly.

Vacuum Suction Feeder Table:

- Imported air pump with large volume.
- It is suitable for all paper in any types or size automatically, so as to change paper format more quickly and more easily.
- Ultrasonic double-sheet detector can protect cylinders better.








=====================================================================================================


▄█ ▄█ ▄█ ▄█ ▄█   Producing And Packaging   █▄ █▄ █▄ █▄ █▄





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Small Format 4-Color Book Offset Printer 14








=====================================================================================================



▄█ ▄█ ▄█ ▄█ ▄█   Certificates   █▄ █▄ █▄ █▄ █▄





Small Format 4-Color Book Offset Printer 15










=====================================================================================================



▄█ ▄█ ▄█ ▄█ ▄█   FAQ   █▄ █▄ █▄ █▄ █▄







Q1: What are your main products ?



A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.





Q2: Where is your factory ?


A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!





Q3: How long is the lead time ?


A: The lead time is normally 30 days. We can accelerate for emergency cases.





Q4: Is there any certification for your machine ?


A: Yes, all our machines have been certified by SGS and CE.





Q5: How long is the warranty period ?


A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.





Q6: What is your normal payment term ?


A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.





Q7: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
