Name: A2 Format Four Colors Offset Printing Machine CF462
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: CF462
Price: 40000 USD
Availability: InStock

A2 Format Four Colors Offset Printing Machine CF462

1 set

MOQ

$40000 per set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Item: Offset Printing Machine

Model: CF462

Max. Sheet Size: 620mm*450mm

Min. Sheet Size: 90mm*140mm

Max. Speed: 2000-6000 Rph

Max. Printing Area: 605mm*440mm

Printing Substrate: 17-250 Gsm

Power: 5000 Kw

Colors: 4 Colors.

Option: Coading Or Numbering

Highlight:

four-colors offset printing machine

A2 format printing machine

A2 format offset printing machine

Basic Infomation

Place of Origin: ORIGIN

Brand Name: Ecoographix

Certification: ISO 9001, CE

Model Number: CF462

Payment & Shipping Terms

Packaging Details: wooden case sea-worthy package

Delivery Time: 60 days

Payment Terms: L/C, T/T

Supply Ability: 200 sets each year

Gallery

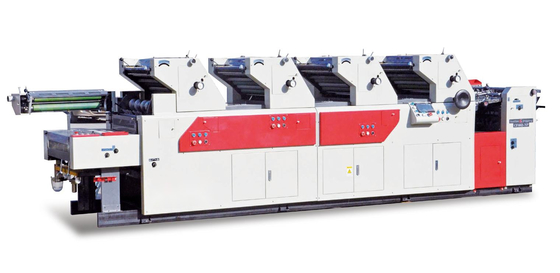

A2 Format Four Colors Offset Printing Machine CF462

Product Description

A2 format 4-colors offset printing machine-CF462

Brief introduction

A2 Format Four Colors Offset Printing Machine CF462 0

This offset press is made with fine workmanship on the basis of high quality 62-series, in addition to all the functions of 62 series, they have improved inking system, more form rollers and vibrating rollers, uniform ink distribution can ensure high printing quality needed for full printing, make short run color printing simple, easy and smooth, the printed products are more beautiful. So they are economical and practical printing machines.

Technical data

A2 Offset Printing Machine
Model	Ecoo-CF462
Max. Sheet size(mm)	620X450mm
Min. Sheet size(mm)	90X140mm
Maximum printing area	605*440mm
Paper type	17-250gsm
Number of ink rollers	Main machine system :14 pieces(3 form rolller) NP system 6 pieces 2 form rollers
Number of dampening rollers	4 pieces (1 form rollers)
Registration mechanism	Roller type side lays
Printing speed	2000-6000 sheets/hour
Motor power	Main motor: 5KW/220V Air pump motor:0.55KWX4/380V
Weight	3200KG

Main section and function

the PLC for this machine is Panasonic from japan, it is of long life time. As you know, the program like the heart for a person, it is very important.so this part we use the famous brand panasonic, and we could supply all- life guarantee.

And the program is made by company,it is easy to use and change.

2) Automatic oil supply system, you don`t need to oil the machine by hand, you just set it in the touch screen, for example, you could set when the machine run 2000 runs, then it will oil to the gear and spare parts automatic.

3)The motor is best in china, and we supply the all-life change service. No matter how many years you use our machine, if

there is problem, then we could repair and change for you freely

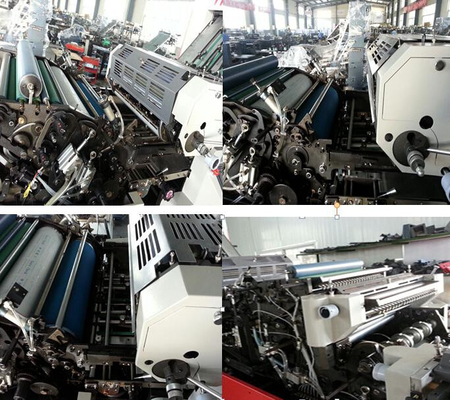

A2 Format Four Colors Offset Printing Machine CF462 1

A2 Format Four Colors Offset Printing Machine CF462 2

A2 Format Four Colors Offset Printing Machine CF462 3

A2 Format Four Colors Offset Printing Machine CF462 4
