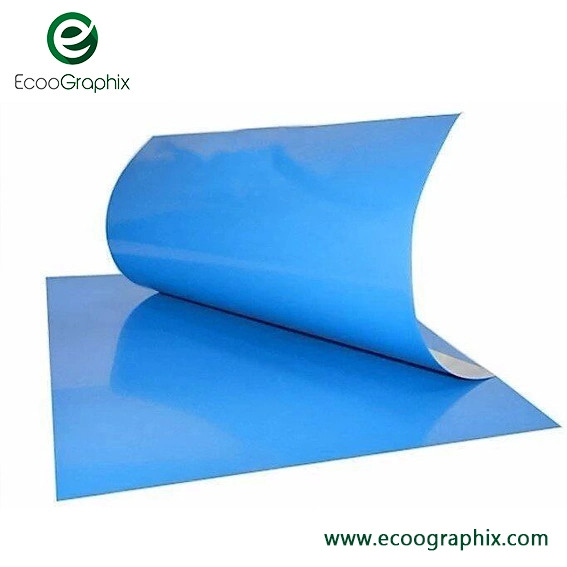

Chemistry Free UV Negative CTP Printing Plates for Commercial and Newspaper Printing
Production Despription
Non-ablation UV-negative type -- ECOO-H
Detail Photos
Product Paremeters
| Model |
ECOO-H |
| Plate Type |
Non-ablation UV-negative type |
| Application |
High grade commercial and newspaper printing |
| Substrate |
Electrolyte graining and Anodized AL substrate |
| Thickness |
0.15mm / 0.30mm |
| Maximum short grain width |
Maximum width 1280 mm |
| Photosensitive wave length |
405 nm |
| Platesetter |
Various dominant UV platesetters in the market |
| Image color |
Gray |
| Low-energy imaging |
20 mj/ cm² |
| The period of latent image stabilization |
≤7 days |
| Recommended screen method |
1-99 @200 Lpi AM / 20u FM and mixture |
| The paper number of start-up |
<50 sheets |
| Safety light |
1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light |
| Processing |
Without processing, directly on press |
| Run Length |
100,000 impressions
Actual run length depends on printing conditions
|
| Shelf life |
12 months under recommended |
| Transportation |
Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity |
| Storage |
Recommended condition: 18℃~24℃, 40%-50% RH. |
Certifications
Our Advantages
1. High-quality aluminum substrate and unique-grain processing technology. The substrate grain is uniform fine, which ensures the exact dot reproduction and excellent printing adaptability of the printing plate.
2. The professional formula design with infrared laser sensitive phase-change layer ensures that the plate can be put on press directly after exposure.
3. High sensitivity, wide tolerance, screen dots with margin sharpness
4. Excellent printability, fast-inking balance, suitable for high-grade commercial and packaging printing.
5. Compatible with various dominant thermal platesetters in the market, suitable for manual and automatic loading system.
6. Bright room operation in which people can operate safely under fluorescent lamp.
7.Stable quality.
8. A variety of the plates provided with thickness from 0.15mm to 0.40mm.
Our Clients
We have a large and diverse customer base across the globe, with clients in many different countries and regions. Our extensive experience working internationally allows us to cater to various needs and provide tailored solutions to businesses worldwide.
FAQ
1. Q: How long is the lead time?
A: The lead time is normally 45 days.
2. Q: Do you offer free plate samples?
A: Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee to collect.
3. Q: How do you guarantee stable quality?
A: There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing. The production is mature. It is not a new product to us.
4. Q: Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
A: Yes. CTP machine, processors, violet plate, CTP-CTCP plate, chemistry(fountain solution, roller wash, etc.) are all available to make your purchase more easily.
5. Q: Payment term?
A: Normally, 30% T/T deposit, 70% T/T before shipping, or LC at sight.
6. Q: Is refrigerating container necessary for shipment?
A: No. The plate is relatively stable and mature. So normal container is enough unless some ertreme hot situations.
