Name: High Photosensitive Speed Aluminum CTP Positive PS Plate
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-PS
Price: 34.35 USD
Availability: InStock

High Photosensitive Speed Aluminum CTP Positive PS Plate

1000 Square Meters

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: Positive PS Plate

Resolution: 1-99% @ 300LPI

Length Of Run (Unbaked): 50,000 To 100,000 Impressions

Length Of Run (Baked): Over 100,000 Impressions

Gauges: 0.15mm, 0.20mm, 0.25mm, 0.30mm And 0.40mm

Developing Time: 20-30 Sec

Processing Speed: 0.80 - 1.20 M/min

Safelight: Handle Under Yellow Safe Light (UV Free)

Highlight:

High Photosensitive Speed PS Plate

Aluminum CTP Positive PS Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-PS

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 2,000,000 Sqm Per Year

Gallery

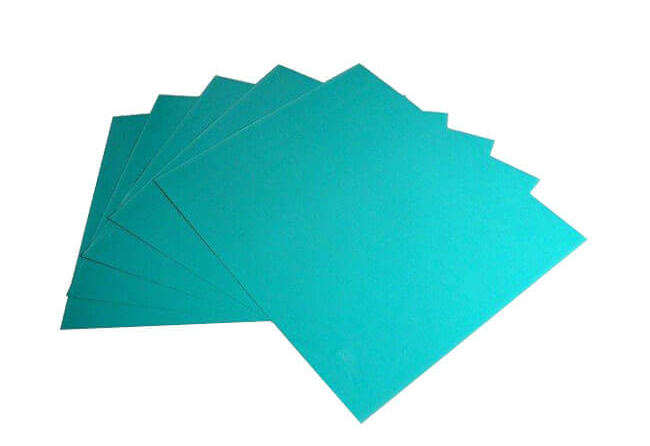

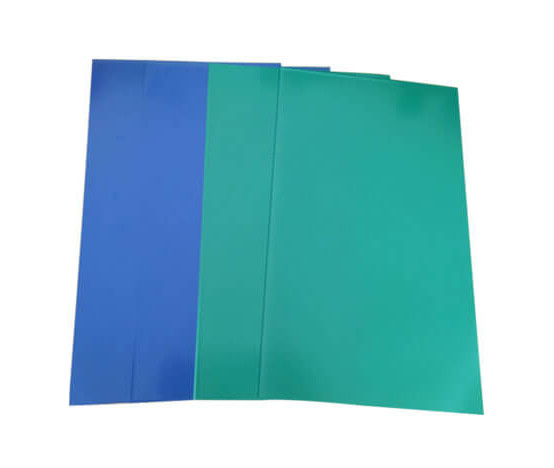

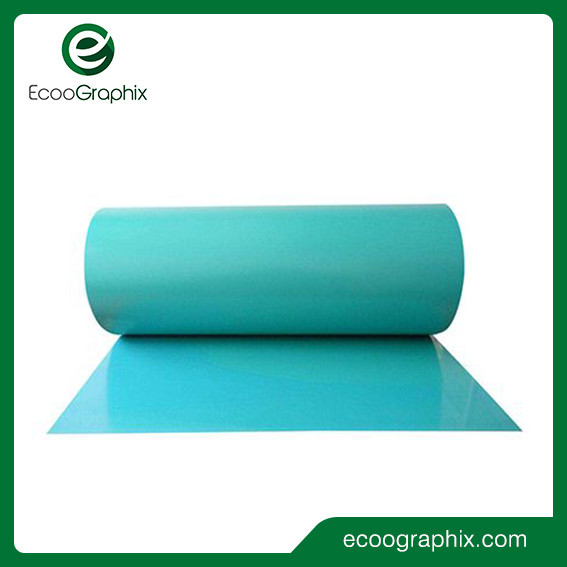

High Photosensitive Speed Aluminum CTP Positive PS Plate

Product Description

EcooGraphix Long Run Positive PS Aluminum Plate CTP Plate

Characteristic

Uniform surface coating and high photosensitive speed.

High resolution and higher press run.

Precise half-tone dot reproduction.

Faster exposure and good stability.

Specification

Model	ECOO-PS
Plate Type	Positive PS Plate
Application	Commercial and newspaper printing
Substrate	Electro chemically grained and Anodized lithographic aluminum
Gauge	0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1280 mm
Power of light	3,000-5,000 w
Length of Run	Unbaked: 50,000 to 100,000 impressions; Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
Processor	All brands or Manual
Aluminum	Standard 1050 Alloy
Developing time	20-30 sec
Spectral Sensitivity	320-405 nm
Resolution	1-99% @ 300LPI
Image Color	Green
Developer	Any positive plate developer or our own developer
Processing temperature	20-25ºC
Processing Speed	0.80 - 1.20 m/min
Safelight	Handle under yellow safe light(UV free)
Shelf life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing	Stored in a cool and dry environment, away from excessive cold, heat and humidity

Application

EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
