Name: 0.15mm/ 0.30mm Non Ablation Thermal Negative CTP Printing Plates
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: Thermal CTP Plate

Low-Energy Imaging: 130-150 Mj/Sqm

Run Length: 100, 000 Impressions

Thickness: 0.15mm/ 0.30mm

Coating Color: Grey

Resolution: 1-99% @200 Lpi Am/ 20u FM And Mixture

Maximum Short Grain Width: Maximum Width 1280 Mm

Shelf Life: 12 Months Under Recommended Storage Conditions

Highlight:

0.30mm Thermal Negative CTP Printing Plates

0.15mm Thermal Negative CTP Printing Plates

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-G

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 300,000 Sqm/Year

Gallery

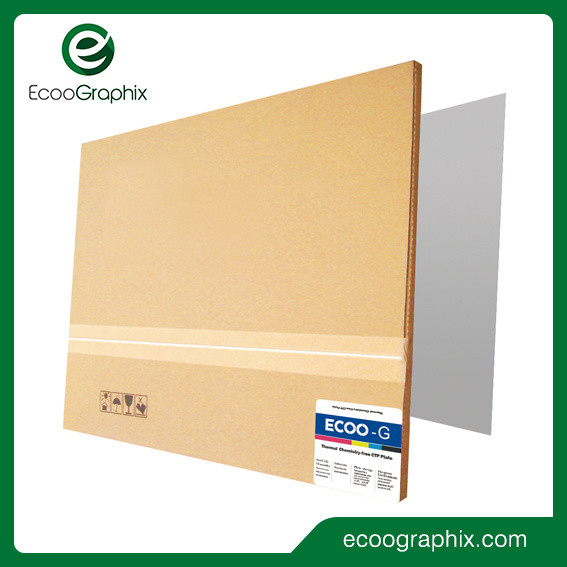

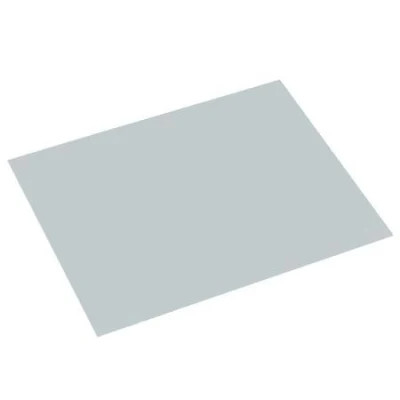

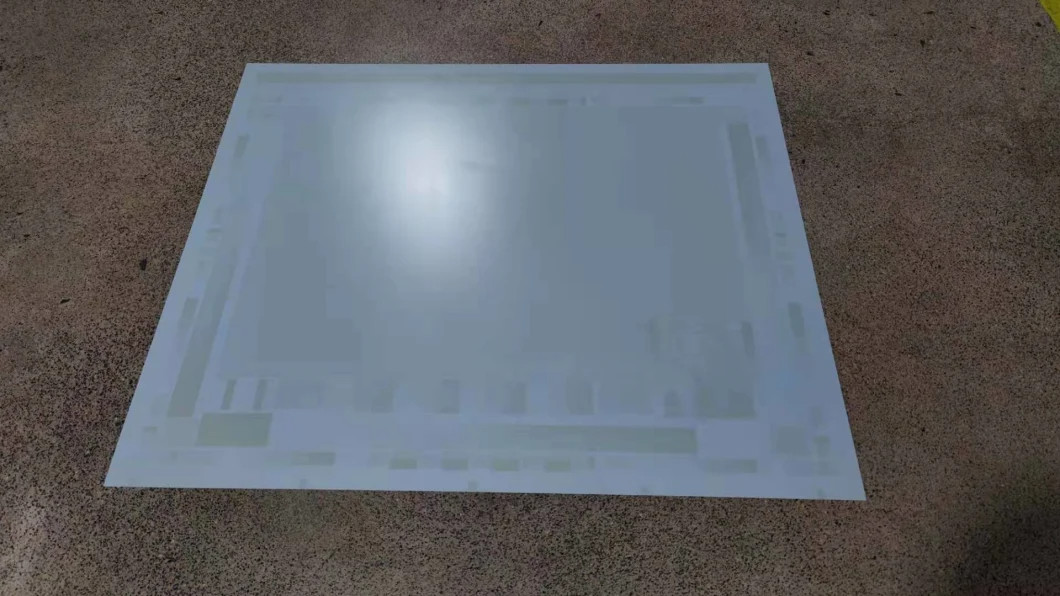

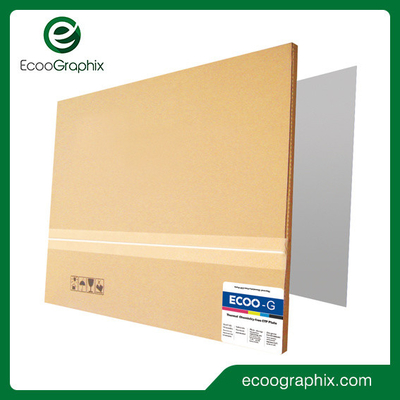

0.15mm/ 0.30mm Non Ablation Thermal Negative CTP Printing Plates

Product Description

Non-ablation Thermal Negative CTP Offset Printing Plate

Characteristics

ECOO-G is a double layer, and the emulsion layer will not dissolve in water,

so it will not integrate into the fountain solution.
while the protection layer is well water-soluble,

and it will be easily dissolved into the fountain solution.

Specification

Model	ECOO-G
Plate Type	Thermal-negative type
Application	High-grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm/ 0.30mm
Maximum short grain width	Maximum width 1280 mm
Spectrum scope	800-850 nm
Photosensitive wavelength	830 nm
Platesetter	Various dominant thermal platesetters in the market
Coating color	Grey
Low-energy imaging	130-150 MJ/cm²
The period of latent image stabilization	≤ 7 days
Recommended screen method	1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up	< 50 sheets
Safety light	4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing	Without processing, directly on the press
Run Length	100,000 impressions; Actual run length depends on printing conditions
Shelf life	12 months under recommended condition
Transportation	Packed in seal and stored using prevention from light, moisture, overheating, and high humidity
Storage	Recommended condition: 18ºC-24ºC, 40%-50% RH.

Applied Parameters in Imaging Device

CTP model Data	Kodak trendsetters	LOTTEM 400(TH1.7)	MAGNUS 400	Screen 8600S
Laser power	15-17W	300-320mw	19.5-21.5W	80-90 %
Drum speed	250-300rpm	850-900rpm	400-450rpm	800-900rpm
Resolution	Customized	Customized	Customized	Customized
Parameter that needs set up	Focus/ Zoom	Focus/ Zoom	Focus/ Zoom	Focus/ Zoom

*Note: Higher exposure energy will make the image contrast clear, and benefit to

the plate run length; while over high/low exposure energy will affect the image quality negatively.

♦ Application

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate.
It can be run directly on a printing press after imaging, without a need for chemical processing.

Recommended application to press procedures of ECOO-G:
1] Clean all the inks on the blanket;
2] Start the press machine, apply the water roller, and run for 30-40 seconds;
3] Apply the ink rollers 20-30 seconds;
4] Apply the paper and start print.

Remark: If steps 2 and 3 are longer, the paper will be wasted less.

♠ Success Case
