Durable Positive Thermal CTP Printing Plates Double Layers

1000 Square Meters
MOQ
Negotiable
Price
Durable Positive Thermal CTP Printing Plates Double Layers
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Printing Plate
Application: Commercial, Newspaper And Package Printing
Exposure Energy: 120 - 150 Mj/Square Centimeter
Length Of Run (Unbaked): 400, 000 Impressions
Length Of Run (UV Ink): 100, 000 Impressions
Processing Speed: 0.80 - 1.20 M/Min
Coating Color: Blue
Developer: ECOO DV-T Series Developer
Highlight:

Double Layers CTP Printing Plates

,

Positive Writing CTP Printing Plates

,

Thermal CTP Printing Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description

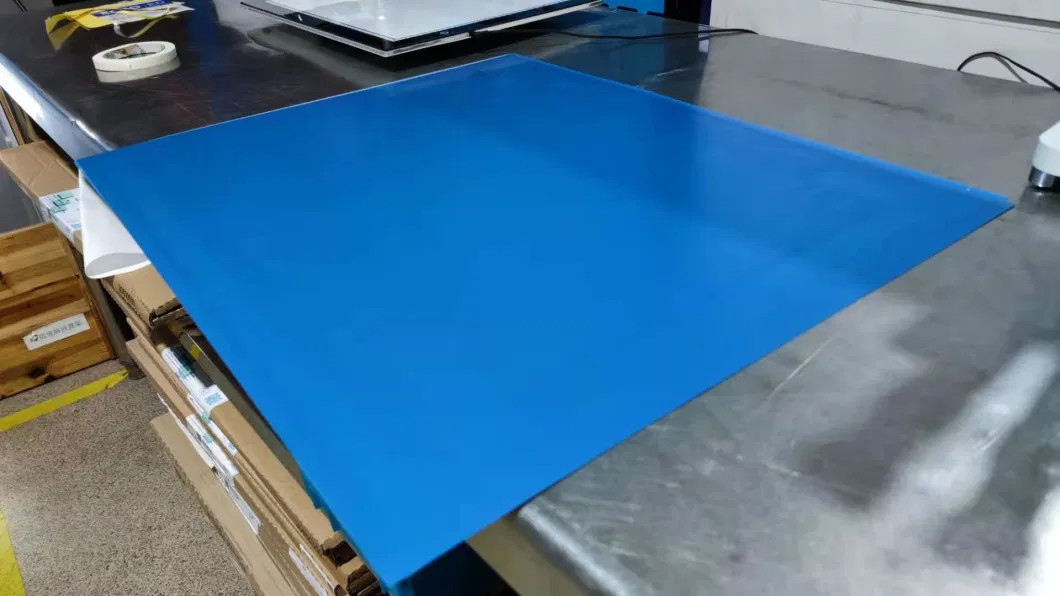

Double Layers Positive Writing Thermal Aluminum CTP Plate



Specifications

Model ECOO-TSR
Plate Type Positive Thermal Digital Plate
Application Commercial, newspaper, and package printing
Substrate Electrochemically-grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.24, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Blue
Length of Run Unbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 120 - 150 mj/cm²
Developing time 25 - 30 sec
Spectral sensitivity 780 - 850 nm
Resolution 1-99% @ 400LPI
Developer ECOO DV-T Series Developer
Processing temperature 23ºC +/- 2ºC
Processing speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity



Features

- Positive writing thermal plate

- Double layers system

- Made with high-grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV Ink up to 80,000 impressions

- Ability to print both AM and FM screening



EcooGraphix Thermal Solvent Resistance CTP Plate: Engineered for Endurance and Precision



The EcooGraphix Thermal Solvent Resistance CTP Plate is designed to meet the highest standards of modern printing, combining durability, consistency, and versatility in one advanced solution. Suitable for long-run, high-grade commercial printing as well as demanding newspaper production, this plate ensures exceptional imaging stability and precise dot reproduction even under the most challenging press conditions. Its superior thermal layer technology allows for sharp, clean output with rich tonal gradations, guaranteeing consistent quality from the first print to the last.



Built to perform in both conventional and UV ink environments, the EcooGraphix Thermal Solvent Resistance CTP Plate offers outstanding chemical resistance and remarkable press life, making it ideal for UV ink applications that require high ink transfer and strong adhesion without compromising image integrity. Its robust coating formulation resists abrasion and solvent attack, delivering extended run lengths and minimizing plate changes to maximize productivity.



Printers can rely on this plate for smooth operation, fast imaging, and stable exposure across all kinds of thermal CTP systems. With its reliable performance, easy processing, and broad adaptability to different printing conditions, the EcooGraphix Thermal Solvent Resistance CTP Plate ensures reduced downtime, lower production costs, and superior print results every time.

From commercial prints and newspapers to UV applications and specialty jobs, this plate stands out as a proven choice for professionals seeking both efficiency and excellence.



EcooGraphix Thermal Solvent Resistance CTP Plate — built to last, designed to impress, and ready to elevate your printing to the next level.
