ECOO-G thermal DOP plate (developed on press ), could be applied onto the press machine directly without processing/developer after imaging, chemistry free, environment-friendly, as same as Sonora XP.
Brief introduction
ECOO-G is well sold in Europe, USA, and Canada. It is like Kodak Sonora and Agfa Azura. It meets the trend of being environment-friendly and has a bright future. This plate can be applied on a printing machine directly without processing and developing. So it saves the cost of labor, water treatment, and developer tank. Hope you like it.
Technical data
| Model |
ECOO-G |
| Plate Type |
thermal-negative type |
| Application |
High-grade commercial, newspaper, and package printing |
| Substrate |
Electrolyte graining and Anodized AL substrate |
| Thickness |
0.15mm / 0.30mm |
| Maximum short grain width |
Maximum width 1280 mm |
| Spectrum sensitivity |
800-850 nm |
| Photosensitive wavelength |
830 nm |
| Platesetter |
Various dominant thermal platesetters in the market |
| Coating color |
Light Grey |
| Low-energy imaging |
130-150 mj/ m² |
|
The period of latent
image stabilization
|
≤7 days |
| Recommended screen method |
1-99% @200 LPI AM or 20μm FM or mixture |
| The paper number of start-up |
<20 sheets (fountain solution conductivity: 2000-3000μS, PH at lower range between 4-5) |
| Safety light |
Ambient light(<800 LUX) up to 4 hours |
| Processing |
Without processing, directly on the press |
| Run Length |
100,000 impressions
Actual run length depends on printing conditions
|
| Shelf life |
12 months with original sealed packaged |
| Transportation |
Packed in seal and stored by means of prevention
from light, moisture, overheating, and high humidity
|
| Storage |
Recommended condition: 18℃-24℃, 40%-50% RH. |
Features
High-quality aluminum substrate and unique-grain processing technology. The substrate grain is uniformly fine, which ensures the exact dot reproduction and excellent printing adaptability of the printing plate.
The professional formula design with an infrared laser-sensitive phase-change layer ensures that the plate can be put on press directly after exposure.
High sensitivity, wide tolerance, screen dots with margin sharpness
Excellent printability, fast-inking balance, suitable for high-grade commercial and packaging printing.
Compatible with various dominant thermal platesetters in the market, suitable for manual and automatic loading systems.
Bright room operation in which people can operate safely under fluorescent lamps.
Stable quality.
A variety of plates provided with thicknesses from 0.15mm to 0.40mm.
Applications
Suitable for sheet-fed offset press or high-speed rotary offset press.
Run length: 100000 impressions
Suitable for different types of traditional inks and fountain solutions, including alcohol substitutes as fountain solutions.

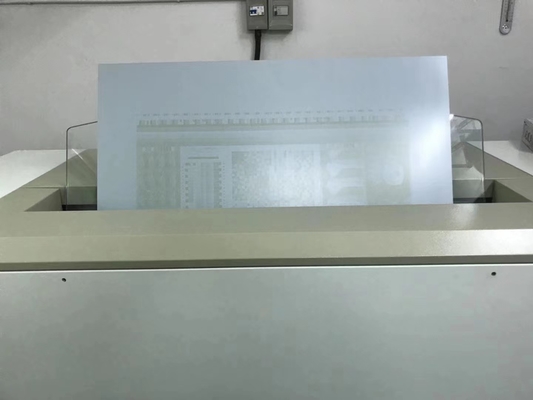

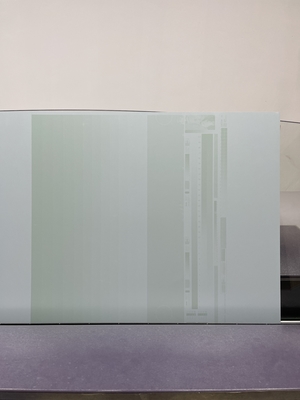

Image contrast before and after
Plater structure
Q1: Can I get a sample?
A: Yes, we are happy to provide samples for testing. We usually offer 5-15 pieces of plates for free, but we kindly ask for your support with the air courier freight, which can be credited back to you on your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The air freight cost depends on the packing size, weight, and delivery destination. Alternatively, you can arrange the pick-up service with your local agent.
Q3: How long does it take to prepare the sample?
A: It typically takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
A: Yes, you are warmly welcome to visit our factory! We are located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters of CTP plates can fit in a 20' container?
A: Approximately 20,000-25,000 square meters.
Q6: Can I have my brand and label on the packaging?
A: Yes, we offer OEM services with your brand and label.
