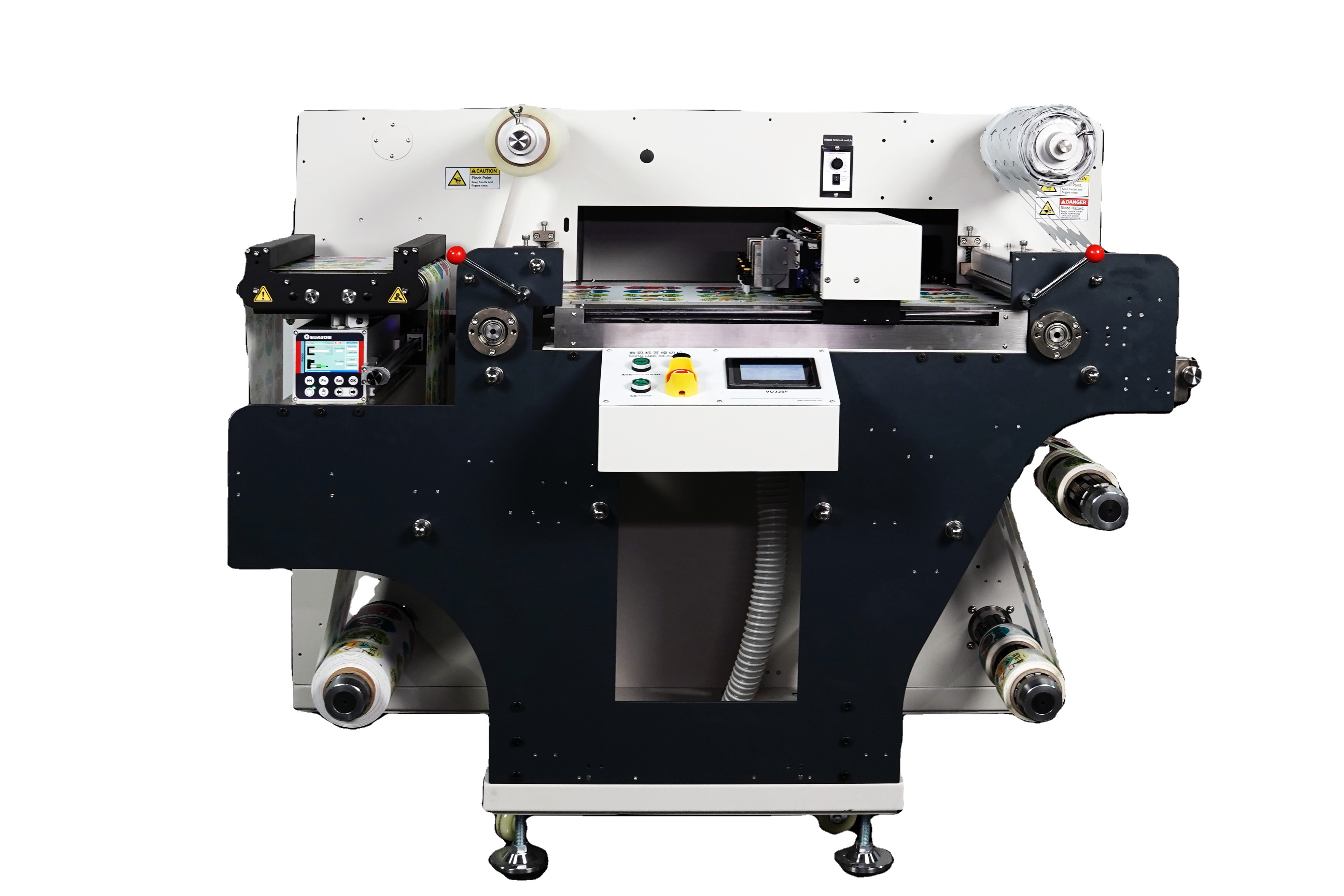

320MM Width Roll To Roll Digital Label Die-Cutting Machine
Model: VD320
The unique roll to roll digital label die-cutter which can have 4 cutting heads
Product Description
VD320 is developed for work for all kinds of applications. It can use for short work or big work, can die-cut all of shapes which you design, delivery time is very fast, it is your best partner for label printer. This machine collect to laminate, die-cut, waste-remove, slit and rewind together, it is not only for die-cutting, but also work for one slitting machine. The operation is very easy, it apply into label, hang tag, and package widely., we believe that this machine will be apply more and more lines , only expect you find the advantage.
Suitable media: Adhesive label, PP, plastic film, PET, PVC, white card paper, art paper and other soft media.
Example of application: adhesive label, hang tag, paper box making.
Web guide:

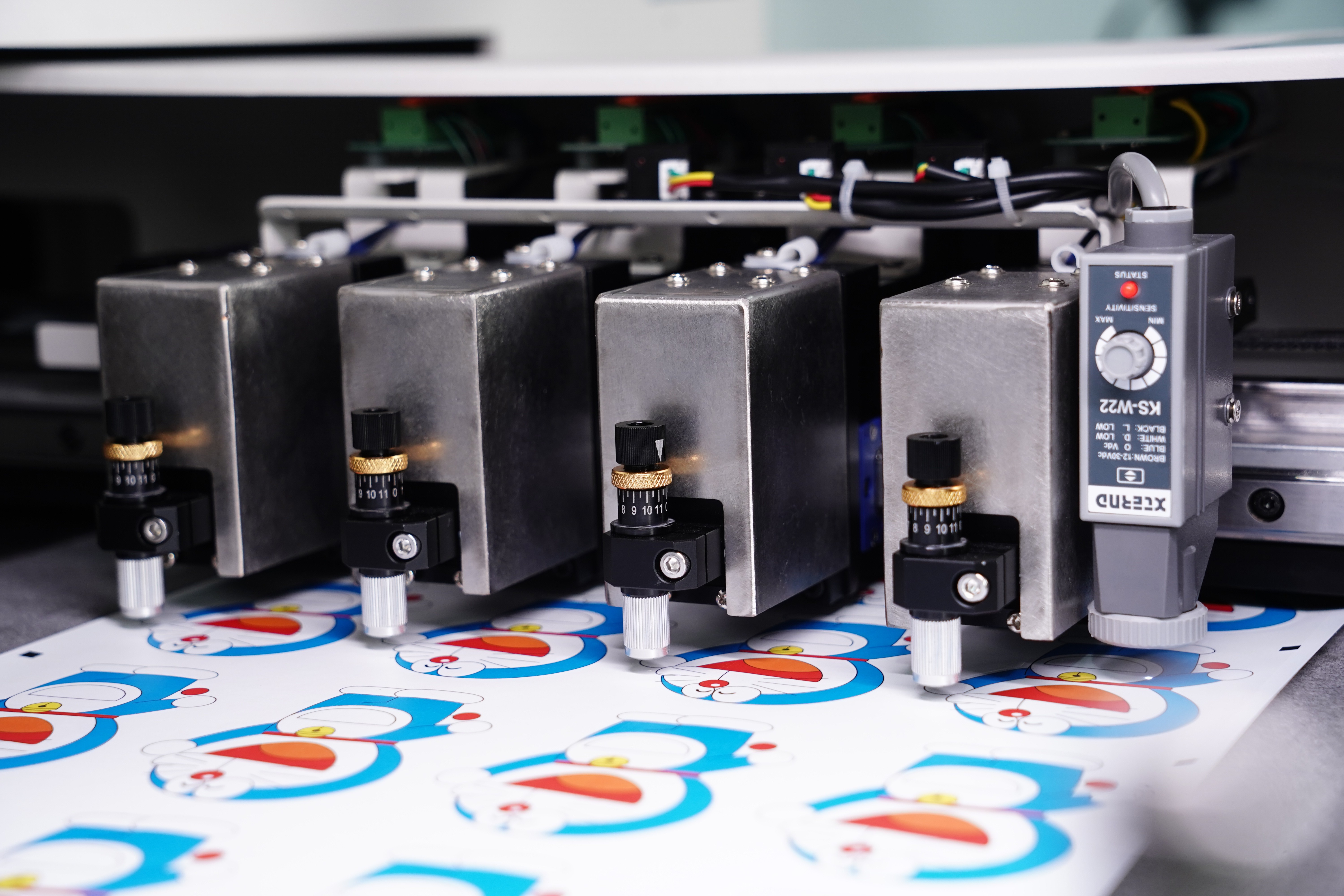

Die cutting:

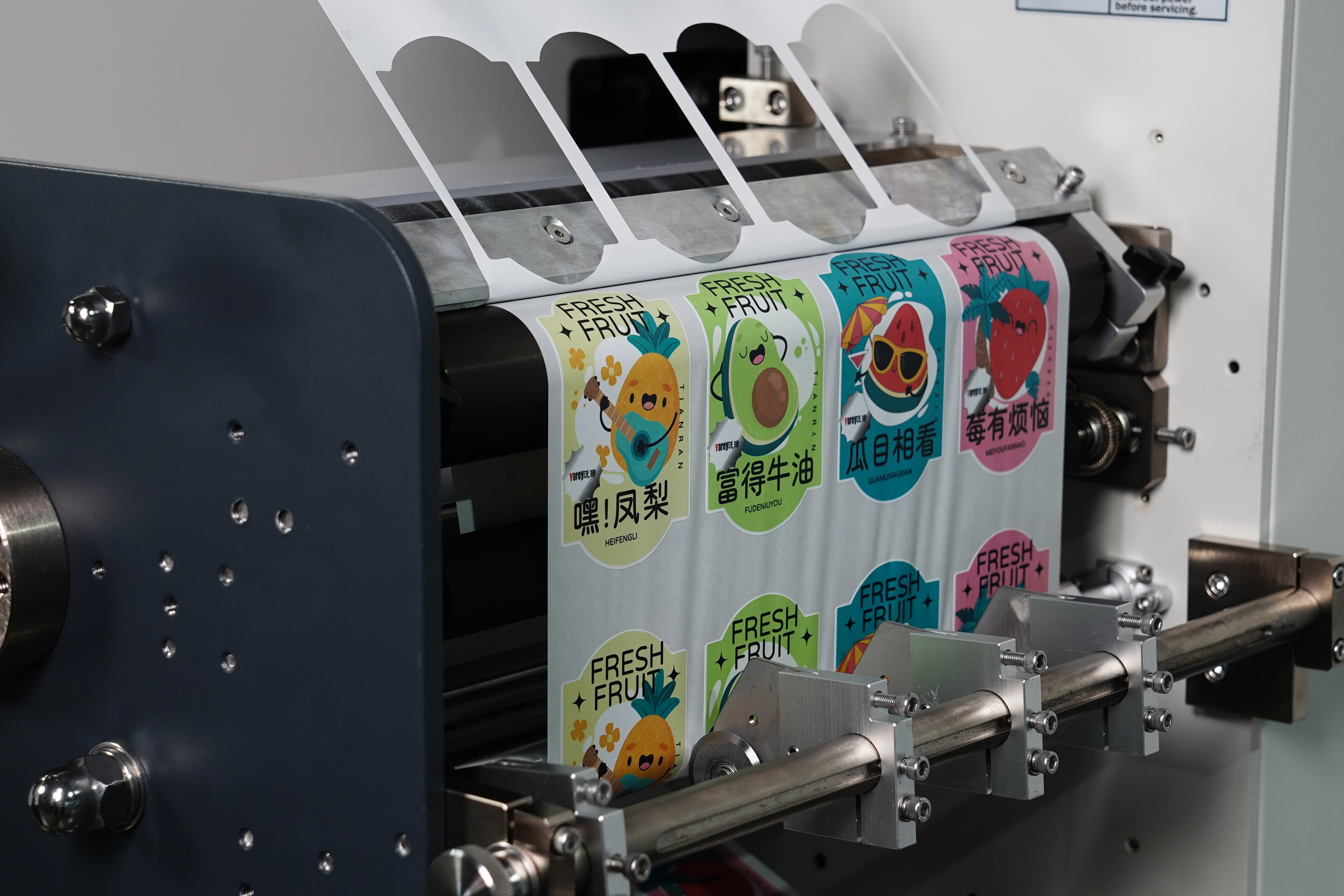

Slitter:
Specification
| Machine model |
VD320 |
| Max. media roller |
Diameter 450mm |
| Cutting media width |
40-340MM |
| Max. cutting width |
320MM |
| Min. label length |
10MM |
| Max. label length |
400MM |
| Cutting speed |
7m per minute (Depend on label shape and size) |
| Cutting blades |
2 pcs (Standard ) Max. 4pcs |
| Slitting blades |
4pcs (standard ) Max. 15pcs |
| Die-cutting technology |
Tungsten steel rotary blades |
| Cutting Precision |
0.05MM(Duplicate ) |
| Cutting tracking Manually |
single mark or double mark |
| Slitting speed |
Max. 60m per minute |
| Slitting precision |
0.2MM |
| Slitting width |
10-320MM |
| Machine size |
158cm(w)x90cm(D)x136cm(H) |
| Weight |
Approx. 450KG |
| Power |
100-240VAC, 1000 watts |
| Warranty |
1 year (beside high consumables parts) |
Functions:
1. High speed, economical digital label finisher!
2. The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, we research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system.
3. The high reliable and professional new model digital label die-cutter are designe for professional label printing company.
4. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.
Main Feature:
1. Time Saving, compared with traditional die cutter.
2. No need mould typesetting
3. Suit for small and medium batch cut
a, width: 10-310 mm
b, price: 15,000-18,000 USD
c, speed: max 6 m/min
d, strength: high precision, time saving.
e, weakness: low speed
you can check the traditional cutter:
