320mm Width Digital Roll To Roll Label Die-Cutter Machine

1SET
MOQ
Negotiable
Price
320mm Width Digital Roll To Roll Label Die-Cutter Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Roll To Roll Label Die-Cutter Machine
Max. Media Roller: Diameter 450mm
Cutting Media Width: 40-340mm
Max. Cutting Width: 320mm
Min. Label Length: 10mm
Max. Label Length: 400mm
Cutting Speed: 7m Per Minute (Depend On Label Shape And Size)
Cutting Blades: 2 PCS (Standard ) Max. 4PCS
Slitting Blades: 4PCS (Standard ) Max. 15PCS
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Ecoo-VD320
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 Sets/Year
Product Description



320MM Width Digital Roll to Roll Label Die-Cutter Machine

Model: VD-320

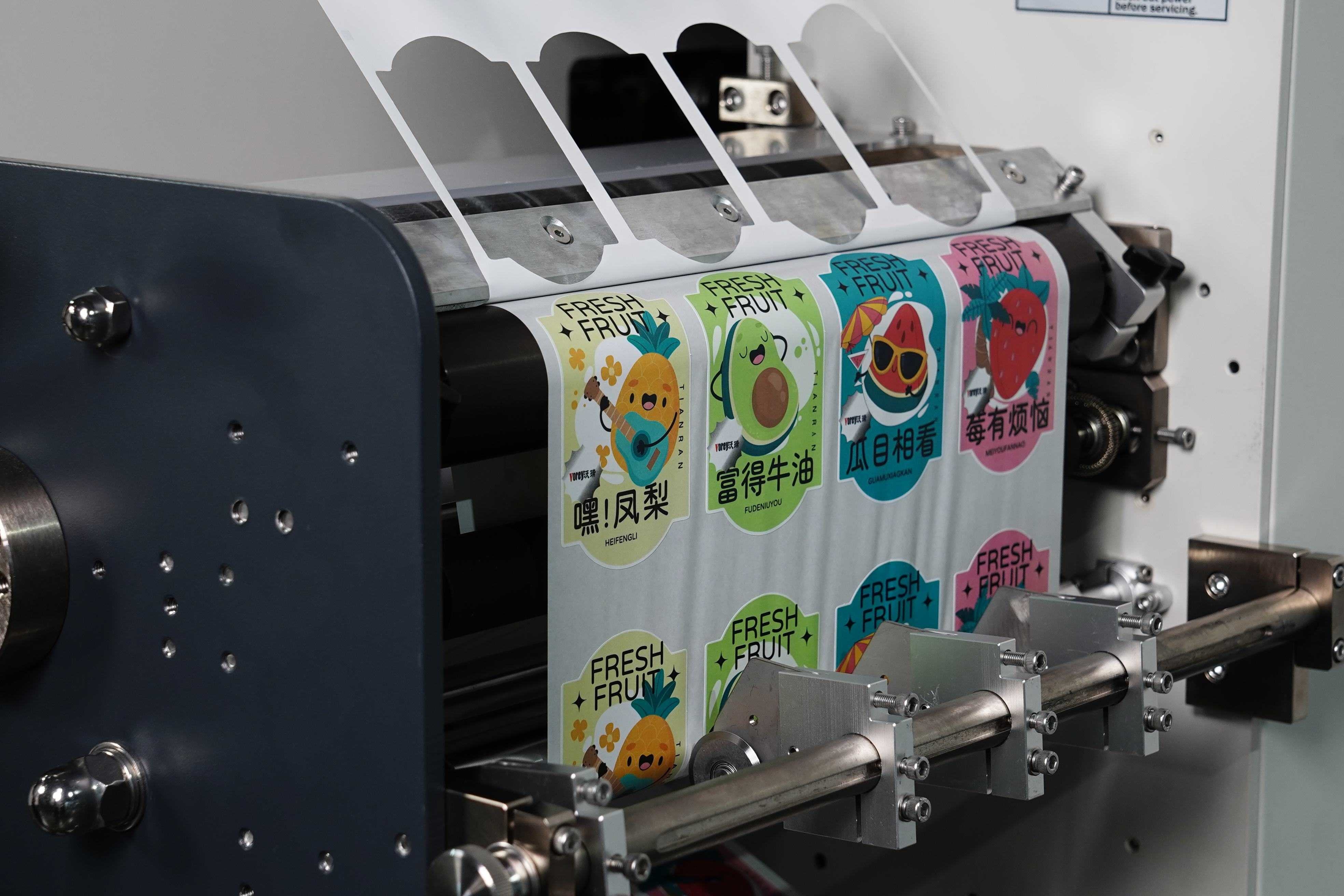

320mm Width Digital Roll To Roll Label Die-Cutter Machine 0







Production Description:




VD-320 Roll To Roll Rotary Label Die Cutter For Sale is developed for work for all kinds of applications. It can use for short work or big work, can die-cut all of shapes which you design, delivery time is very fast, it is your best partner for label printer.

This machine collect to laminate, die-cut, waste-remove, slit and rewind together, it is not only for die-cutting, but also work for one slitting machine. The operation is very easy, it apply into label, hang tag and package widely. We believe that this machine will be apply more and more lines, only expect you find the advantage.

Suitable media: adhesive label, PP, plastic film, PET, PVC, white card paper, art paper and other soft media.

Example of application: adhesive label, hang tag, paper box making.

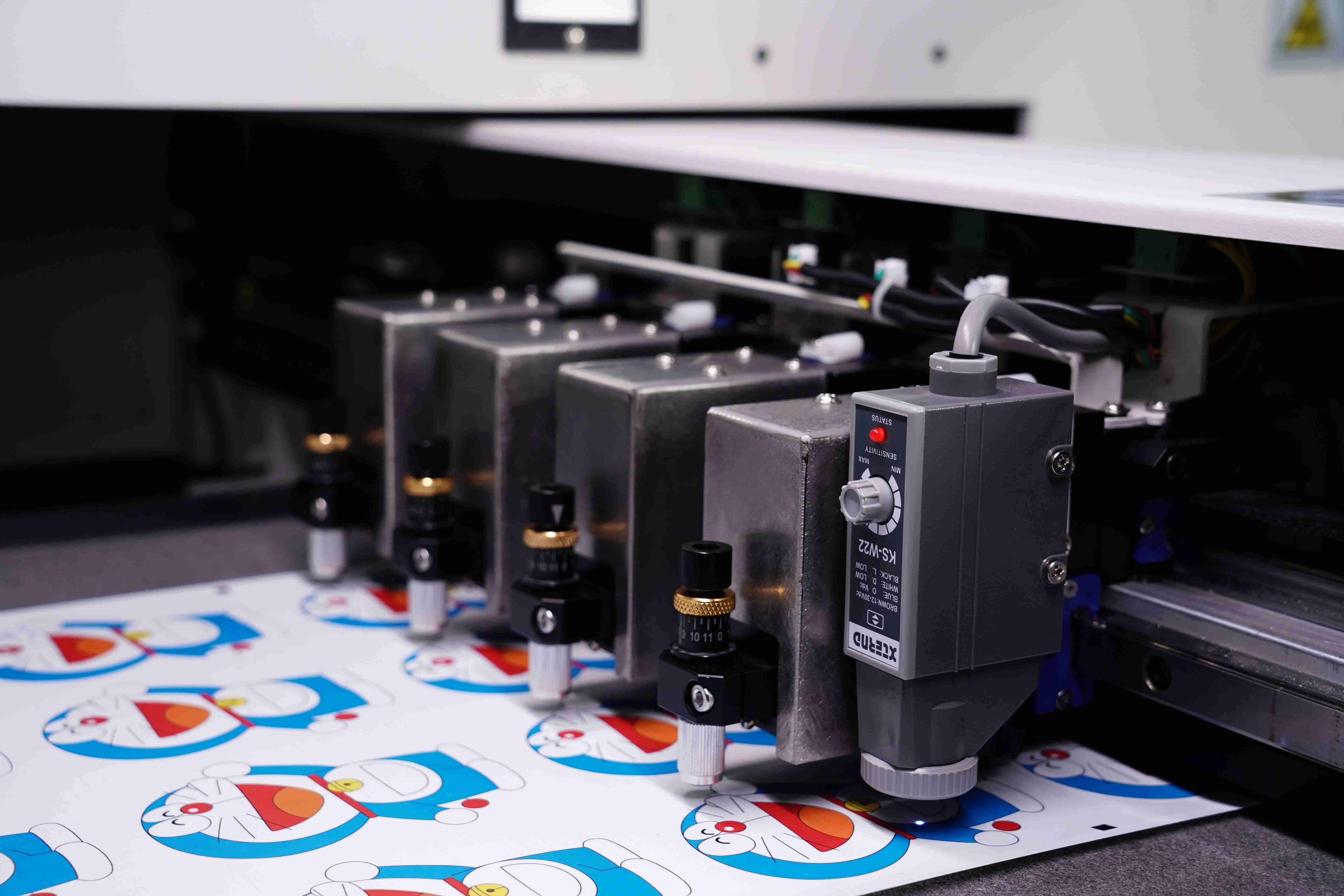

320mm Width Digital Roll To Roll Label Die-Cutter Machine 1



Features:

1. High Speed, Economical Digital Label Finisher!

2. The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, we research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system.

3. The high reliable and professional new model digital label die-cutter are designe for professional label printing company.

4. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.







Specification:




Model Ecoo-VD320
Max. media roller diameter 450mm
Cutting media width 40-340mm
Max.label width 310mm
Min.label length 10mm
Max.label length 400mm (segmentation get to 1200mm)
Cutting speed max.6m per minute (depend on label shape and size)
Cutting blades (Standard) max.4 pcs
Slitting blades (standard)max.15pcs
Cutting tracking with tungsten steel rotary blades
Die-cutting technology 0.1mm (duplicate)
Cutting precision singe mark or double mark
Slitting speed Max. 100m per minute
Slitting width 10-310mm
Slitting precision 0.1mm
Machine size (W*D*H) 160*100*136CM
Machine weight 520kg
Power 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty 1year (besides high consumable parts)
Options Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter

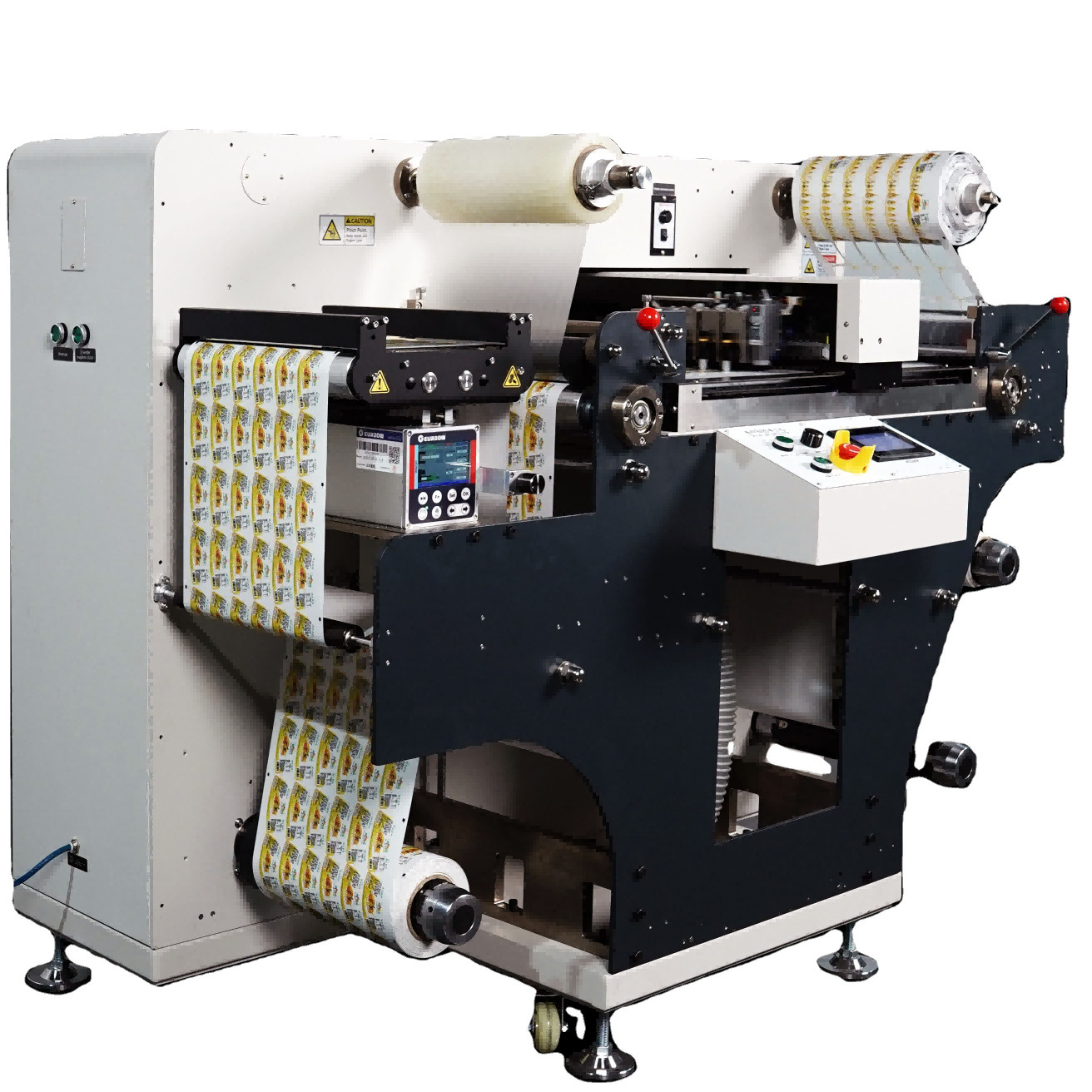

320mm Width Digital Roll To Roll Label Die-Cutter Machine 2







More Detail:




1.Time Saving, compared with traditional die cutter:

320mm Width Digital Roll To Roll Label Die-Cutter Machine 3





2. No need mould typesetting:

320mm Width Digital Roll To Roll Label Die-Cutter Machine 4





3. Suit for small and medium batch cut:
a, width: 10-310 mm
b, speed: max 6 m/min
c, strength: high precision, time saving.



320mm Width Digital Roll To Roll Label Die-Cutter Machine 5
