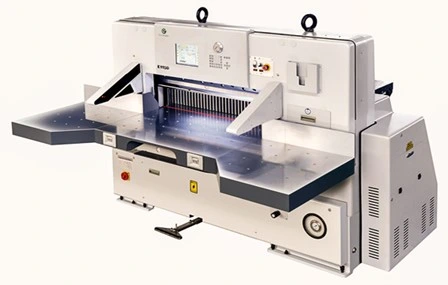

ECOO-1150DH Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal,etc.
it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction and do self-protection while wrong operation.ECOO
1.Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
2.Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw., which can prolong the machine use life, and can bear the high speed paper delivering.
3. Photo cell: it is equipped with a photo cell safety protection device.
4.Over load protection device; convenient knife changing device.
5.Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
6.Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
7.Cutting controller:both of the user's hands operate the machine. It can cut paper in one time.
8. Electronic knife lock:when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
Main Technical Parameters
|Max cutting width
|Max cutting length
|Max cutting height
|Width of machine
|Total width of machine
|Total length of machine
|Total height of machine
|The length of side table
|The width of groundsill of machine foot
||without false clamp
|with false clamp
1 Touch screen input.
2 Automatic operation
3 Semi-automatic operation
4 Manual operation
6 Automatic precise position
7 Manual position
8 Paper sender moves forwards and back wards.
9 Paper sender automatically accelerant or decelerate
10 Compulsory new direction
11 Mandatory stop sending paper
12 Mandatory stop cutting
13 Air pump works
14 Manual air blow control
15 Automatic seek origin
16 Automatically clear the origin error
17 Personalized programming mode
20 Insert cutting manual
21 Program browse
22 Chinese and English
23 Units change
25 Skip cutting
26 Micro adjustment
27 Self-diagnose malfunction
28 Animate machine working process
29 Operator can set password for starting the machine
30 Count cutting datum
31 Amend paper shift
32 Sequence label
33 It can save 5000 program files
34 The storage time can reach 300,000 hours
35 Adjust the paper-sending speed
36 Safety warning
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing,
1. What are your main products?
including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
