Name: Processless Thermal Plates Eco-Friendly Solution For Offset Printing
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Processless CTP Printing Plate

Application: High Grade Commercial And Newspaper Printing

Material: Electrolyte Graining And Anodized AL Substrate

Thickness: 0.15mm / 0.30mm

Spectrum Scope: 800-850nm

Advantage: Without Processing, Directly On Press

Run Length: 100,000 Impressions

Highlight:

Offset Printing Thermal Plates

Eco-Friendly Thermal Plates

Processless Thermal Plates

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO, CE

Model Number: ECOO-G

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 2000,000 sqm per year

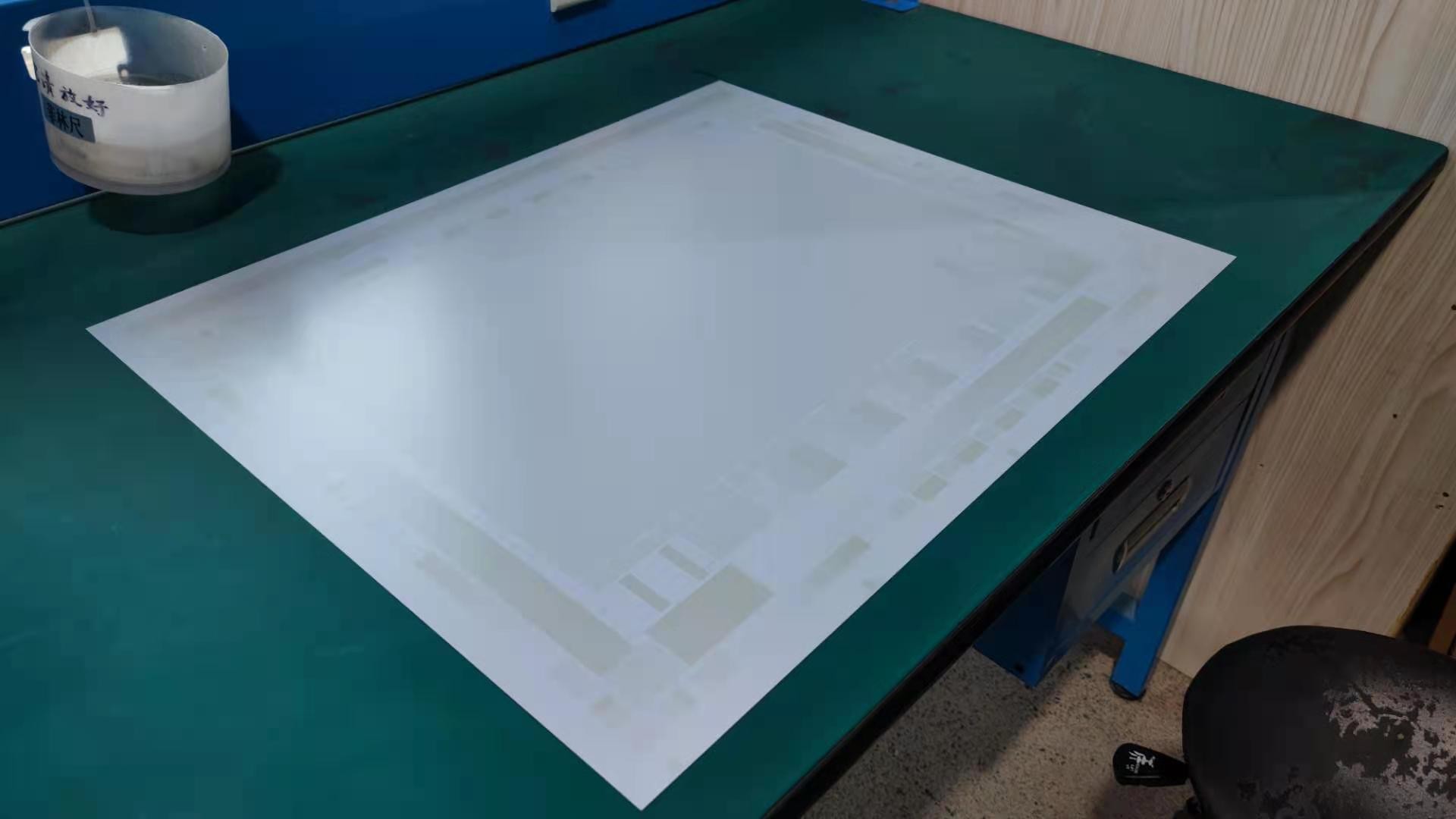

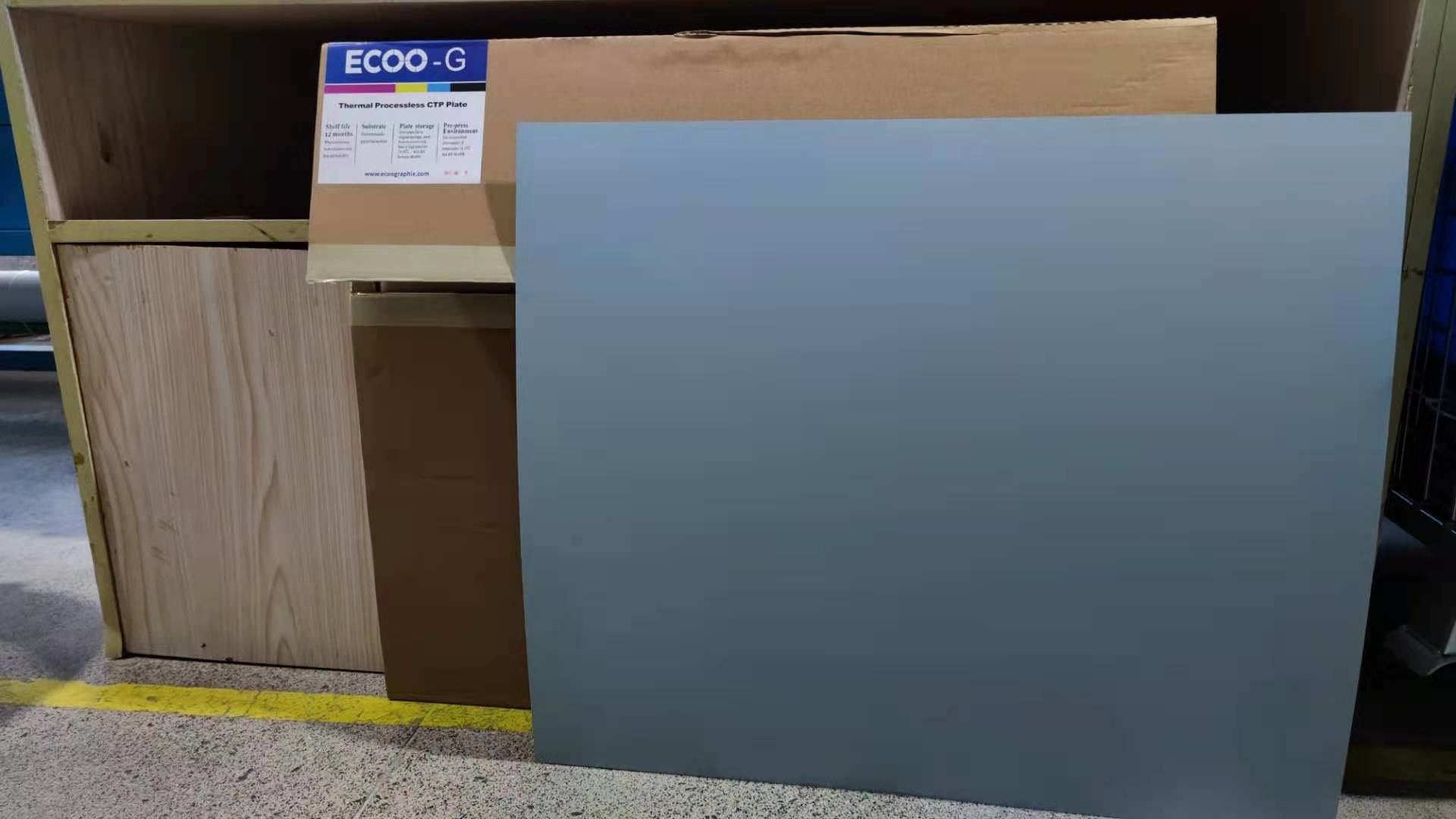

Gallery

Processless Thermal Plates Eco-Friendly Solution For Offset Printing

Product Description

Model: ECOO-G Processless (process-free)

Introducing the ECOO-G Thermal Plate, an environmentally friendly processless printing solution:

- Directly runs on press machines after CTP exposing, eliminating the need for chemical processing.

- Saves costs associated with labor, water treatment, and developer tank maintenance.

- Chemically free and environmentally friendly, akin to Sonora XP and Agfa Azura plates!

Product Description

Processless Thermal Plates Eco-Friendly Solution For Offset Printing 1

Characteristics

- Utilizes a negative non-ablation photosensitive system.

- Compatible with leading devices in the market.

- Supports direct printing on the machine without additional processing steps after scanning by thermal CTP platesetter.

- Offers excellent dot reproduction, stable performance, and wide processing latitude.

- Provides long stability of the latent image, allowing for storage of at least a week after plate-making.

- Features high-quality aluminum substrate and professional coating formulation.

Recommended Application Procedure for ECOO-G:

1. Clean all ink residues from the blanket thoroughly.

2. Start the press machine and engage the water roller, allowing it to run for 30-40 seconds.

3. Engage the ink rollers for 20-30 seconds.

4. Load the paper and commence printing.

Specification

Model	ECOO-G
Plate Type	Non-ablation thermal-negative type
Application	High-grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm / 0.30mm
Spectrum scope	800-850nm
Platesetter	Various dominant thermal platesetters in the market
Low-energy imaging	130-150 MJ/ m²
The period of latent image stabilization	≤7 days
Recommended screen method	1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up	<50 sheets
Safety light	4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing	Without processing, directly on the press
Run Length	100,000 impressions, actual run length depends on printing conditions
Baking	No recommended
Maximum short grain width	Maximum width 1280 mm
Photosensitive wavelength	830 nm
Coating color	Grey
Shelf life	12 months under recommended condition
Transportation	Packed in seal and stored using prevention from light, moisture, overheating, and high humidity
Storage	Recommended condition: 18ºC-24ºC, 40%-50% RH.
