Name: Ecoo Chemistry Free Negative Offset Printing CTP Plate 1280mm Width
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: Thermal-negative CTP Plate

Run Length: 100,000 Impressions; Actual Run Length Depends On Printing Conditions

Recommended Screen Method: 1-99% @200 Lpi Am Or 20um FM Or Mixture

Low-Energy Imaging: 130-150 Mj/Square Centimeter

Coating Color: Grey

Processing: Without Processing, Directly On Press

Platesetter: Various Dominant Thermal Platesetters In Market

Maximum Short Grain Width: Maximum Width 1280 Mm

Highlight:

Offset Printing CTP Plate

1280mm Width CTP Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-G

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 15,000,000 Sqm Per Year

Gallery

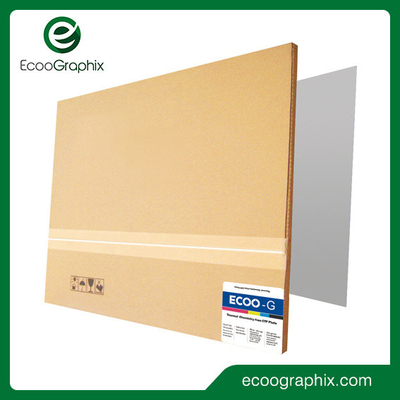

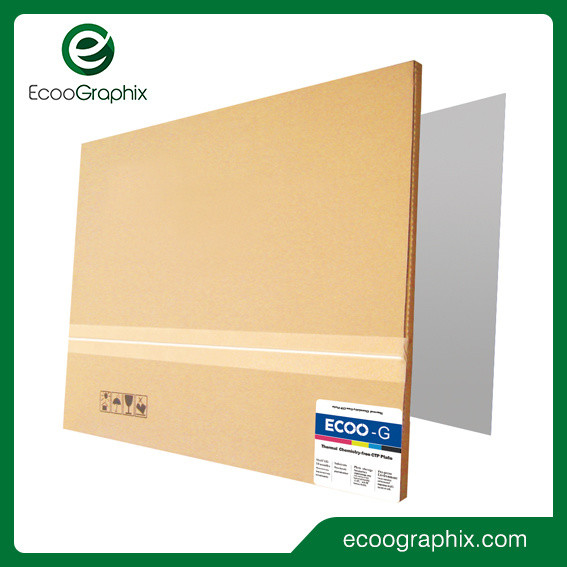

Ecoo Chemistry Free Negative Offset Printing CTP Plate 1280mm Width

Product Description

Chemistry Free/Negative Offset Printing CTP Plate Processless

1. Characteristic

ECOO-G is a double layer, and the emulsion layer will not dissolve into water, so it will not integrate into the fountain solution; while the protection layer is well water-soluble, and it will be easily dissolved into the fountain solution.

2. Specification

Model	ECOO-G
Plate Type	Thermal-negative type
Application	High-grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm/ 0.30mm
Maximum short grain width	Maximum width 1280 mm
Spectrum scope	800-850 nm
Photosensitive wavelength	830 nm
Platesetter	Various dominant thermal platesetters in the market
Coating color	Grey
Low-energy imaging	130-150 MJ/cm²
The period of latent image stabilization	≤ 7 days
Recommended screen method	1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up	< 50 sheets
Safety light	4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing	Without processing, directly on the press
Run Length	100,000 impressions, Actual run length depends on printing conditions
Shelf life	12 months under recommended condition
Transportation	Packed in seal and stored using prevention from light, moisture, overheating, and high humidity
Storage	Recommended condition: 18ºC-24ºC, 40%-50% RH.

Applied parameters in the Imaging device

CTP model Data	Kodak trendsetters	LOTTEM 400(TH1.7)	MAGNUS 400	Screen 8600S
Laser power	15-17W	300-320mw	19.5-21.5W	80-90 %
Drum speed	250-300rpm	850-900rpm	400-450rpm	800-900rpm
Resolution	Customized	Customized	Customized	Customized
Parameter that needs set up	Focus/ Zoom	Focus/ Zoom	Focus/ Zoom	Focus/ Zoom

*Note: Higher exposure energy will make the image contrast more clear, and benefit the plate run length; while over high/low exposure energy will affect the image quality negatively.

ECOO-G Processless CTP plate Video: https://youtu.be/LLqNaY1ivcI

3. Application

EcooGraphix ECOO-G is a new, environmentally friendly, Development On Press CTP plate. It can be run directly on a printing press after imaging, without a need for chemical processing.

4. Customer's Feedback
