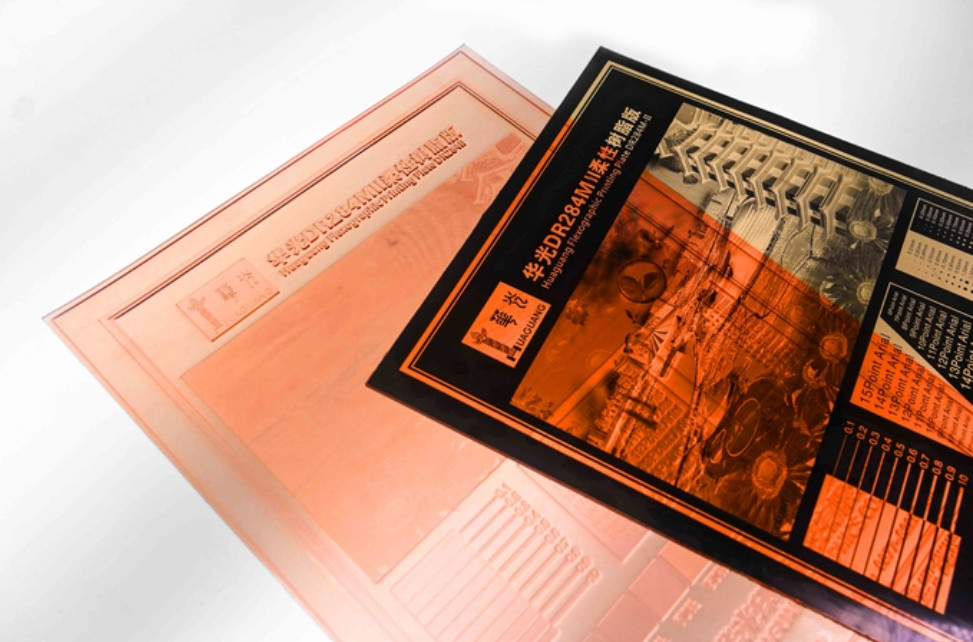

Digital Flexible Photopolymer Plate Package Printing Flexographic Plate

50 sqm
MOQ
Negotiable
Price
Digital Flexible Photopolymer Plate Package Printing Flexographic Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Digital Flexo Plate
Thickness: 0.15mm To 7.00 Mm
Application: Label Printing And Package Printing
Workable Ink: Water And Alcohol-based Ink
Minimum Isolated Line: 0.2 Mm
Minimum Isolated Dot: 0.4 Mm
Highlight:

Package Printing Flexographic Plate

,

Flexographic Photopolymer Plate

,

Digital Flexible Photopolymer Plate
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, ISO20001, CE
Model Number: DR Series
Payment & Shipping Terms
Packaging Details: carton with protecitive frame
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100000 sqm PER YEAR
Product Description

Digital Flexographix plate

What is flexo plate?
Flexographic printing plates are flexible photopolymer plates, used in flexo printing to transfer ink & images to a flexible substrate, such as paper or film. The printing plates are a critical element of the flexographic printing process and the quality of the printed image is largely dependant on the quality of the flexo plates used.

Technical data



Type DR284H DR284L DR254-II DR228LS DR170LS DR170H DRl14LS DRl14H
Thickness(mm) 2.84 2.84 2.54 2.28 1.7 1.7 1.14 1.14
Rigidity 58-60 39 54-56 56-58 60-62 70-72 69-72 76-78
(Shore A)
Recommend relief(mm) 1.0-1.4 1 1.0-1.2 1.0-1.2 0.7-0.9 0.7-0.9 0.6-0.7 0.6-0.7
Image reproduction 2-98% 2-98% 2-98% 2-98% 1～98% 1～98% 1～98% 1～98%
Maximum line line/inch 133 133 133 133 150 150 150 150
Minimum isolated line 0.175mm 0.15mm 0.15mm 0.15mm 0.10mm 0.10mm 0.10mm 0.10mm
(0.007inch) (0.006inch) (0.006inch) (0.006inch) (0.004inch) (0.004inch) (0.004inch) (0.004inch)
Minimum isolated dot 0.25mm 0.25mm 0.20mm 0.20mm 0.15mm 0.15mm 0.15mm 0.15mm
(0.01inch) (0.01inch) (0.0079inch) (0.0079inch) (0.006inch) (0.006inch) (0.006inch) (0.006inch)
Suitable ink suitable for water and alcohol-based ink, incompatible with oil-based ink and hydrocarbon solvent ink Suitable for UV-ink, water, alcohol-based ink Suitable for water, alcohol-based ink and UV-ink



Type DR700-II DR635 DR550 DR470 DR394-II DR394-Ⅲ DR318L DR284-II DR284M-II
Thickness(mm) 7 6.35 5.5 4.7 3.94 3.94 3.18 2.84 2.84
Rigidity 38-40 34 34 36 43-45 37-39 37-39 45-48 53-56
(Shore A)
Recommend relief(mm) 3.2-3.8 2.2-3.0 2.0-3.0 1.2-2.2 1.8-2.0 1.8-2.0 0.9-1.5 1.0-1.4 1.0-1.4
Image reproduction 3-95% 3-95% 3-98% 3-98% 2～98% 2～98% 2-98% 2～98% 2-98%
Maximum line line/inch 100 100 100 100 100 100 120 133 133
Minimum isolated line 0.20mm 0.20mm 0.20mm 0.20mm 0.20mm 0.20mm 0.175mm 0.175mm 0.175mm
(0.008inch) (0.008inch) (0.008inch) (0.008inch) (0.008inch) (0.008inch) (0.007inch) (0.007inch) (0.007inch)
Minimum isolated dot 0.40mm 0.40mm 0.40mm 0.30mm 0.30mm 0.30mm 0.25mm 0.20mm 0.20mm
(0.016inch) (0.016inch) (0.016inch) (0.012inch) (0.012inch) (0.012inch) (0.01inch) (0.008inch) (0.008inch)
Suitable ink Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25%





Digital Flexible Photopolymer Plate Package Printing Flexographic Plate 0



Plate structure

Digital Flexible Photopolymer Plate Package Printing Flexographic Plate 1

Factory

Digital Flexible Photopolymer Plate Package Printing Flexographic Plate 2

Standard plate size

Thickness(mm)
Size 762*1016 (30*40)
mm(inch) 1067*1524 (42*60)
1067*2032 (42*80)
1200*2032 (47.2*80)
1270*2032 (50*80)
maximum size 1320x3050mm
