| Parameters | |
| Max. Rewinding Diameter | 300mm |
| Min. Slitting Width | 30mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Unwinding Width | 1400mm |
| Max. Speed | 300m/min |
| Unwinding Shaft | 3″ (76mm) air-expanding shaft |
| Rewinding Shaft | 0.5″, 1″ (size customizable) |
| Total Power | 5Kw |
| Voltage | 380V/50Hz |
Features

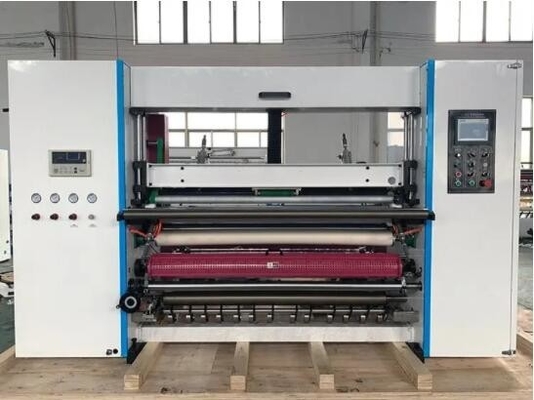

| ECOO 1400C thermal paper MG paper slitting rewinding machine can make fax rolls, cash register rolls, ATM rolls, ECG rolls, POS rolls, till rolls, MG kraft paper rolls, etc. | |
| Unwinding Section | Shaftless unwind stand, hydraulic jumbo roll loading. |
| Fully automatic tension controller. | |
| 20kg/m2 electromagnetic brake from Taiwan. | |
| Photoelectric sensor or photocell for web guiding. | |
| Direction adjustable balancing roller ensures roller itself always keeps in tight touch with the web. | |
| Slitting Section | The upper circular knives are fixed by screws, and the lower circular knives are fixed by the aluminum spacer, which ensures cutting precision. |
| Rotary encoder automatically metering slit length. | |
| Rewinding Section | Automatic tucker tucks the tail, convenient for quick trigger rewinding. |
| 90° vertical lay-on roller, capable of moving up and down, ensures more balanced left and right pressure, wider rewinding diameter could be realized. | |
| The overlapping problem could be avoided with a banana roller. | |
| Controlling Section | Siemens PLC, touch screen, and graphic user interface (HMI). |
| Yaskawa AC drive for Siemens master motor. | |
| Schneider low voltage electrical appliances. | |
| Waste Removal | Edge waste blower through expulsion tube. |
| Optional Parts | Safety guard. |
| 4 corners emergency switches. | |
| Transmission belt. | |
| Blower and shredder. | |
| Safety fence. | |
