1400mm Thermal Paper Slitting Rewinding Machine for Fax Cash Register ATM ECG POS Till Kraft Paper Rolls

1 set
MOQ
Negotiable
Price
1400mm Thermal Paper Slitting Rewinding Machine for Fax Cash Register ATM ECG POS Till Kraft Paper Rolls
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Format: 1400 Mm
Max. Speed: 300 M/min
Max Rewinding Dia.: 300 Mm
Max. Unwinding Dia.: 1200 Mm
Warranty: 1 Year
Application: Fax Roll, Cash Register Roll, ATM Roll, ECG Roll, POS Roll, Till Roll, MG Kraft Paper Roll
Highlight:

1400mm Slitting Rewinding Machine

,

Kraft Paper Rolls Slitting Rewinding Machine
Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: ECOO 1400C
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 35 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300 SET PER YEAR
Product Description
Parameters
Max. Rewinding Diameter 300mm
Min. Slitting Width 30mm
Max. Unwinding Diameter 1200mm
Max. Unwinding Width 1400mm
Max. Speed 300m/min
Unwinding Shaft 3″ (76mm) air-expanding shaft
Rewinding Shaft 0.5″, 1″ (size customizable)
Total Power 5Kw
Voltage 380V/50Hz

Features

  • China’s 1st 1400mm width thermal roll slitting machine
  • Small roll output +55% compared to 900mm width machine
  • Shaftless hydraulic jumbo roll loading
  • Photoelectric sensor or photocell for web guiding
  • 90-degree vertical lay-on roller
  • The banana roller prevents the overlapping problem

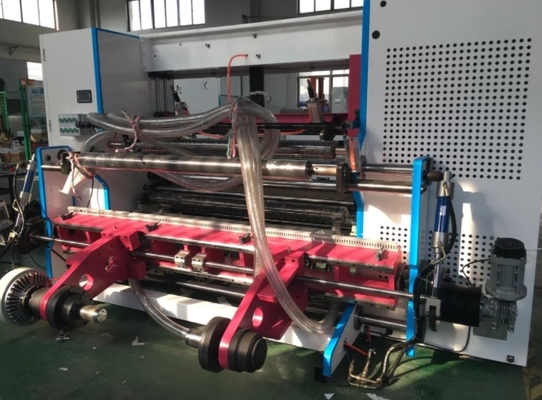

1400mm Thermal Paper Slitting Rewinding Machine for Fax Cash Register ATM ECG POS Till Kraft Paper Rolls 0
ECOO 1400C thermal paper MG paper slitting rewinding machine can make fax rolls, cash register rolls, ATM rolls, ECG rolls, POS rolls, till rolls, MG kraft paper rolls, etc.
Unwinding Section Shaftless unwind stand, hydraulic jumbo roll loading.
Fully automatic tension controller.
20kg/m2 electromagnetic brake from Taiwan.
Photoelectric sensor or photocell for web guiding.
Direction adjustable balancing roller ensures roller itself always keeps in tight touch with the web.

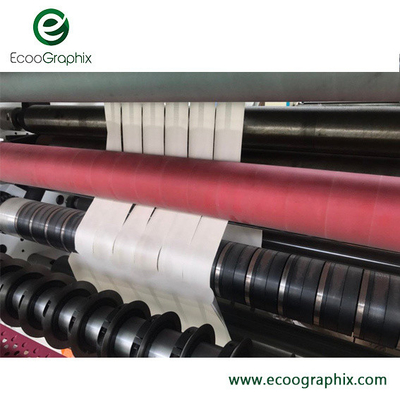

Slitting Section The upper circular knives are fixed by screws, and the lower circular knives are fixed by the aluminum spacer, which ensures cutting precision.
Rotary encoder automatically metering slit length.
Rewinding Section Automatic tucker tucks the tail, convenient for quick trigger rewinding.
90° vertical lay-on roller, capable of moving up and down, ensures more balanced left and right pressure, wider rewinding diameter could be realized.
The overlapping problem could be avoided with a banana roller.

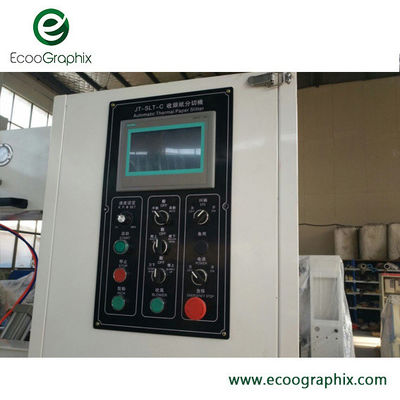

Controlling Section Siemens PLC, touch screen, and graphic user interface (HMI).
Yaskawa AC drive for Siemens master motor.
Schneider low voltage electrical appliances.
Waste Removal Edge waste blower through expulsion tube.
Optional Parts Safety guard.
4 corners emergency switches.
Transmission belt.
Blower and shredder.
Safety fence.

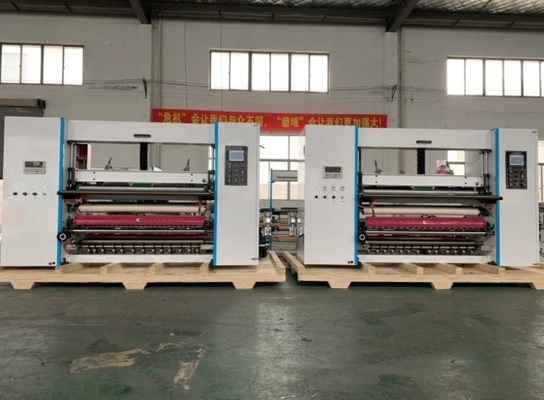

1400mm Thermal Paper Slitting Rewinding Machine for Fax Cash Register ATM ECG POS Till Kraft Paper Rolls 1
