Name: Single Knife Thermal Paper Slitting Rewinding Machine 350M/Min
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO GM-1400
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Classification: Thermal Paper Slitting Rewinding Machine

Max. Cutting Speed: 350 Cut/min

Max. Cutting Meter Speed: 350 M/min

Applicable Range Of Paper: 60-550g

Max. Paper Roll Diameter: 1800mm

Max. Paper-cutting Width: 1400mm

Range Of Cutting Length: 450-1600mm

The Format Of Slitting: 2 Sheet

Highlight:

Single Knife Paper Slitting Rewinding Machine

Paper Slitting Rewinding Machine 350M/Min

1600mm Slitting Rewinding Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO GM-1400

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

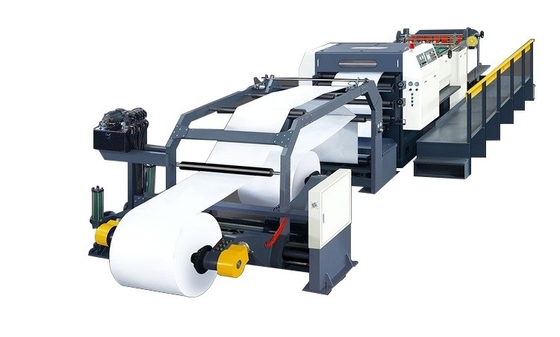

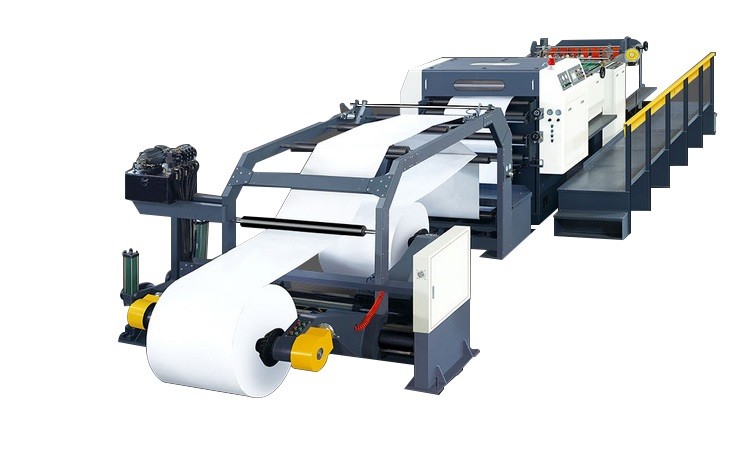

Single Knife Thermal Paper Slitting Rewinding Machine 350M/Min

Product Description

High Precision High Speed Single Knife Paper Cutter

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

★☆★ Features Introduction ★☆★

ECOO GM model Servo Precision High Speed Sheet Cutter apply the advanced technique of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

★☆★ Specification ★☆★

High-speed Inkjet Digital Press

Model
ECOO GM-1400

Cutting Type
The up knife cut reciprocally and the down knife is fixed

Applicable Range Of Paper
60-550g

Max. Paper Roll Diameter
1800mm

Max. Paper-cutting Width
1400mm

Range Of Cutting Length
450-1600mm

The Format Of Slitting
2 sheet

Cutting Precision
Cutting length ≤ 1000mm: ± 0.5mm, Cutting length > 1000mm: ± 0.1%

Max. Cutting Speed
350 cut/min

Max. Cutting Meter Speed
350 m/min

Max. Paper Stacking Height
1500mm

Air Pressure Source Requirement
0.8Mpa

Design Power
380V/220V 50HZ

Gross Weight
13000KGS

Cutting Precision:
Depending on the density, roll number and material of paper roll, ±0.5mm for 1000mm, ±0.1% for over 1000mm, and ±0.1% for acceleration or deceleration. The above data is based on the stable cutting operation and correct operation procedure.(When the cutting paper roll is one, the length of the cutting paper is the correct length)

Output:
Actual output depends on the paper material, paper weight, cutting length, number of paper roll, technology of the operator and operation conditions, etc.

High-speed Inkjet Digital Press
Model	ECOO GM-1400
Cutting Type	The up knife cut reciprocally and the down knife is fixed
Applicable	Range of paper 60-550g
Max. Paper Roll Diameter	1800mm
Max. Paper-cutting Width	1400mm
Range Of Cutting Length	450-1600mm
The Format Of Slitting	2 sheet
Cutting Precision	Cutting length ≤ 1000mm: ± 0.5mm, Cutting length > 1000mm: ± 0.1%
Max. Cutting Speed	350 cut/min
Max. Cutting Meter Speed	350 m/min
Max. Paper Stacking Height	1500mm
Air Pressure Source Requirement	0.8Mpa
Design Power	380V/220V 50HZ
Gross Weight	13000KGS

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

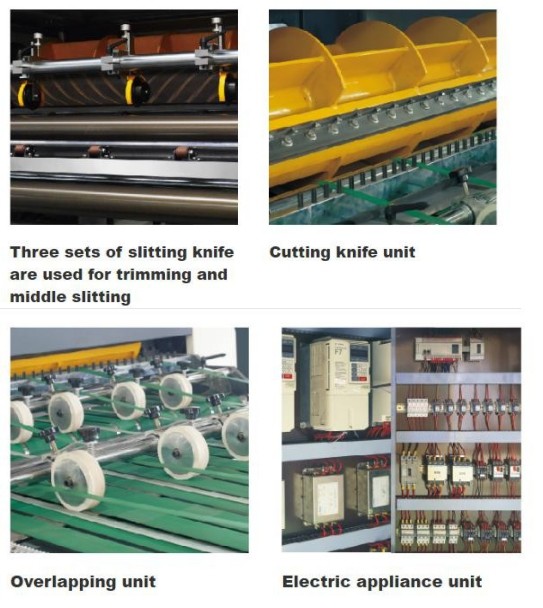

★☆★ Standard Configuration ★☆★

1. High-precision single knife cutting machine

2. Auto Prismatic adjustment system for paper

3. Middle slitting and waste collection paper system

4. Automatic counting and label inserting equipment

5. Paper transporting equipment

6. Automatic paper trimming and collecting machine

7. Electrical controlling system

8. Driving motor system

9. Accessory by machine

10. Double arm oil pressure shaftless mill roll stand

11. Equipment of electrostatic elimination

12. Automatic directing and paper tension controller

13. Equipment of automatic vacuum

14. Operation system: LCD panel by operator

15. Main drive system: AC servo motor

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

★☆★ Producing And Packaging ★☆★

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

★☆★ Certificates ★☆★

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

★☆★ FAQ ★☆★

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: What is your warranty for the CTPs ?

A: Three years' laser head and main spare parts for the CTPs, one year for the processor.
If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.

Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
