Name: Low Chemistry CTP Offset Printing Plate Eco Friendly 405nm
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-V
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Exposure Energy: 50-60uj/ Squre Centimeters

Length Of Run (Impressions): Unbaked: 200,000 Impressions; Baked:500,000 Impressions(dependent Upon Image Resolution, Press, Press Chemical, Ink And Paper Conditions)

Resolution: 150lpi (2-98%), Under1800dpi, 25um Line Can Be Produced.

Plate Type: Low Chemistry Violet Plate, Negative Printing

Substrate: Electro Chemically Grained And Anodized Aluminum

Maximum Short Grain Width: Maximum Width 1320 Mm

Spectral Sensitivity: 405 Nm

Brush Speed: 100 Rpm

Highlight:

405nm Offset Printing Plate

Eco Friendly CTP Offset Printing Plate

Low Chemistry CTP Offset Printing Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-V

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 1,000,000 Sqm Per Year

Gallery

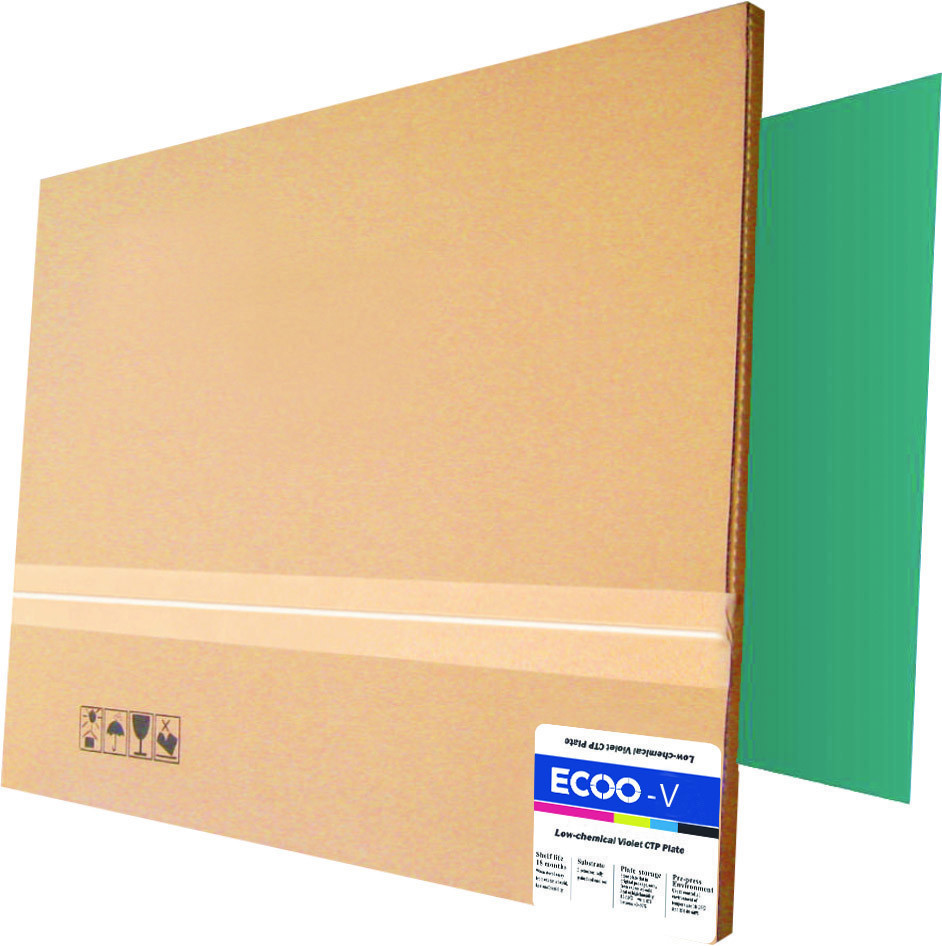

Low Chemistry CTP Offset Printing Plate Eco Friendly 405nm

Product Description

Newspaper Printing Plate Low Chemistry Violet Offset Printing Aluminum Plate

EcooGraphix Low-chemical Violet Plate Ecoo-V can be used for newspaper printing. It is an environmentally friendly product. Compared with a normal Violet CTP plate, Ecoo-V keeps original photosensitive features and printing compatibility.

Specification

Model	ECOO-V
Plate Type	Low chemistry violet plate, negative printing
Application	Newspaper Printing
Substrate	Electro chemically Grained and Anodized Aluminum
Gauge	0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1320 mm
Developer	Developing gum
Length of Run	Unbaked: 200,000 impressions; Baked: 500,000 impressions(dependent upon image resolution, press, press chemical, ink, and paper conditions)
Plate setters Capability	All the main brands of violet CTP in the market, have laser power of no less than 30 mw
Aluminum	Standard 1050 Alloy
Exposure energy	50-60 μj/ cm²(based on plate setter and developing condition)
Developing time	20±3 sec
Developing Temperature	28±2 ºC
Spectral Sensitivity	405 nm
Resolution	150lpi (2-98%), under 1800dpi, 25μm line can be produced.
Preheat	95-121 ºC
Brush Speed	100 rpm
Shelf life	12 months under recommended storage conditions
Storage and handling	Store plates flat in their packaging, away from excessive cold, heat, or high humidity. Recommended condition is: temperature 15-28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m' Open the box under the yellow light. Sealed the box with remained plate to avoid moisture.

Features

Eco-Friendly: Our plates are treated with a low pH finisher during washout, reducing chemical consumption and liquid waste.

Stable Developing Performance: Compatible with most brands of violet plate developers and less sensitive to the pH value of the finisher.

Lower Investment and Maintenance Cost: Can work with a simplified processor, eliminating prewash, post-rinse, and gumming steps from conventional processors.

Higher Run Length: The outer protective layer shields the sensitive layer from damage, allowing for more impressions per plate. Low Chemistry CTP Offset Printing Plate Eco Friendly 405nm 0
