ECOO-T1400FA Shaftless Hydraulic Loading Thermal Paper Slitting Rewinding Machine

1set
MOQ
Negotiable
Price
ECOO-T1400FA Shaftless Hydraulic Loading Thermal Paper Slitting Rewinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max Machine Speed: 300m/min
Max.Unwinding Width: 1600mm
Application: Plastic Film (PVC,OPP,PET, CPP), Paper, Glass Paper, Aluminum-foil Paper, Aluminum Foil, Adhesive Sticker
Max. Load Capacity: 3ton
Weight: 4000KGS
Overall Dimension: 3100*2100*1900mm
Condition: New
Sea Port: Shanghai
Max Rewinding: 300mm
Highlight:

Shaftless Hydraulic Loading Slitting Rewinding Machine

,

ECOO-T1400FA Slitting Rewinding Machine

,

Thermal Paper Slitting Rewinding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: ECOO-T1400FA
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: about 20days
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description


Online ATM POS Thermal Paper Slitting and Rewinding Line Machine


ECOO-T1400FA

EcooGraphix T-1400FA is ideal for slitting various ultra-large coiled materials including plastic films (PVC, OPP, PET, CPP), paper, glass paper, aluminum-foil paper, aluminum foil, adhesive stickers, non-woven fabrics, and other materials, ensuring precise slitting and rewinding.



Features:

1) SIEMENS PLC control system and touch screen provide an intuitive parameter display for easy setup. Simply input roll diameter, material thickness, and initial tension, and the machine operates automatically.

2) The shaftless hydraulic loading system supports a maximum load capacity of 3 tons.

3) Unwinding tension control facilitated by a 20 kg/m2 electromagnetic brake.

4) CNC processed and heat-treated foothold wall panel ensures no deformation over time.

5) Direction-adjustable balancing roller in the unwinding section maintains tight contact with the entire web.

6) Dynamic/static balancing transmission rollers ensure smooth operation.

7) Upper circular knives fixed by screws and lower circular knives fixed by aluminum spacer guarantee cutting precision.

8) Automatic tucker conveniently tucks the tail, facilitating quick rewinding.

9) The load cell sensor and automatic tension controller maintain constant tension throughout the operation.

10) The automatic meter counter stops the machine when the preset length is reached.

11) Banana roller prevents overlapping issues during operation.

12) Equipped with an emergency switch for safety.

13) Web guiding facilitated by a CCD digital camera sensor or photocell, ensuring precise alignment.



2Main Parameters:

Model Ecoo-1400FA
Max. Parent Web Width 1400mm
Max. Parent Web Diameter 1200mm
Max. Rewinding Diameter 300mm
Min. Slit Width 15mm
Max. Machine Speed 300m/min
Torque 100Nm
Unwinding Type 3” air expanding shaft
Rewinding Shaft 0.5”, 1” are available (or as your request)
Power 20KW
Voltage 3 phase, 380V, 50Hz
Weight 4000kg
Dimension 5500*2200*1880mm

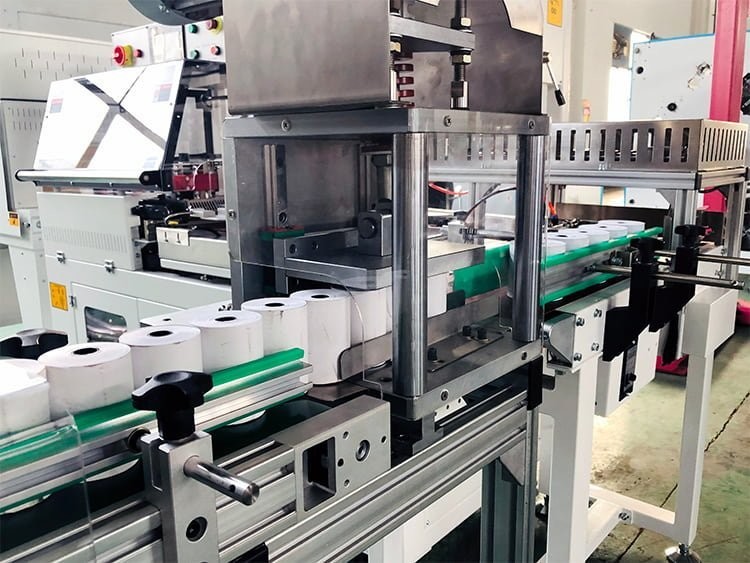

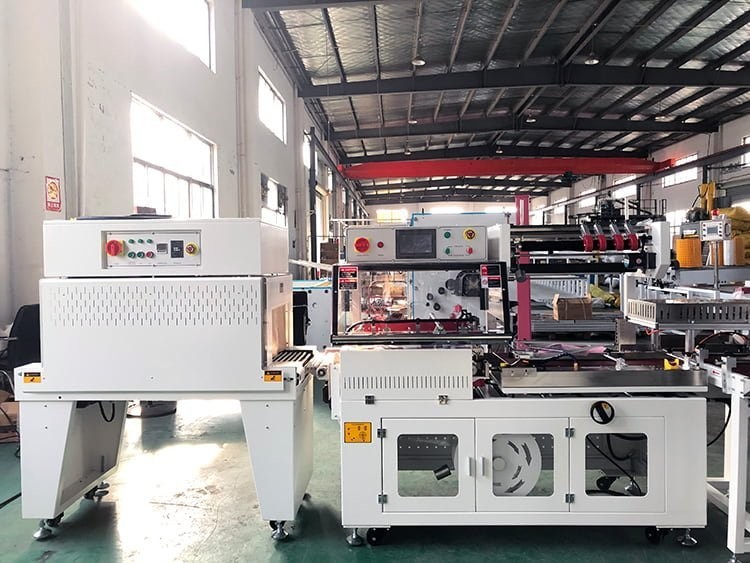

Ecoo-1400FA enables seamless thermal paper production from core feeding to roll packing, streamlining the process into a single operation.



With Ecoo-1400FA, you can effortlessly produce 23,000 to 35,000 pieces of 57mm x 50mm till rolls within 8 hours, without the need for a dedicated operator.



To provide a comprehensive understanding of the newly released Ecoo-1400FA automatic thermal paper production line, we'll break down its operation step by step. You can view the demo video on YouTube for reference.



Core feeding is automated using an automatic core feeder. Simply place the plastic core in the bowl beforehand, and the core feeder will autonomously push it onto the core staging conveyor.

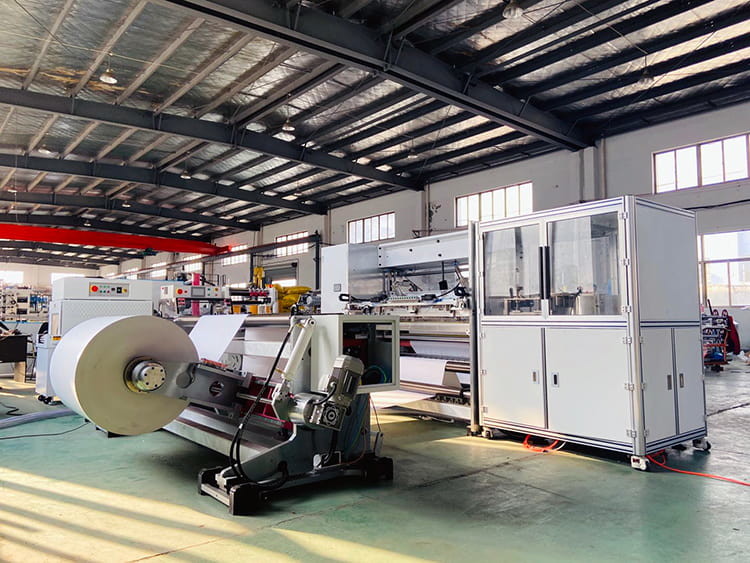

Unwinding section

- 3”(76mm)air expanding rewinding shaft
- Hydraulic automatic lift-up loading system
Ultrasonic correction to get the very high precision
- Electromagnetic Brake from Taiwan
- Fully automatic tension controller
Balance Roller which used to adjust the Material Tightness

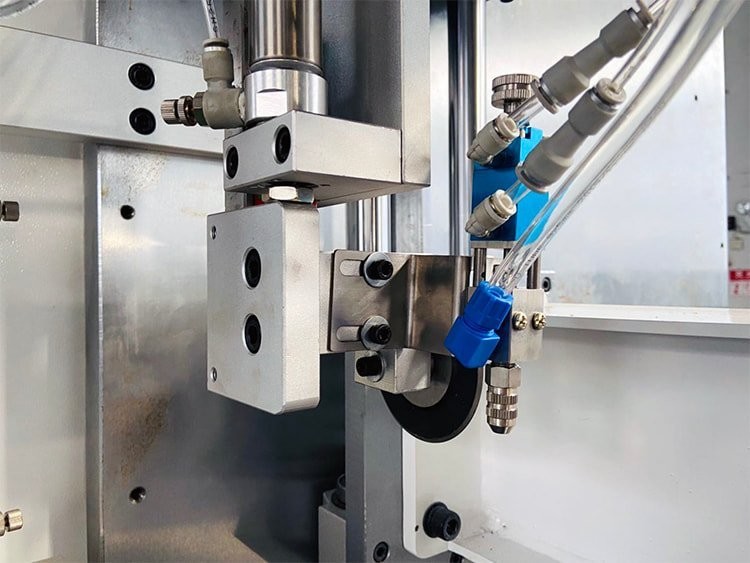

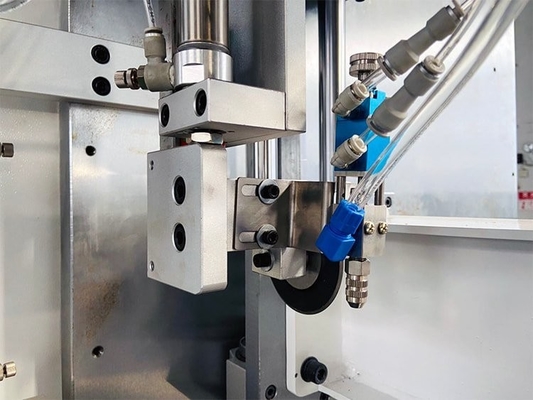

Slitting Section

- Choices of Razor cutter or Disc cutter
- Disc Cutter Assembly adopt the cam self-locking
- Cutter with adjustable and moveable blade base.
- Meter counter
NIP Roller which controller by main motor.

Rewinding Section

- 3”air expanding rewinding shafts
- Center Rewinding technology
-  Pressure Arm
- Electromagnetic Clutch from Taiwan

Controlling Section

- Inovance PLC & HMI
- All the parameters are displayed on the  monitor
- Low voltage electrical appliances all from Schneider

Trimmed Waste Edge -Edge Waste Blower with Expulsion Tube
Optional

- 6'' and 12” Unwinding shafts
- Shaftless type Unwinding Stand.
- Friction Differential Shaft for rewinding.
- Ultrasonic type Edge Position Control (EPC)
- Safety guard for the slitting device.
- Emergency Switches on the 4 corner of machine.
