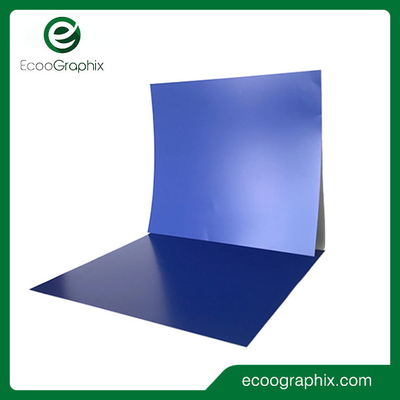

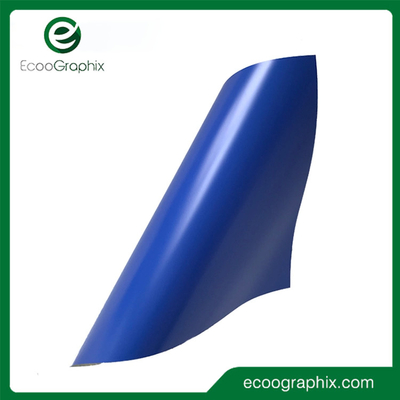

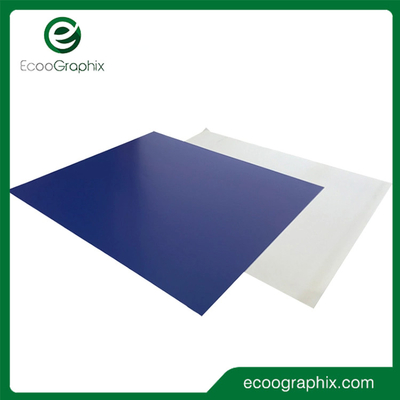

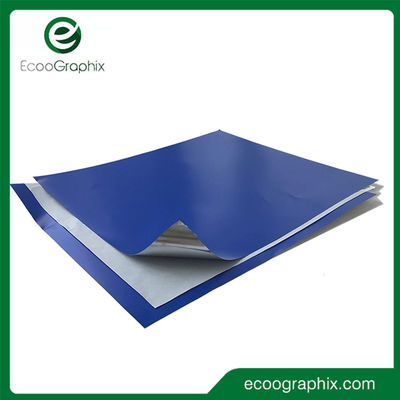

ECOO-CTCP-ES plate is uniquely designed for UV-sensitive emulsion coating for UV-CTP plate setters. A great transformation from the traditional PS plate, CTCP is more cost-effective without the films and rinsing materials required.
It allows the printers to fully perform the advantages of PS plate without worrying about losing the image quality during plate making. In addition, CTCP saves the time for hand-imposition.
| General Information | |
| Plate Model | ECOO-CTCP-ES |
| Plate Type | Positive CTCP Plate(Single Layer) |
| Application | High-quality commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Gauge | 0.15,0.20,0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Run | Unbaked: 80000 to 100,000 impressions; Baked: Over 100000 impressions |
| Exposing | |
| Plate setters | Luscher , Basysprint, Cron, EcooGraphix UV series CTCP machine |
| Exposure energy | 50 - 70 mJ/cm² |
| Spectral Sensitivity | 400 - 430 nm - UV Laser |
| Resolution | 2 - 99% LPI 200 |
| Coating | Blue |
| Photosensitive Wave Length | 405nm |
| Developing | |
| Processor | All the kinds of Brands. |
| Developer | Any CTCP plate developer or our developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handling | |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |

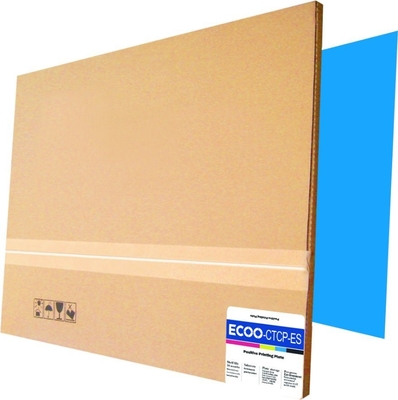

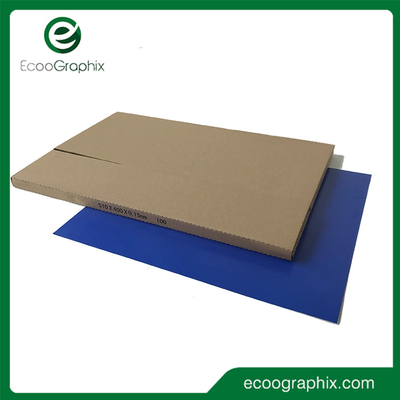

| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
Q1: Can I get the sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
