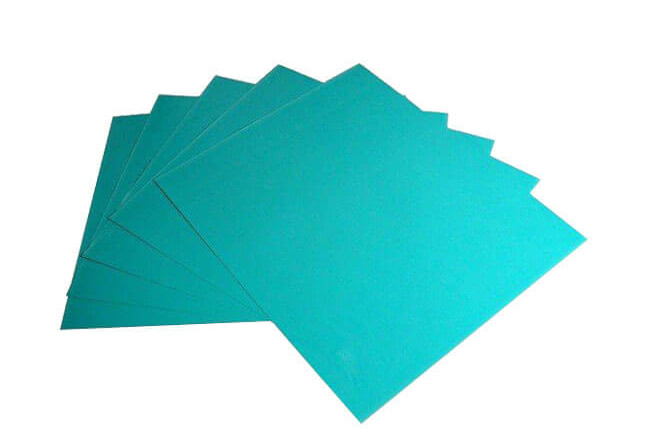

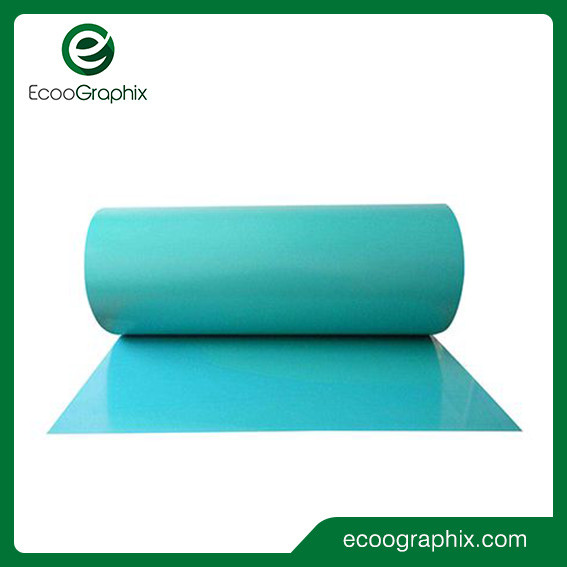

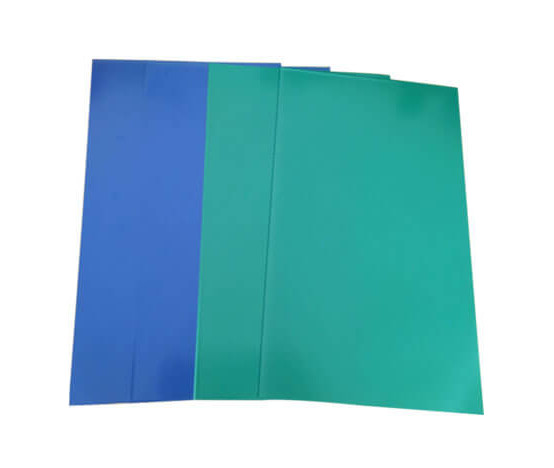

EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing.
Unique production technology and high quality materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
Excellent resolving ability. Our photosensitive coating is made up of top photographic emulsion and resin, which is of great alkaline resistance, stability and high sensitivity.
Superior pressrun ability. Anodic-oxidation layer is of the superior durability, good chemical resistance for long runs and great printing reliability.
Sustainable Ink-water Equilibrium. We use diazo phtosensitive resin matched with aluminum oxide film, speeding up the ink-water equilibrium procedure.
Our PS plate is compatible with most positive plate developers and processors on the market.
Multiple layer grain structure not only ensures the printing quality, but also ensures its long-term stability.
^^Specification Of PS Plate^^
Model: ECOO-PS
Plate
Type PS Plate
Application
Commercial and newspaper printing
Substrate
Electro chemically Grained and Anodized lithographic Aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1280 mm
Power of light
3,000 - 5,000 w
Length of Run
Unbaked: 50,000 to 100,000 impressions
Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
Processor
All brands or Manual
Aluminum
Standard 1050 Alloy
Developing time
20-30 sec
Spectral Sensitivity
320 - 405 nm
Resolution
1-99% @ 300LPI
Image Color
Green
Developer
Any positive plate developer or our own developer
Processing temperature
20-25ºC
Processing Speed
0.80 - 1.20 m/min
Safelight
Handle under yellow safe light(UV free)
Shelf life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat and humidity
| General Information | |
| Plate Model | ECOO-PS |
| Plate Type | Positive PS Plate/ Conventional Analog Plate |
| Application | Commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Green |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Press Runs | Unbaked: 50000 to 80,000 impressions Baked: Over 100000 impressions |
| Exposing | |
| Power of light | 3000 - 5000 W |
| Exposure energy | 80 - 180 mJ/cm |
| Resolution | 2 - 98% LPI 200 |
| Photosensitive wave length | 320 - 405nm |
| Developing | |
| Processor | All the kind Brands or Manual |
| Developer | Any Positive plate developer or our own developer |
| Processing temperature | 20 - 25°C |
| Developing time | 20 - 30 sec |
| Storage and handling | |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
