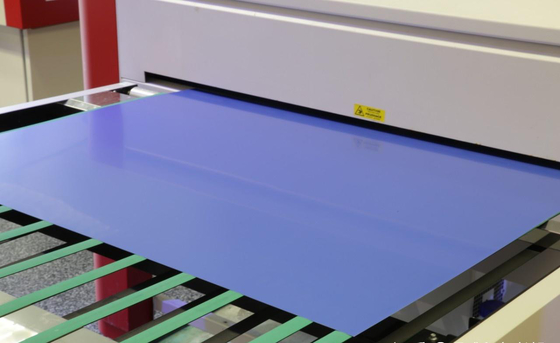

EcooGraphix Thermal CTP Plate is able to meet various requirements of high grade commercial and newspaper printing.
It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length.
Plate Specification
Type: Positive Thermal Plate
Use: Commercial Color Printing, package Printing, Books and News Printing
Model: ECOO-ED
| General Information | |
| Plate Model | ECOO-ED |
| Plate Type | Positive Thermal CTP Plate(Double Layer) |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Two-layer system, IR sensitive, positive acting |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Press Runs | Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions |
| Exposing | |
| CTP Plate Making Machine Plate setters |
Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mJ/cm² |
| Spectral Sensitivity | 800-850 nm - Peaks 830nm |
| Resolution | 1-99% at 200 LPI |
| Image color | Blue |
| FM capability | 20 micron stochastic |
| Image color | Blue Green to Pale Green |
| Developing | |
| Processor | All the kind Brands. |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handling | |
| Safelight | Daylight handling |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity. |
| CTP model data | Kodak trendsetters |
LOTTEM 400(TH1.7) |
MAGNUS 400 | Screen 8600S |
| Laser power | 13-15W | 270-280mw | 17-19W | 70-80% |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus/Zoom | Focus/Zoom | Focus/Zoom | Focus/Zoom |
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

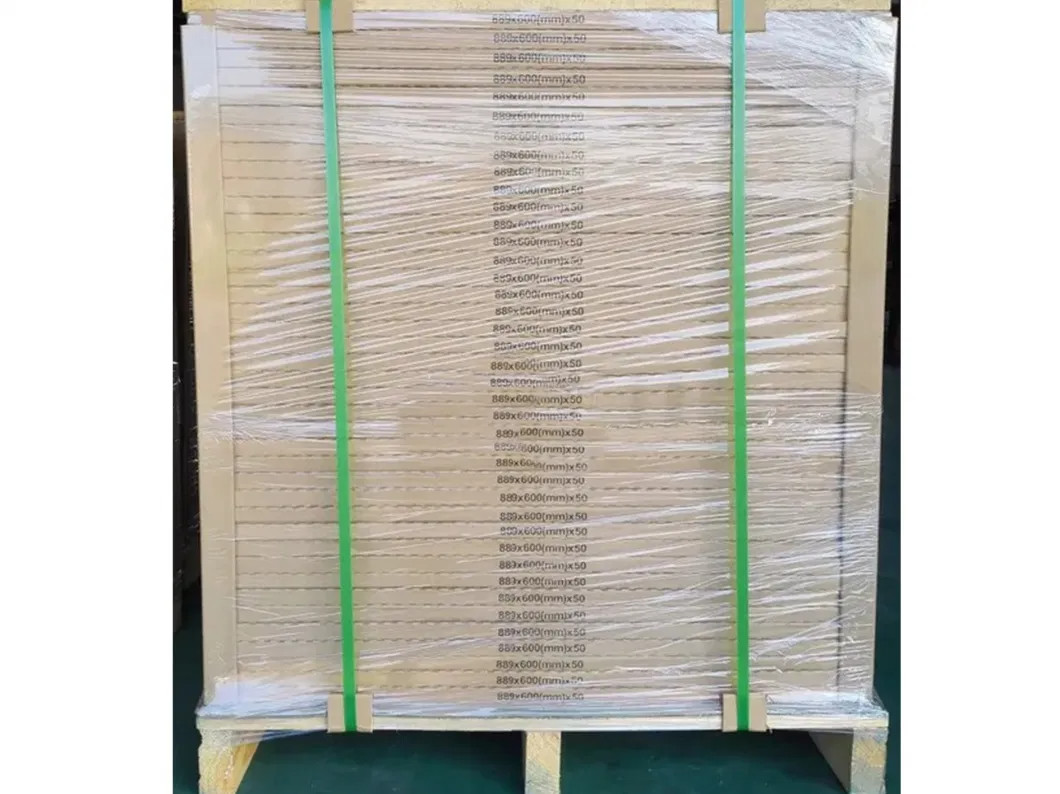

Packing & Delivery of Double layer Thermal CTP Offset Printing Plate

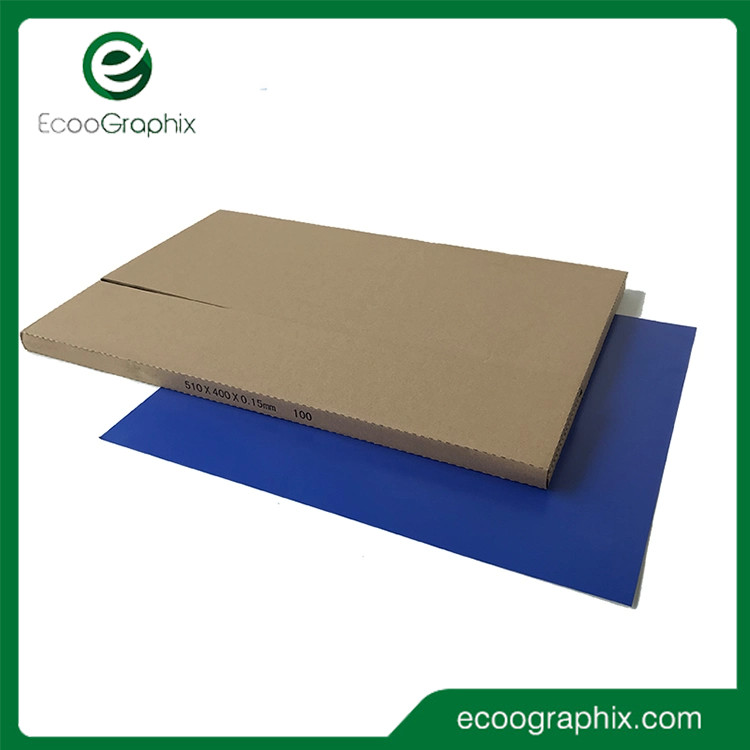

--0.15mm 100 pieces/carton, 50 cartons/pallet
--0.30mm 50 pieces/ carton, 50 cartons/pallet
