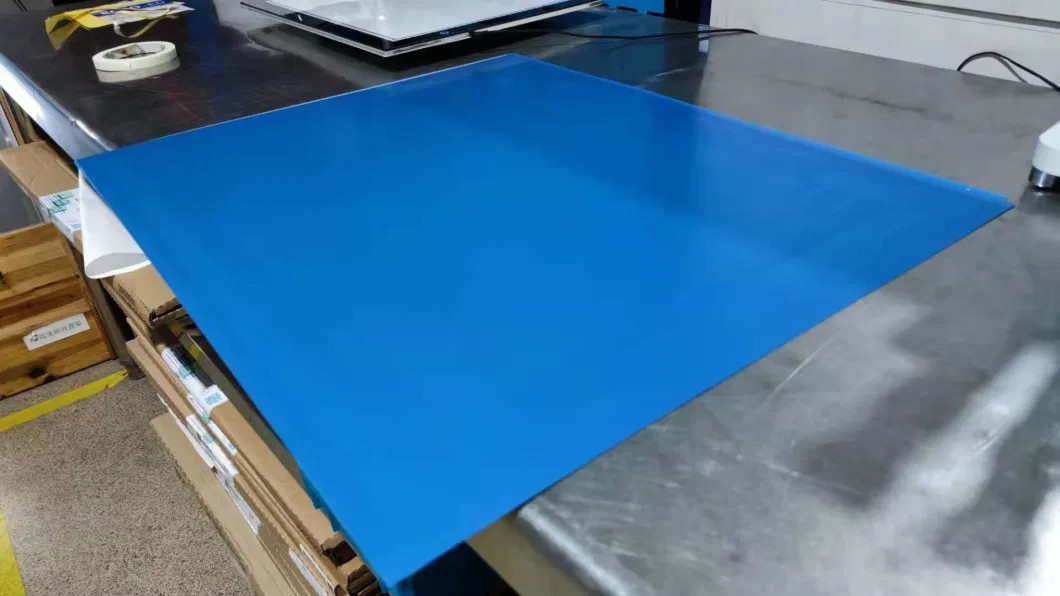

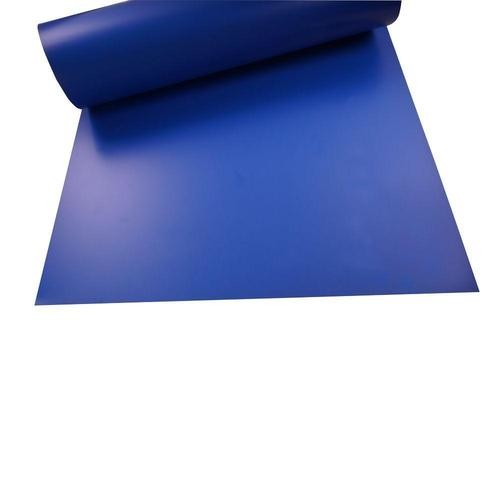

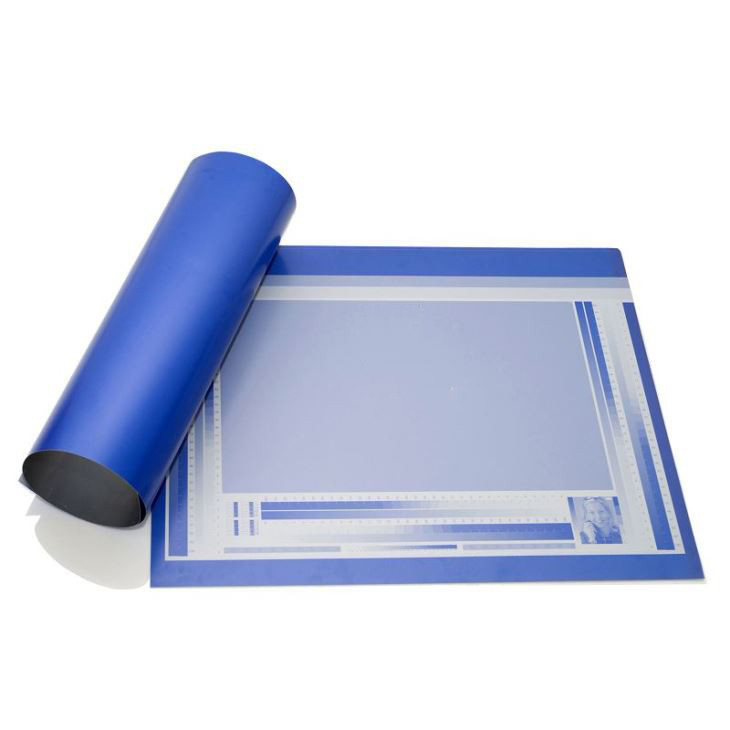

Positive Aluminum Offset Printing Double Thermal CTP Plate
EcooGraphix Thermal CTP Plate is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length.
ECOO-ED can be used for both UV ink and ordinary ink. It has the following characteristic properties such as high sensitivity, excellent dot reproduction, wide processing latitude, stable performance. It's compatible with all the dominant platesetters and processors in the market.
Specification
| General Information | |
| Plate Model | ECOO-ED |
| Plate Type | Positive Thermal CTP Plate(Double Layer) |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Two-layer system, IR sensitive, positive acting |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Press Runs | Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions |
| Exposing | |
| CTP Plate Making Machine Plate setters |
Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mJ/cm² |
| Spectral Sensitivity | 800-850 nm - Peaks 830nm |
| Resolution | 1-99% at 200 LPI |
| Image color | Blue |
| FM capability | 20 micron stochastic |
| Image color | Blue Green to Pale Green |
| Developing | |
| Processor | All the kind Brands. |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage and handling | |
| Safelight | Daylight handling |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity. |
1. How long is the lead time?
The lead time is normally 25 days.
2. Do you offer free plate samples?
Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee to collect.
3. How do you guarantee stable quality?
There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing.
4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
Yes. CTP machine, processors, developers, ink, blanket and some common fihishing machines are also within our category.
5. Payment term
Normally, 30% deposit, 70% before shipping.
