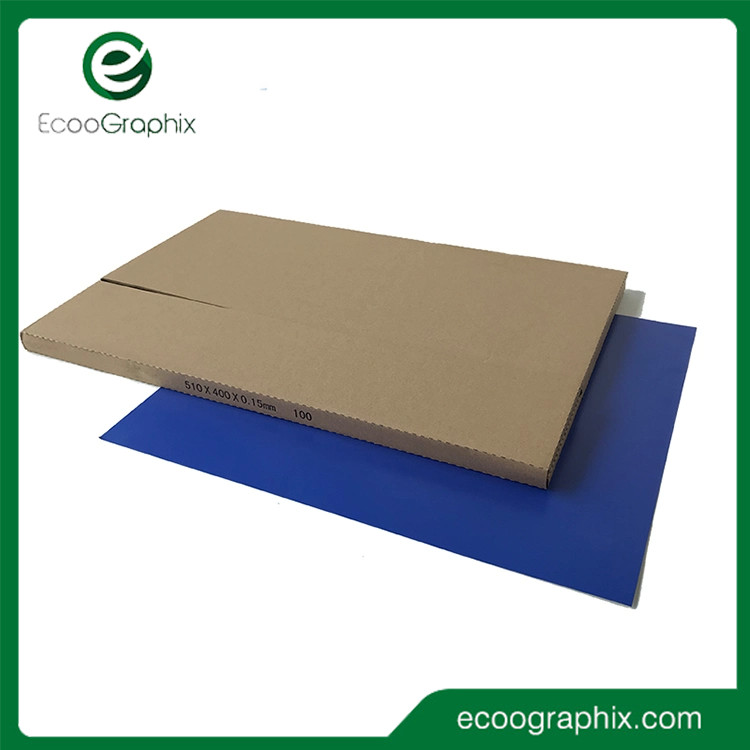

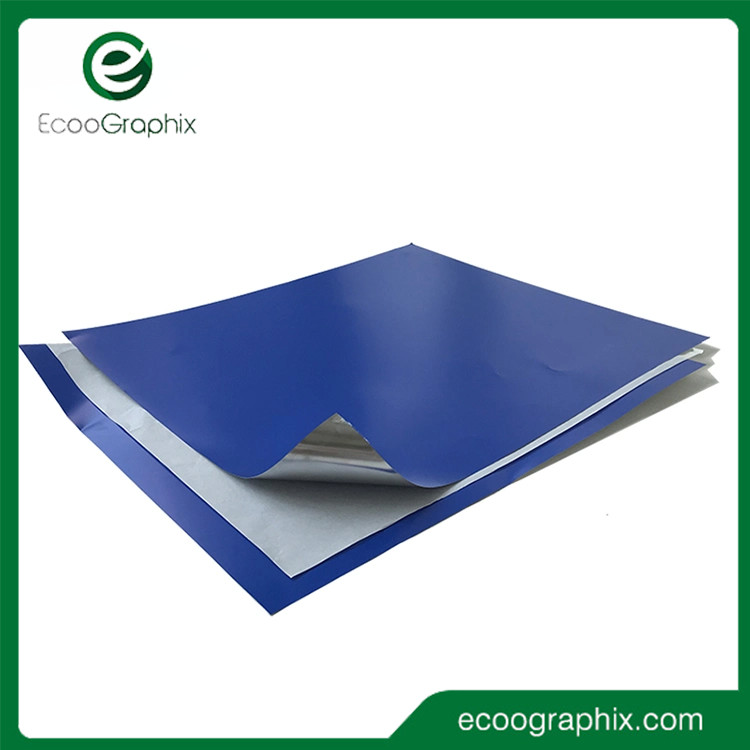

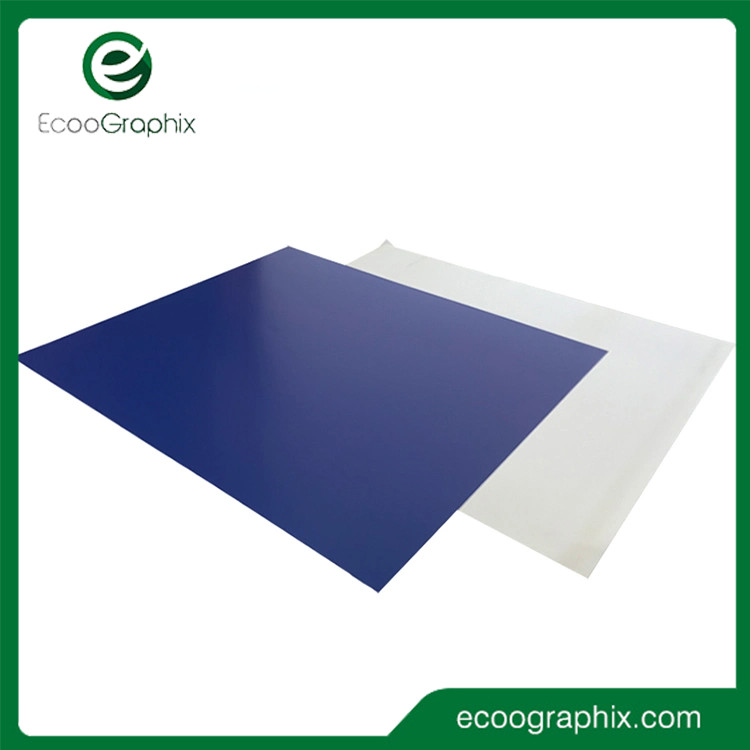

UV Ink Resisted Offset Printing CTP CTCP Plate Wide Developing Tolerance

Model
ECOO-CTCP-D

Plate Type
No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing

Application
Newspaper printing, commercial printing, and package printing

Substrate
Electrochemically Grained and Anodized Aluminum

Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1350 mm

Developer
Any positive plate developer or our own developer

Length of Run
200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked.

Plate setters Capability
All the main brands violet CTP in market, laser power no less than 30 mw

Aluminum
Standard 1050 Alloy

Exposure energy
50-65uj/cm²(based on plate setter and developing condition)

Developing time
20±3 sec

Developing Temperature
28±2ºC

Spectral Sensitivity
405 nm

Resolution
1-99% @ 200 LPI & 20 uFM

Shelf life
12 months under recommended storage conditions

Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat.

Product highlight
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

Company Profile

EcooGraphix has established international distribution and service networks in over 50 countries worldwide. Significant market successes have been achieved in countries such as the USA, Canada, Mexico, Chile, UK, Hungary, Turkey, South Africa, Greater Africa, and China. With 100% customer satisfaction and continued expansion of our customer base worldwide over the past 12 years, EcooGraphix is steadily gaining international market share and recognition. EcooGraphix has teams of internationally experienced technical experts and professionals drawn from the Printing Industry. We offer tailored-made CTPs and plate solutions for Commercial, Packaging and Newspaper Printers as well as Output Centers with non-stop technical support. With deep and profound knowledge of global Printing market, EcooGraphix is well positioned to become your choice of supply for best quality CTP machines and plate products.
