Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating

1000SQM

MOQ

Negotiable

Price

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Aluminum Offset Printing Thermal CTP Plate 0.15-0.30mm Double Coating

Material: Electro Chemically Grained And Anodized Lithographic Aluminum

Aluminum Alloy: Standard 1050 Alloy

Usage: High Quality Commercial And Newspaper Printing

Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm

Length Of Run: Unbaked: 80000 To 100,000 Impressions

Resolution: 2 - 99% LPI 200

Shelf Life: 12 Months Under Recommended Storage Conditions

Highlight:

0.15mm CTP Thermal Plate

,

Aluminum Offset Printing Thermal CTP Plate

,

Double Coating Thermal CTP Plate

Basic Infomation

Place of Origin: CHINA

Brand Name: EcooGraphix

Certification: CE, ISO900

Model Number: ECOO-ED

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Pallet

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T

Supply Ability: 2000, 000sqm/Year

Gallery

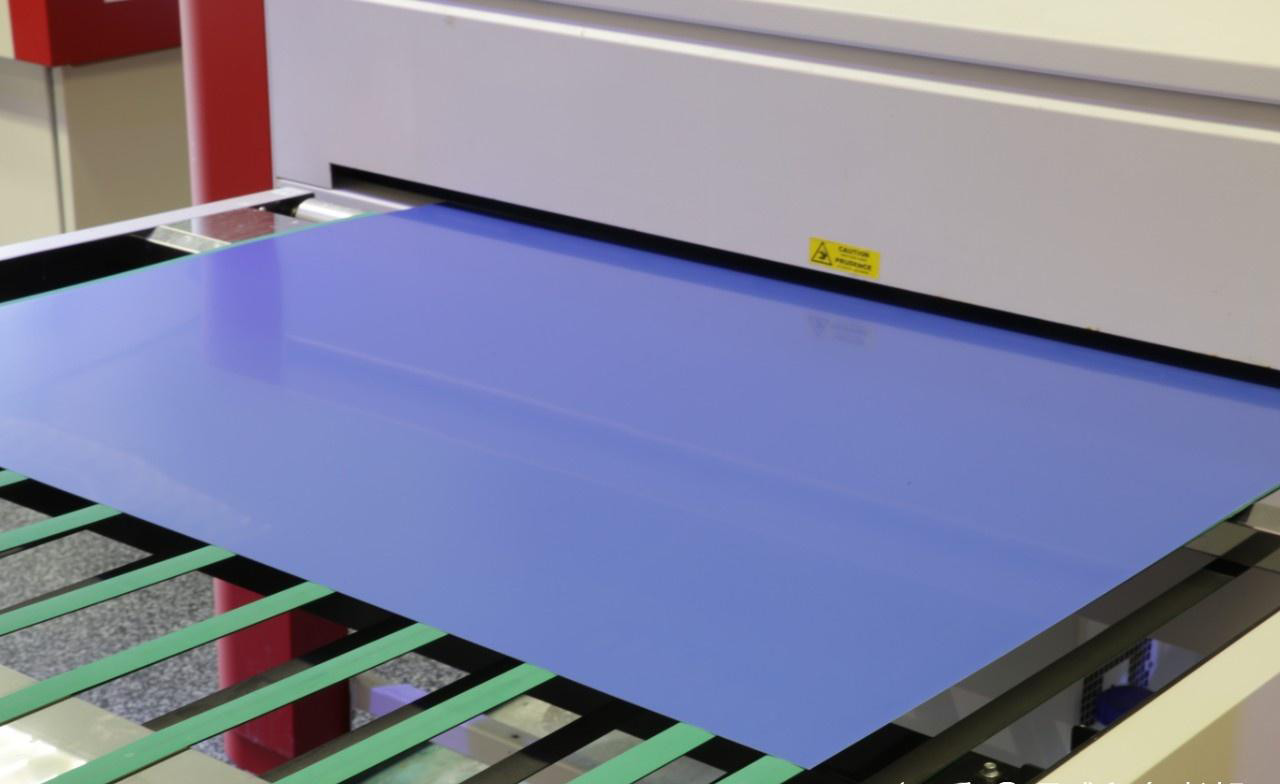

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating

Product Description

0.15-0.30mm Double Coating Aluminum Offset Printing Thermal CTP Plate

Thermal CTP plate is a high-quality printing plate specialized for thermal CTP platesetter. It is directly scanned by 830nm laser controlled by computer and put on press for printing after developing.

ECOO-ED can be used for both UV ink and ordinary ink. It has the following characteristic properties such as high sensitivity, excellent dot reproduction, wide processing latitude, stable performance. It's compatible with all the dominant platesetters and processors in the market.

Plate Features

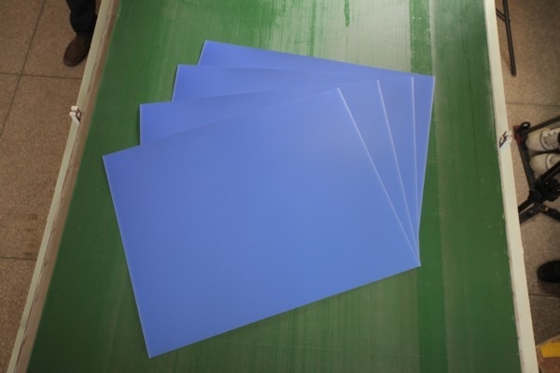

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating 0

1. High sensitivity which could raise platemaking efficiency.
2. Exquisite grains with excellent water-retaining property.
3. Good stability.
4. Extensive adaptablit , could compatible with a broad range brands and types of platemakers, developing.
5. Simple platemaking process, with low cost, high efficiency and low error rate.

Plate Specification

Model: ECOO-ED

Exposure energy required:

110-120 mj/ cm2 (depend on imager type, configuration and resolution)

Resolution:

1-99% @400lpi or 10μ FM stochastic (depend on capability of imaging device)

Spectral sensitivity:

780-850 nm

Run-length:

100,000 impressions unbaked; 50,000 impressions for UV ink applications,300,000 plus impressions baked
(dependent upon image resolution, press, press chemical, ink and paper conditions).

Gauges:

0.15mm, 0.30mm and 0.40mm standard, with 0.20mm and 0.24mm availability in selected regions.

Coating color:

Blue

Safelight:

Daylight handling

Shelf life:

12 months, under recommended storage conditions.

General Information
Plate Model	ECOO-ED
Plate Type	Positive Thermal CTP Plate(Double Layer)
Application	High grade commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Coating	Two-layer system, IR sensitive, positive acting
Gauge	0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs	Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions
Exposing
CTP Plate Making Machine Plate setters	Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries
Exposure energy	110 - 130 mJ/cm²
Spectral Sensitivity	800-850 nm - Peaks 830nm
Resolution	1-99% at 200 LPI
Image color	Blue
FM capability	20 micron stochastic
Image color	Blue Green to Pale Green
Developing
Processor	All the kind Brands.
Developer	Kodak Gold Star or our own developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 - 1.20 m/min
Storage and handling
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length;

while over high/low exposure energy will affect the image quality negatively.

Cartons Of Plate

We make sure our packages are safe enough to transport. We have rich experiences on either sea transportation or other transportations.

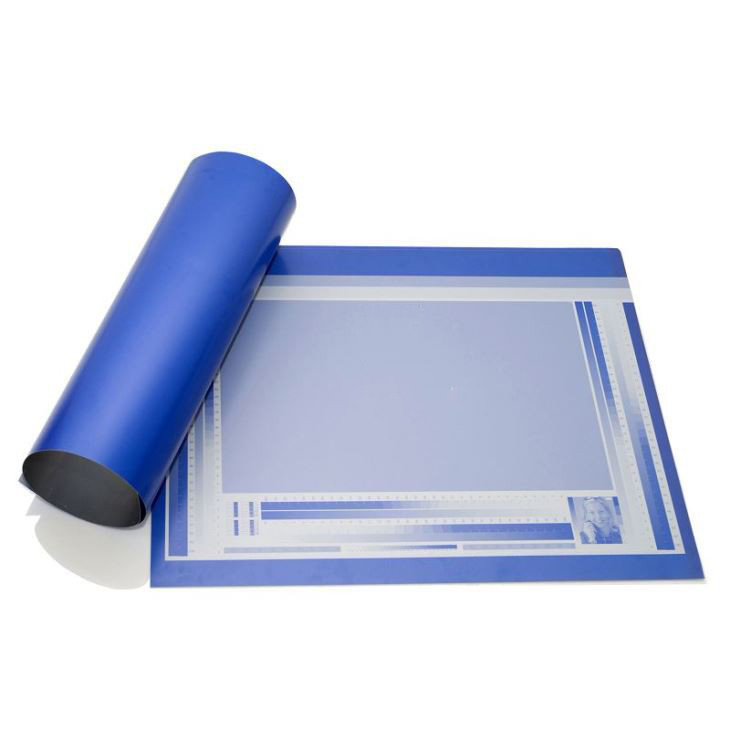

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating 1

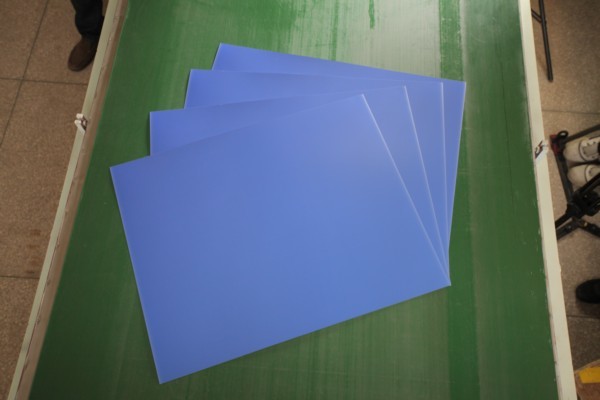

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating 2

Producing Line

Aluminum Offset Printing Thermal CTP Plate 0.15 - 0.30mm Double Coating 3

Workflow

About US

Based in Hangzhou China, EcooGraphix is a leading international CTP and plate provider that places great emphasis on R&D, manufacturing, market development, and technical support. With one of the largest CTP manufacturing facilities and plate production lines, EcooGraphix supplies thousands of printers worldwide with top quality CTP equipment and plates.

Our mission is to become a trusted brand and top supplier for Pre-Press and Printing Industry. EcooGraphix's motto is to create the best value for customers, through Professionalism, Innovation, Efficiency, Superior Products, and accountable service.

Since 2010, EcooGraphix Thermal CTP and UV CTP Machines have gained a fine reputation for high-quality engineering and reliability, incorporated with market-leading designs. EcooGraphix Thermal and UV Plates are regarded as one of the world's top brands for quality and consistency.

EcooGraphix has established international distribution and service networks in over 50 countries worldwide. Significant market successes have been achieved in countries such as the USA, Canada, Mexico, Chile, UK, Hungary, Turkey, South Africa, Greater Africa, and China. With 100% customer satisfaction and continued expansion of our customer base worldwide over the past 12 years, EcooGraphix is steadily gaining international market share and recognition. EcooGraphix has teams of internationally experienced technical experts and professionals drawn from the Printing Industry. We offer tailored-made CTPs and plate solutions for Commercial, Packaging and Newspaper Printers as well as Output Centers with non-stop technical support. With deep and profound knowledge of global Printing market, EcooGraphix is well positioned to become your choice of supply for best quality CTP machines and plate products.
