Small Size Laminating Machine With Trimming Cutter
Automatic Flute Laminator
1. Intelligent temperature control, thermally conductive inner steel reel, infrared internal heating.
2. Electric adjustment of single-sided reverse curl function. Electric adjustment of single-sided reverse curl function.
3. Frequency converter speed control, 400W gearbox decelerating motor.
4. Manual pump hydraulic control system, shockproof pressure display gauge.

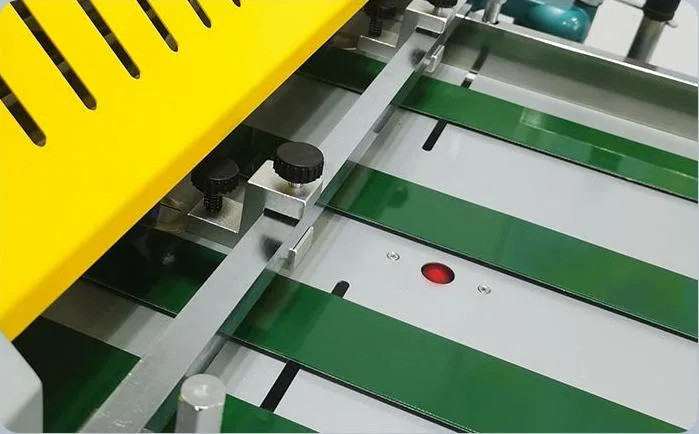

5. Synchronous conveyor belt automatically feeds paper, and the finished product is automatically broken.
6. Equipped with trimming cutter and dotted tooth cutter.
7. Equipped with an inching foot switch to facilitate film channeling.
8. The diameter of the steel roller is 200mm, and the diameter of the lower rubber roller is 150mm.
9. The rubber roller is made of imported non-sticky high temperature resistant silicone rubber.
Specifications
| Laminating Machine | |
| Model | S-720A |
| Max. Laminating Width | 720mm |
| Maximum thickness | 2/7mm(according to custom needs) |
| Laminating Speed | 20-25m/min |
| Roller Diameter | 200/150mm |
| Max. Heating Temperature | 160ºC |
| Preheat time | 15-20 minutes |
| Heating Mode | Infrared heating |
| Heating Power | 3900W/5400W |
| Power Supply | AC100,110,220-240V / 50,60 Hz |
| Motor Power | 400W |
| Weight | Net: 480kgs, Gross: 550kgs |
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certificates
FAQ
1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.
2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.
3. What is your warranty?
One year for machine.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
