1450*1300mm High Precision Automatic Flute Laminator For Packaging
✔ Component

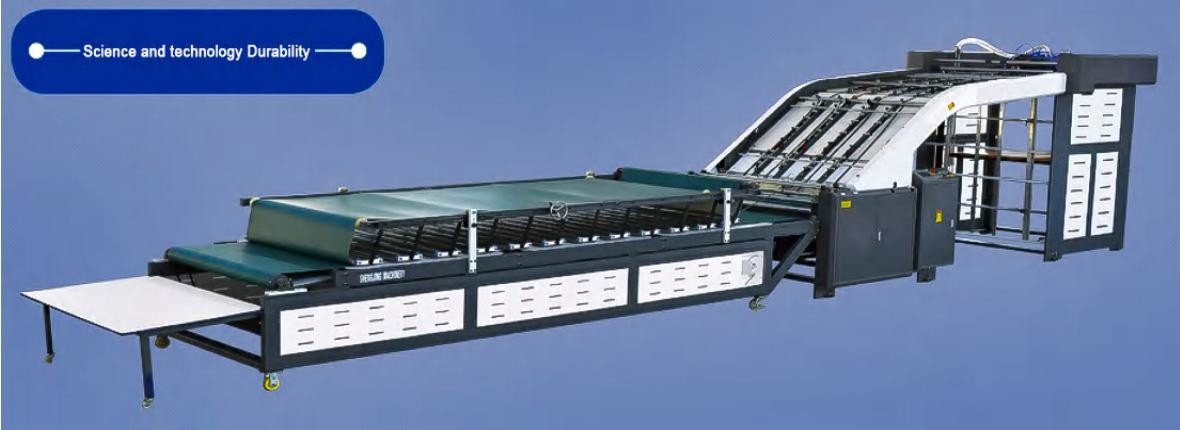

ECOO 1450 automatic flute laminator mainly consists of six parts: automatic face paper feeding section, face paper conveying section, automatic bottom paper conveying section, cyclic gluing section, positioning and pre-pressing section and pressing section. It suits to laminate the printed paper to the corrugated board(3ply), with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company.
✔ Product Details
✔ Specification
Model
ECOO 1450
Max. Paper size(mm)
1450×1300
Min. Paper size(mm)
400×400
Thickness of face paper(g/m2)
150-500
Bottom paper
A.B.C.D.E flute
Front lay laminating precision (mm)
± 1.5
Mechanical speed (m/min)
110
Laminating efficiency (sheets/h)
0-6000
Power supply
380V 3P 5W 50Hz
Dimension (mm L*W*H)
12000×2300×2950
Weight(kg)
5500
| Model |
ECOO 1450
|
| Max. Paper size(mm) |
1450*1300
|
| Min. Paper size(mm) |
400*400
|
| Thickness of face paper(g/m2) |
150-500
|
| Bottom paper |
A.B.C.D.E flute
|
| Front lay laminating precision (mm) |
± 1.5
|
| Mechanical speed (m/min) |
110
|
| Laminating efficiency (sheets/h) |
0-6000
|
| Power supply |
380V 3P 5W 50Hz
|
| Dimension (mm L*W*H) |
12000*2300*2950
|
| Weight(kg) |
5500
|
✔ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
✔ Certificates
✔ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
