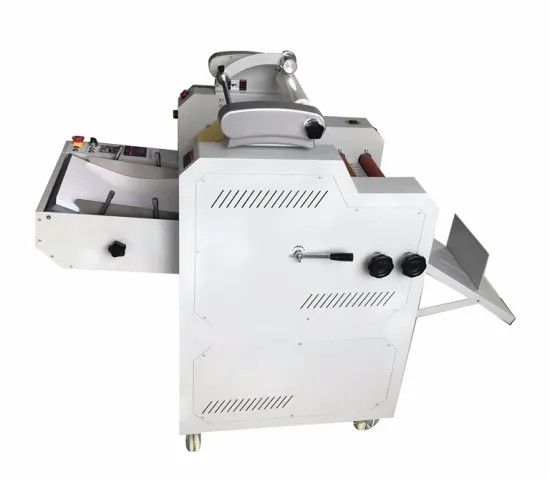

Small Size Laminating Machine With Trimming Cutter
∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡
→→→ Automatic Flute Laminator Features
1. Intelligent temperature control, thermally conductive inner steel reel, infrared internal heating.
2. Electric adjustment of single-sided reverse curl function. Electric adjustment of single-sided reverse curl function.
3. Frequency converter speed control, 400W gearbox decelerating motor.
4. Manual pump hydraulic control system, shockproof pressure display gauge.
5. Synchronous conveyor belt automatically feeds paper, and the finished product is automatically broken.
6. Equipped with trimming cutter and dotted tooth cutter.
7. Equipped with an inching foot switch to facilitate film channeling.
8. The diameter of the steel roller is 200mm, and the diameter of the lower rubber roller is 150mm.
9. The rubber roller is made of imported non-sticky high temperature resistant silicone rubber.
∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡
→→→ Specifications
Laminating Machine
Model
S-720A
Max. Laminating Width
720mm
Maximum thickness
2/7mm(according to custom needs)
Laminating Speed
20-25m/min
Roller Diameter
200/150mm
Max. Heating Temperature
160ºC
Preheat time
15-20 minutes
Heating Mode
Infrared heating
Heating Power
3900W/5400W
Power Supply
AC100, 110, 220-240V / 50,60 Hz
Motor Power
400W
Weight
Net: 480kgs, Gross: 550kgs
| Laminating Machine | |
| Model | S-720A |
| Max. Laminating Width | 720mm |
| Maximum thickness | 2/7mm(according to custom needs) |
| Laminating Speed | 20-25m/min |
| Roller Diameter | 200/150mm |
| Max. Heating Temperature | 160ºC |
| Preheat time | 15-20 minutes |
| Heating Mode | Infrared heating |
| Heating Power | 3900W/5400W |
| Power Supply | AC100, 110, 220-240V / 50,60 Hz |
| Motor Power | 400W |
| Weight | Net: 480kgs, Gross: 550kgs |
∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡
→→→ Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡
→→→ Certificates
∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡ ∧ ≡ ∨ ≡
→→→ FAQ
Q1: What are your main products ? A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on. You can get the equipment and consumables all in one and no worry about the after-sales service from our company. |
Q2: Where is your factory ? A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory! |
Q3: How long is the lead time ? A: The lead time is normally 30 days. We can accelerate for emergency cases. |
Q4: Is there any certification for your machine ? A: Yes, all our machines have been certified by SGS and CE. |
Q5: How long is the warranty period ? A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts. |
Q6: What is your normal payment term ? A: Normally, 30% TT deposit, 70% before shipping, or LC at sight. |
|
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction. |
